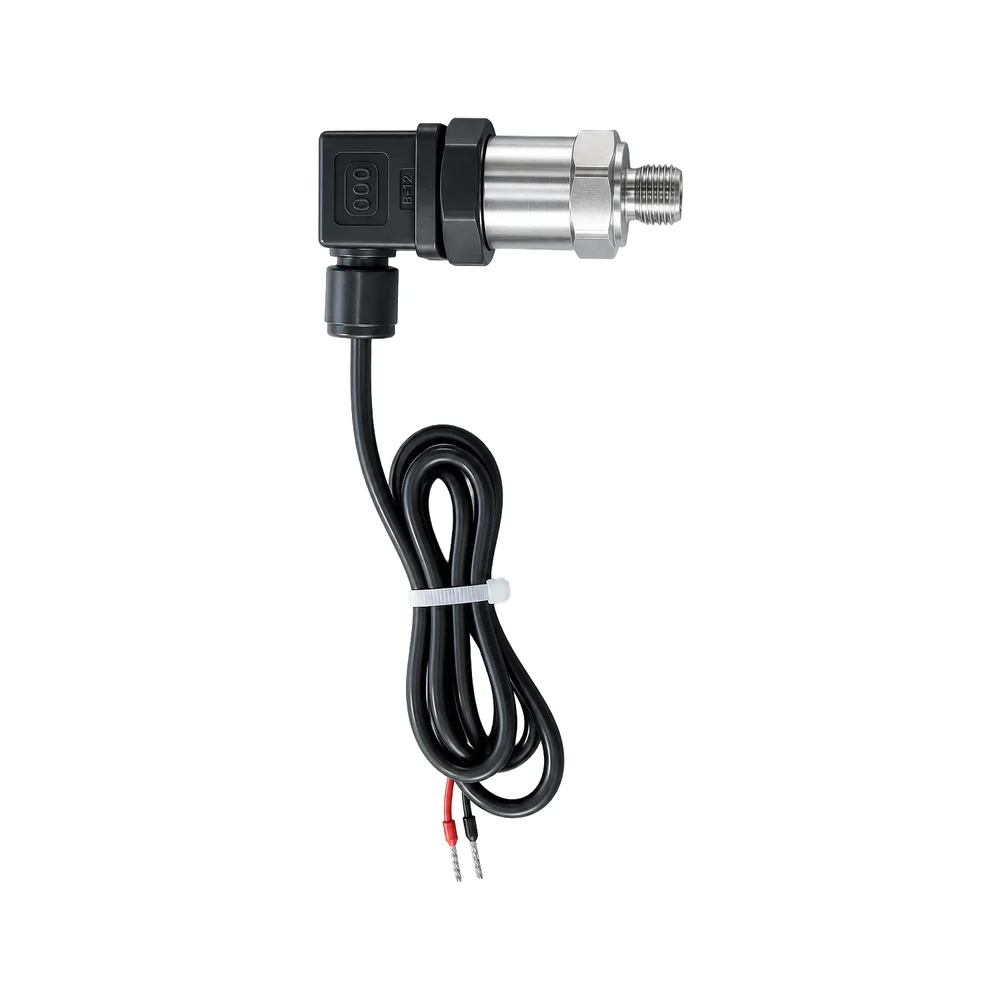

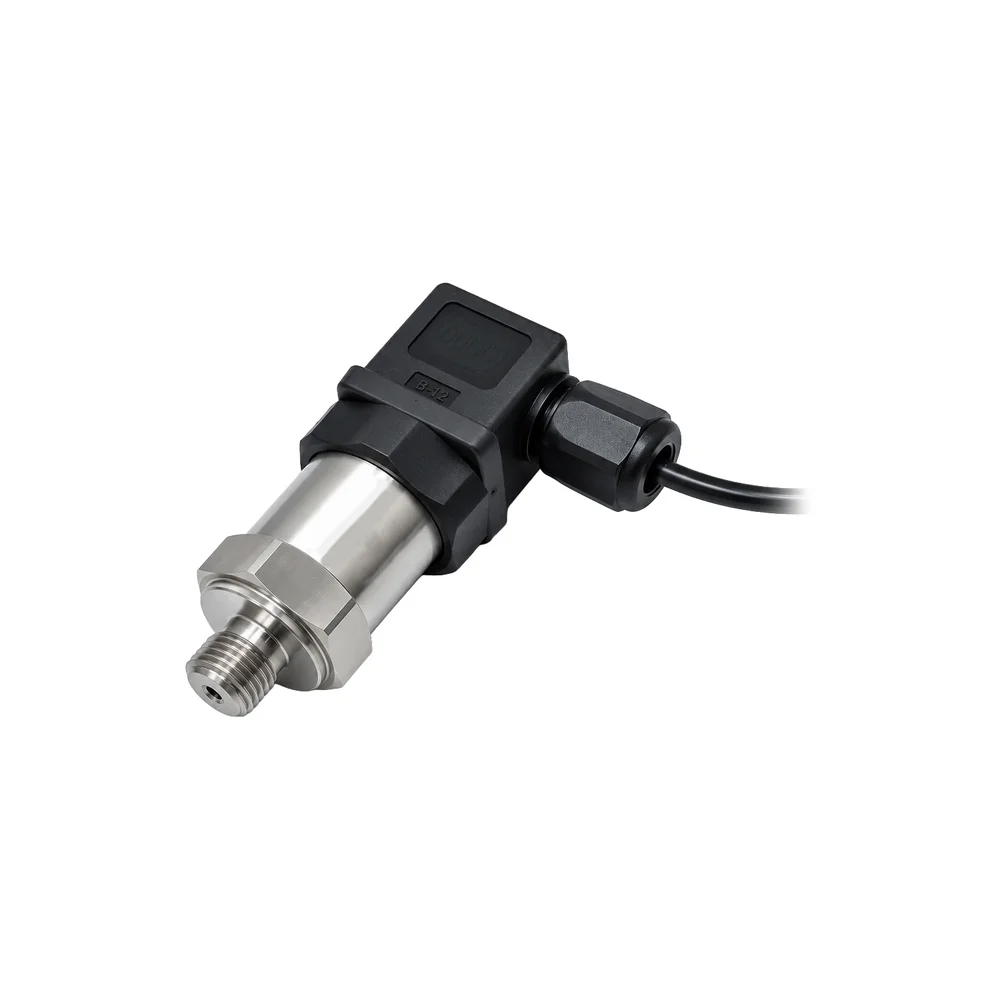

Pro-Range PR15-PA-002 Pressure Transducer 0-0.2 MPa (0-2 bar) - 4-20mA Output, G1/4" Thread
The Pro-Range PR15-PA-002 is a 4-20mA output pressure transducer designed for industrial control systems and PLCs. It provides accurate measurement of fluid and air pressure from 0 to 0.2 MPa (0-2 bar) with a robust G1/4″ threaded port and IP65-rated housing.
Features
- 0 to 0.2 MPa (0-2 bar) pressure measurement range with ±1.0% FS accuracy.
- Standard 4-20mA two-wire output for direct PLC and industrial controller integration.
- Wide 10-32V DC operating voltage range with a nominal 24V DC supply.
- Robust G1/4″ threaded process connection and IP65-rated environmental protection.
- Fast ≤10 ms response time and high overload protection up to 3.0 bar.
Out of stock
The PR15-PA-002 pressure transducer utilizes a high-stability sensing element to convert applied pressure into a proportional 4-20mA current signal. This two-wire loop-powered design simplifies installation and ensures reliable communication over long distances in noisy industrial environments, compatible with standard PLC analog input modules.
Engineered for durability, the sensor features a stainless steel pressure port and housing capable of withstanding pressures up to 4.0 bar burst. Its IP65 rating protects the internal electronics from dust and water jets, making it suitable for use in machinery, pneumatic systems, and process control applications where environmental resistance is required.
Additional Information
| Weight | 0.156 kg |
|---|---|
| Dimensions | 11 × 7 × 3 cm |
