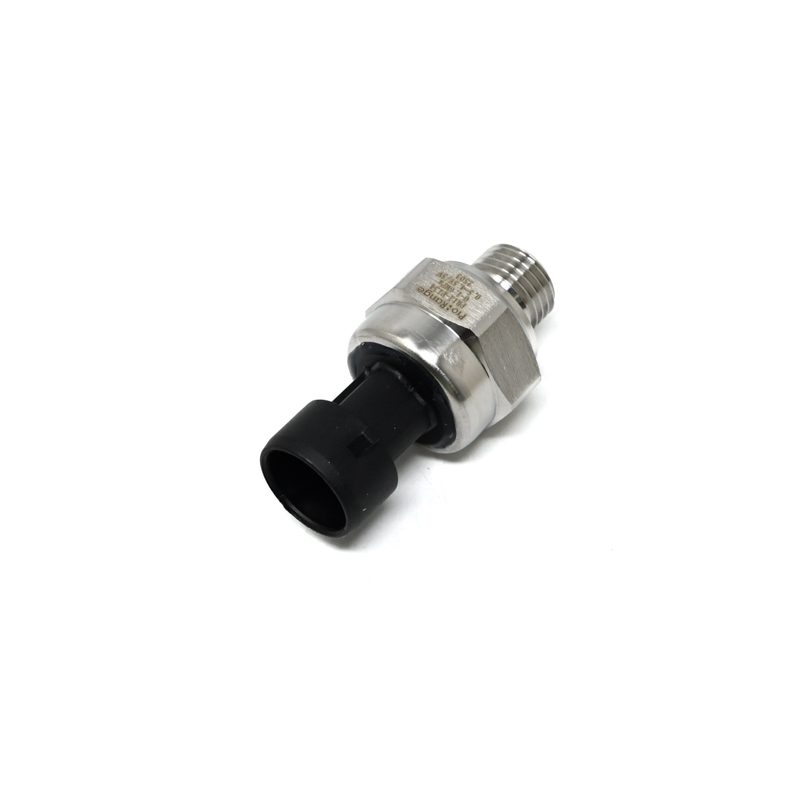

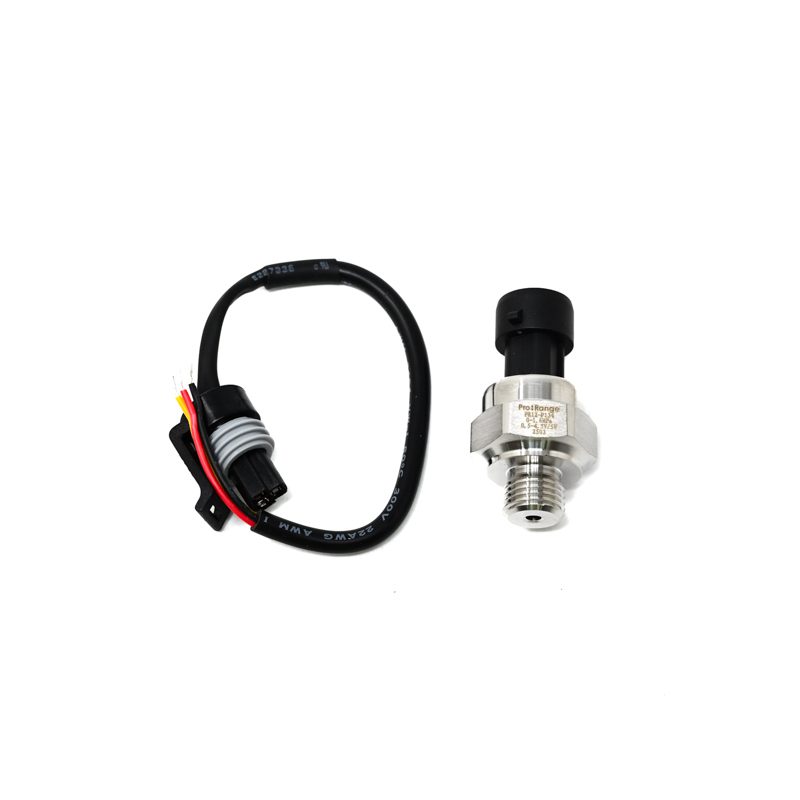

Pro-Range PR12-P134 Pressure Transducer 0-1.6 MPa, 0.5-4.5V Output, G1/4" Thread
The Pro-Range PR12-P134 is a medium-pressure transducer with a 0.5–4.5V analog output, designed for direct integration into industrial PLCs, data acquisition systems, and 5V microcontroller platforms like Arduino. It provides reliable pressure monitoring for fluid and gas systems via its standard G1/4″ threaded port.
Features
- 0–1.6 MPa (0–~232 psi) pressure measurement range
- 0.5–4.5V ratiometric analog output for direct ADC interfacing
- G1/4″ male thread for secure industrial pipe or manifold mounting
- Compact, robust housing suitable for automation and fluid control environments
- Stable performance across a wide operating temperature range
Out of stock
The PR12-P134 pressure transducer utilizes a high-stability sensing element, typically a piezoresistive silicon strain gauge, to convert applied pressure into a precise linear voltage signal. The 0.5–4.5V output span provides a ratiometric signal ideal for 5V analog-to-digital converters (ADCs) found in microcontrollers and industrial controllers, ensuring accurate readings proportional to the supply voltage.
Engineered for durability, the transducer features a robust housing and a G1/4″ threaded stainless steel pressure port, making it suitable for integration into hydraulic systems, pneumatic controls, pump monitoring, and process automation. Its design ensures long-term reliability and minimal drift in demanding industrial environments.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
