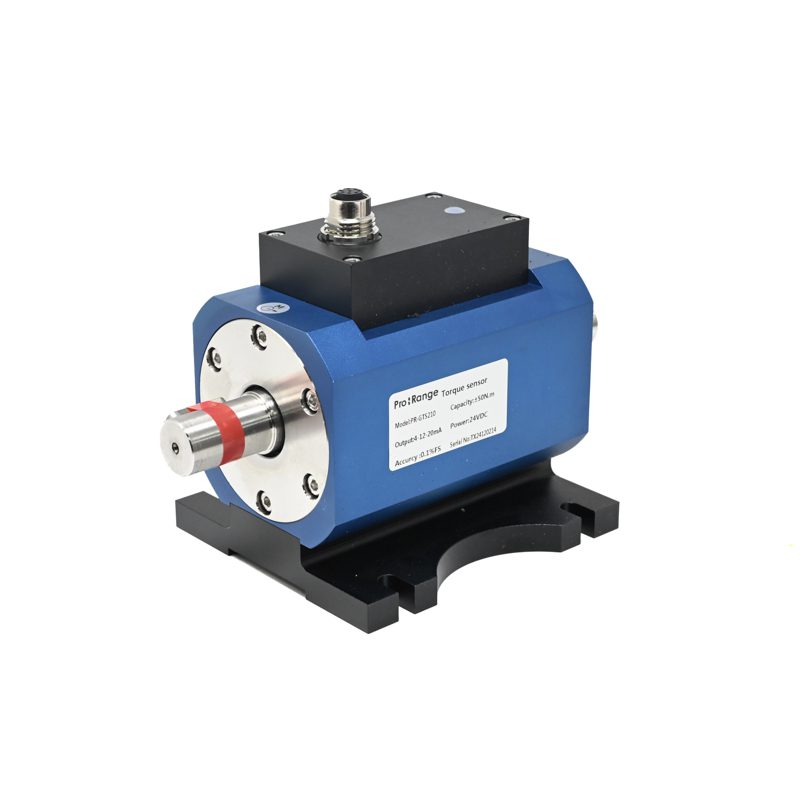

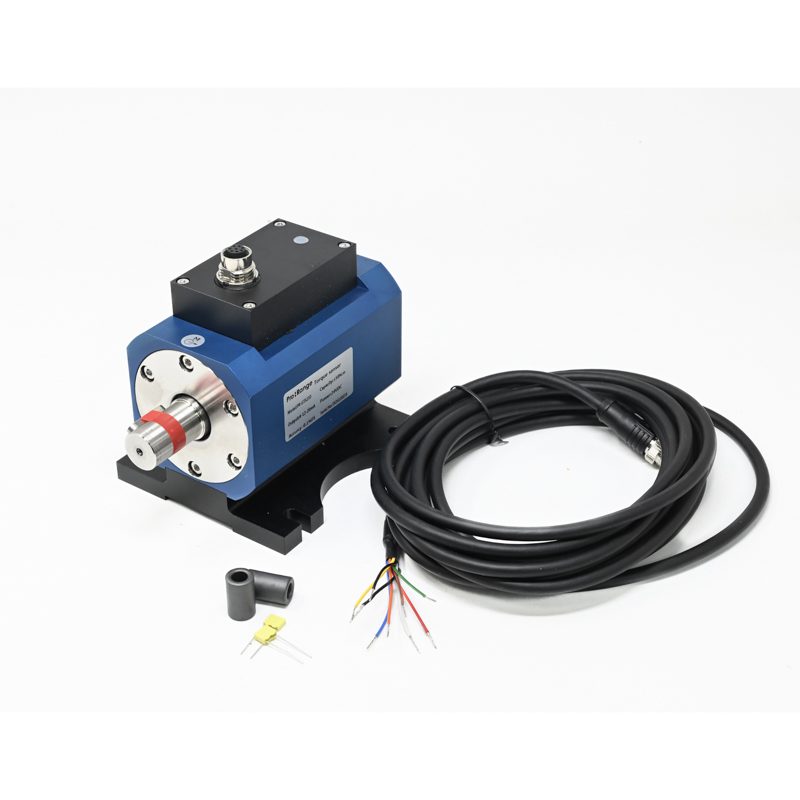

Pro-Range GTS210 Dynamic Torque Sensor 50Nm 15000RPM ±0.2% F.S - 4-20mA Output
The Pro-Range GTS210 is a high-precision dynamic torque sensor designed for industrial and automotive powertrain testing, offering a 50Nm capacity, ±0.2% F.S accuracy, and a maximum rotational speed of 15000 RPM. It provides a standard 4-20mA output for seamless integration with PLCs, DAQ systems, and control panels.
Features
- High-capacity torque measurement up to 50 Nm with ±0.2% full-scale accuracy.
- Non-contact sensing technology ensures wear-free, bidirectional operation.
- High-speed capability up to 15,000 RPM for dynamic testing applications.
- Standard 4-20mA output signal compatible with industrial control systems.
- Robust 17-4PH stainless steel shaft and aluminum alloy housing for durability.
Out of stock
The GTS210 dynamic torque sensor utilizes a non-contact, strain-gauge-based sensing principle to provide precise torque and rotational speed measurements without mechanical wear. Its signal conditioning electronics deliver a stable, industry-standard 4-20mA analog output proportional to the applied torque, ensuring reliable data acquisition for closed-loop control and monitoring systems.
Engineered for demanding environments, the sensor features a 17-4PH precipitation-hardening stainless steel shaft for high torsional strength and an aluminum alloy shell for lightweight rigidity. It operates across an industrial temperature range and is designed for integration into motor test stands, dynamometers, and automotive drivetrain assemblies where accuracy under high rotational speeds is critical.
Additional Information
| Weight | 3.1 kg |
|---|---|
| Dimensions | 22 × 19 × 10 cm |
