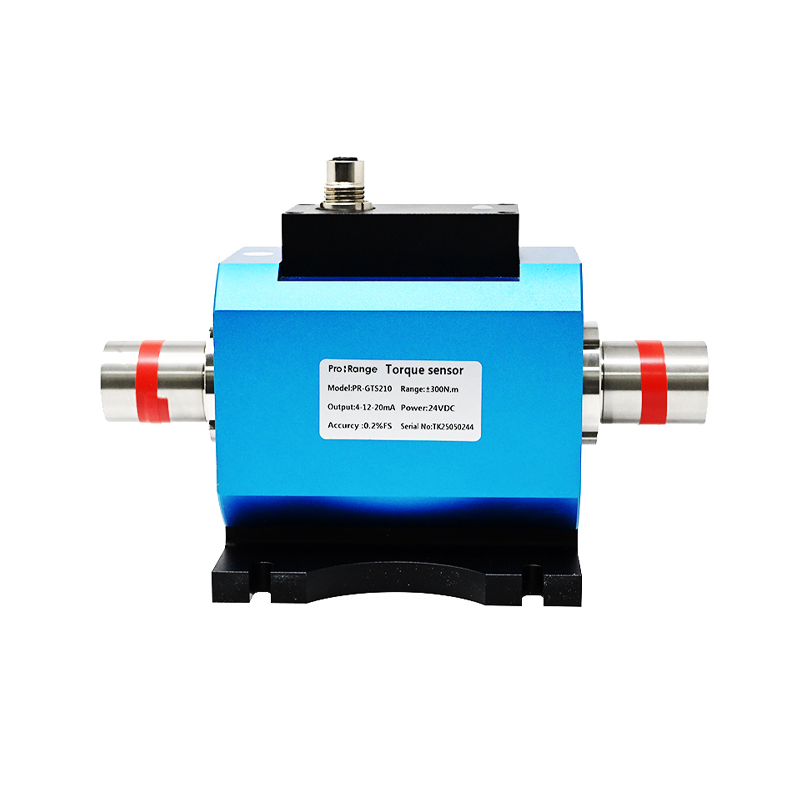

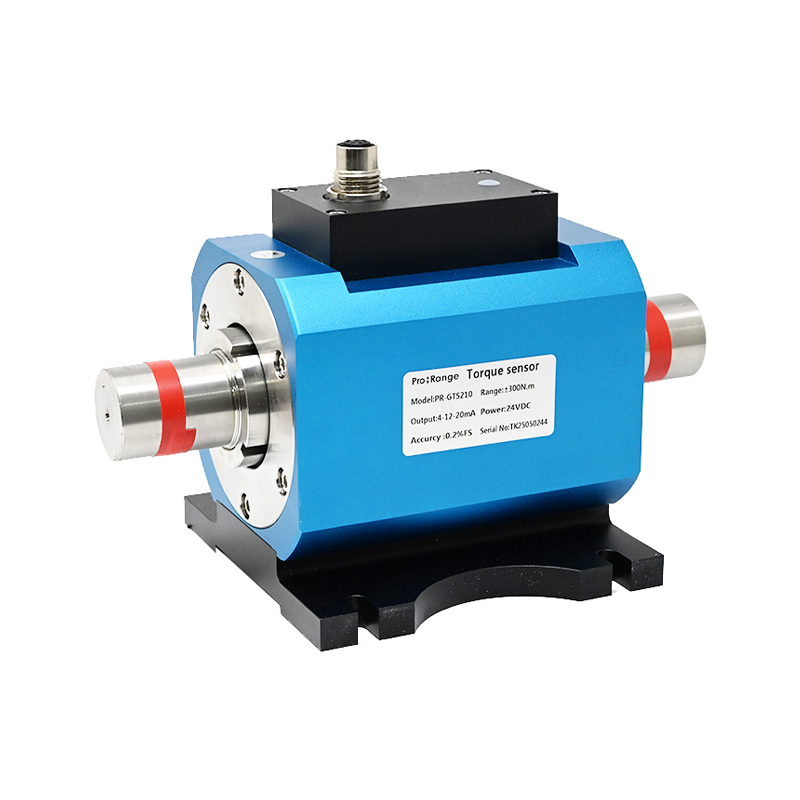

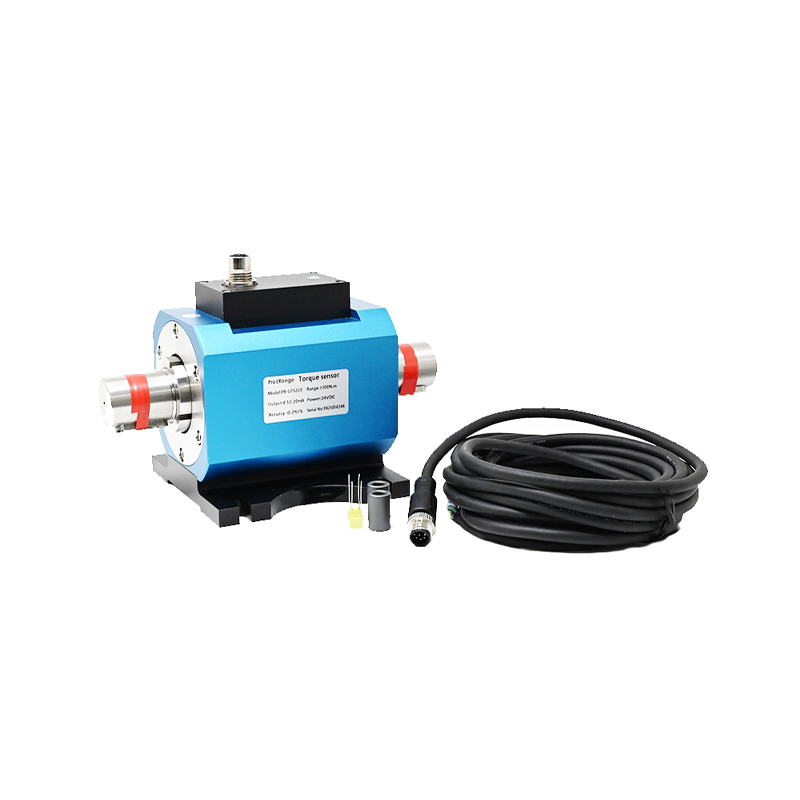

Pro-Range GTS210 Dynamic Torque Sensor 300 Nm 15000 RPM ±0.2% F.S - 4-20mA Output
The Pro-Range GTS210 is a high-precision dynamic torque sensor designed for real-time measurement of torque and rotational speed up to 15,000 RPM. Featuring a robust 17-4PH stainless steel shaft and a 4-20mA output, it integrates seamlessly with industrial PLCs, data acquisition systems, and control panels for demanding mechanical testing and powertrain monitoring applications.
Features
- High-Precision Dynamic Torque Measurement: Rated for 300 Nm with a standard accuracy of ±0.2% F.S (±0.1% optional).
- High-Speed Capability: Operates at speeds up to 15,000 RPM (16,000 RPM peak) for dynamic powertrain and motor testing.
- Robust Industrial Construction: Features a 17-4PH stainless steel shaft and lightweight aluminum housing for durability in harsh environments.
- Versatile Output Options: Standard 4-20mA analog output with optional digital and RS485 Modbus communication interfaces.
- Integrated Real-Time Display: Optional OLED screen provides live readings of torque, rotational speed, and calculated power.
Out of stock
The Pro-Range GTS210 employs a non-contact, strain gauge-based measurement principle to deliver accurate torque and speed data without physical wear on the sensing elements. This design ensures long-term stability and repeatability of ±0.2% F.S, even under high dynamic loads and rotational speeds. The sensor’s signal conditioning electronics are housed within a rugged aluminum shell, providing reliable operation across a wide industrial temperature range.
Engineered for integration into test benches, motor dynamometers, and inline production monitoring systems, the GTS210 transmits a stable 4-20mA signal proportional to the applied torque. This standard industrial interface allows for direct connection to PLC analog input modules, data loggers, and process controllers, facilitating real-time feedback for control, efficiency analysis, and quality assurance in mechanical power transmission applications.
Additional Information
| Weight | 3.672 kg |
|---|---|
| Dimensions | 21 × 9 cm |
