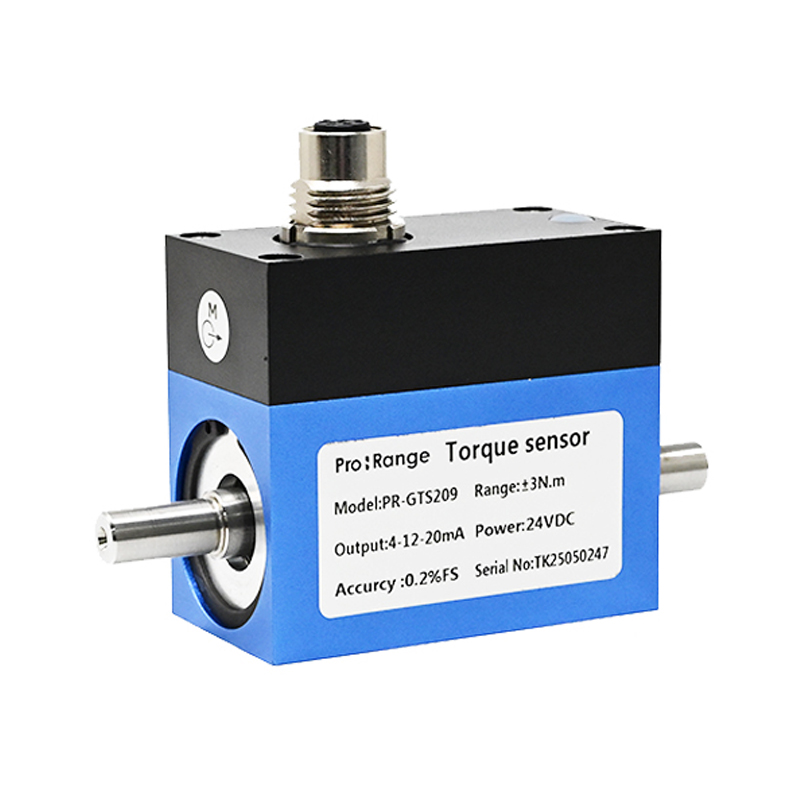

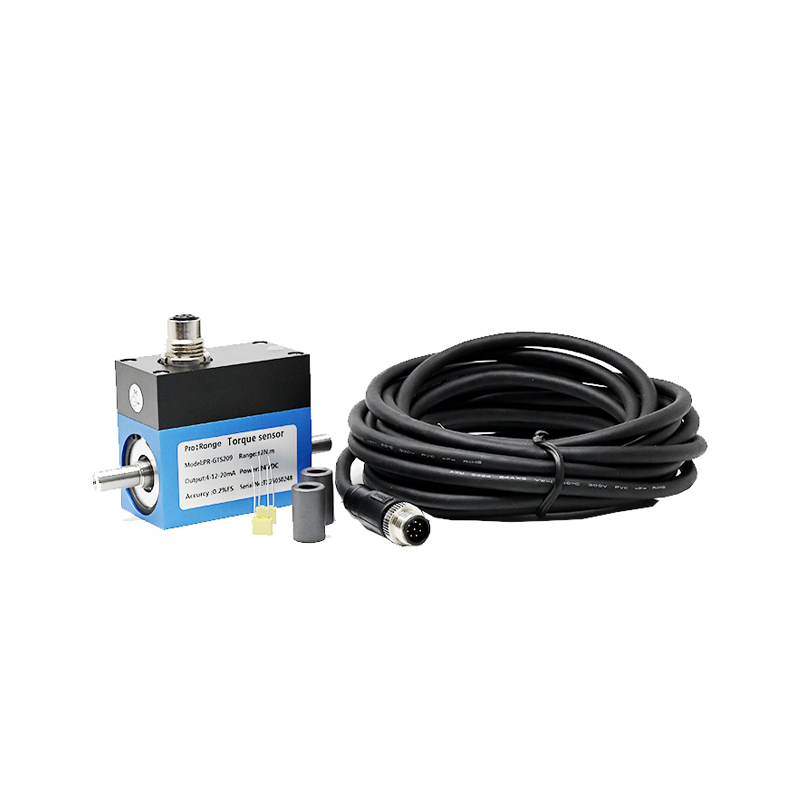

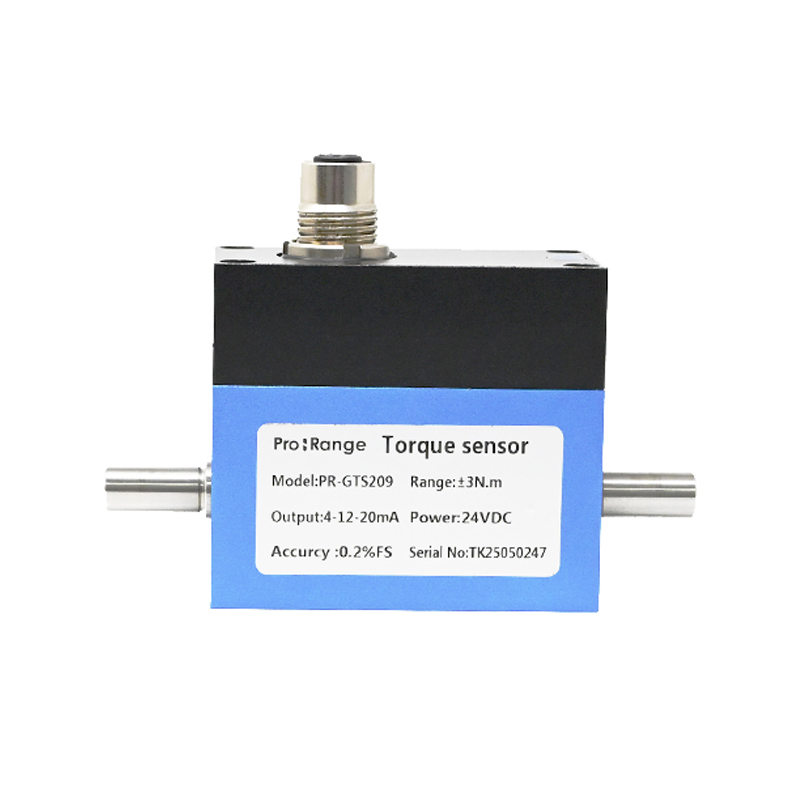

Pro-Range GTS209 Dynamic Torque Sensor 3 N·m, 16000 RPM, ±0.2% F.S, 4-20mA Output
The Pro-Range GTS209 is a high-precision dynamic torque sensor designed for industrial motor and drivetrain testing, featuring a 3 N·m range, bi-directional measurement up to 16,000 RPM, and a standard 4-20mA output for seamless integration with PLCs, DAQ systems, and control panels.
Features
- High-precision dynamic torque measurement with ±0.2% F.S. accuracy.
- Bi-directional operation up to 16,000 RPM for motor and shaft testing.
- Non-contact, wear-free design ensures long-term stability and reliability.
- Robust construction with 17-4PH stainless steel shafts and aluminum alloy housing.
- Standard 4-20mA output signal for industrial PLC and control system compatibility.
Out of stock
The GTS209 Dynamic Torque Sensor utilizes a high-precision resistance strain gauge integrated with advanced signal conditioning circuitry to provide stable and accurate torque measurements in both rotational directions. Its non-contact, slip-ring-free design eliminates mechanical wear, ensuring consistent performance and a long operational lifespan even in demanding high-speed applications.
Engineered for harsh industrial environments, the sensor features durable 17-4PH stainless steel shafts and a machined aluminum alloy housing. It delivers real-time torque and rotational speed data, with optional models featuring an integrated OLED display for on-site monitoring of torque, speed, and calculated power.
Additional Information
| Weight | 0.262 kg |
|---|---|
| Dimensions | 12 × 8 cm |
