Pro-Range E38S6G5-600B-G24F Rotary Incremental Encoder - 38mm, Photoelectric, AB 2 Channels, 600 PPR

The Pro-Range E38S6G5-600B-G24F encoder operates on a wide DC voltage range from 5V to 24V. This flexibility allows it to be powered directly from common industrial logic supplies, PLC output modules, or dedicated motor driver power rails without requiring an additional voltage regulator.

The encoder provides two digital square wave outputs, Channel A and Channel B, in quadrature (90 degrees out of phase). The phase relationship between these signals indicates the direction of rotation, while the pulse count determines the angular position and speed. A standard quadrature decoder circuit or microcontroller input capture peripheral is required to process these signals.

This encoder is rated for operation at speeds up to 6000 revolutions per minute (RPM). At its 600 PPR resolution, this corresponds to a maximum output frequency of 60 kHz, which is compatible with most industrial counters and high-speed microcontroller inputs.

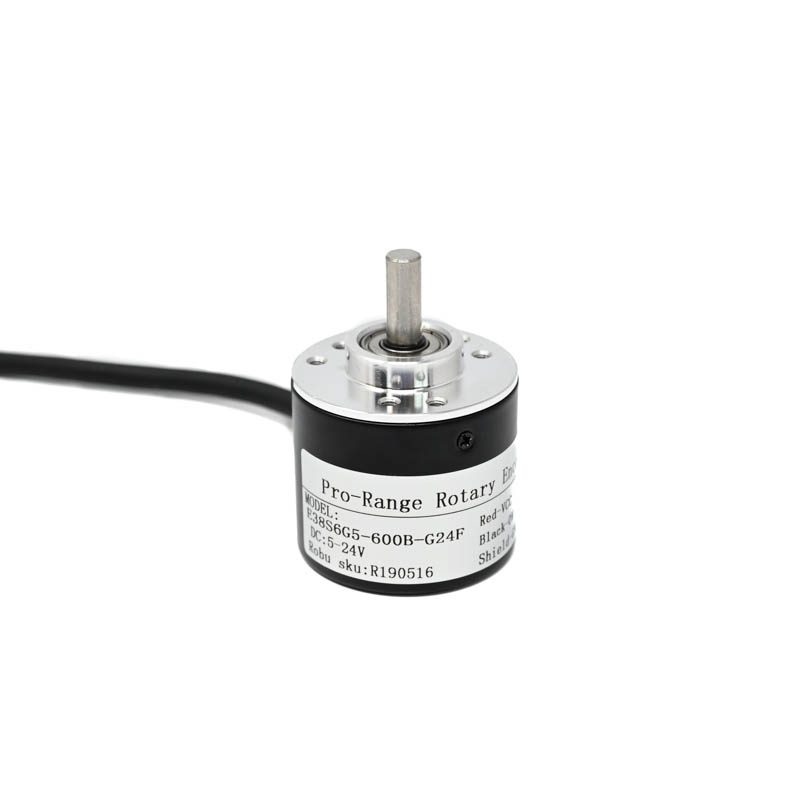

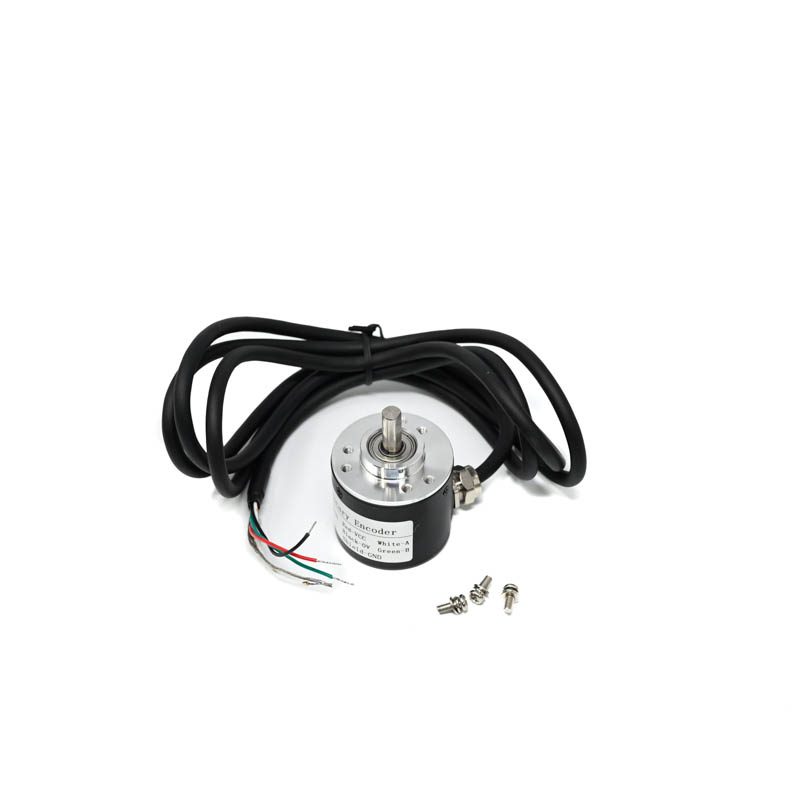

The encoder features a 38mm diameter body with a central shaft and a PCB mounting flange with a 38mm hole pattern. It is typically mounted via its flange using provided screws. Electrical connection is made through the wire leads or connector (specifics depend on the exact variant); always refer to the product datasheet for the precise pinout and connection diagram.
