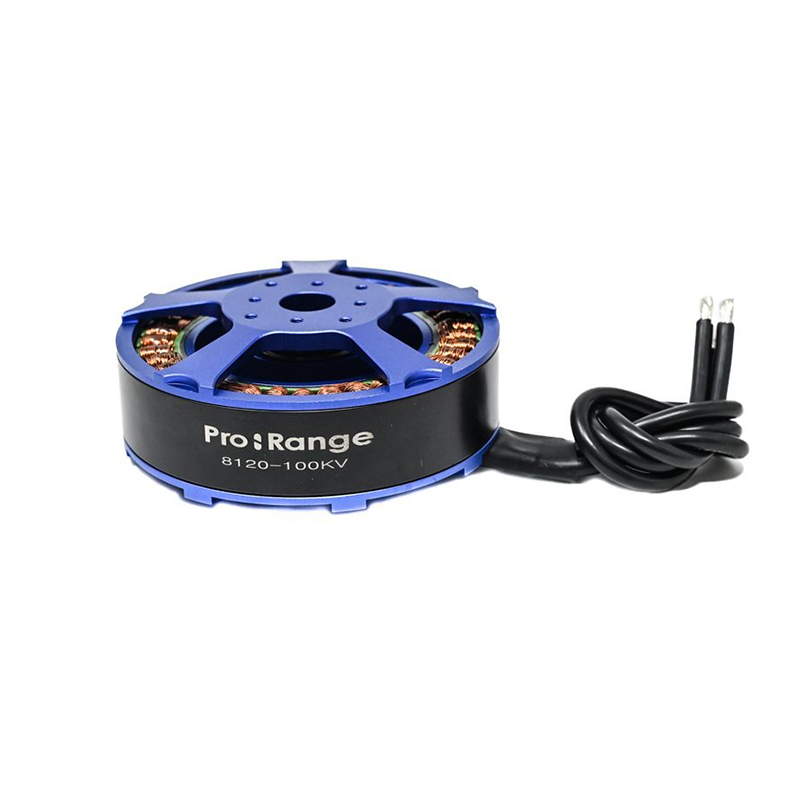

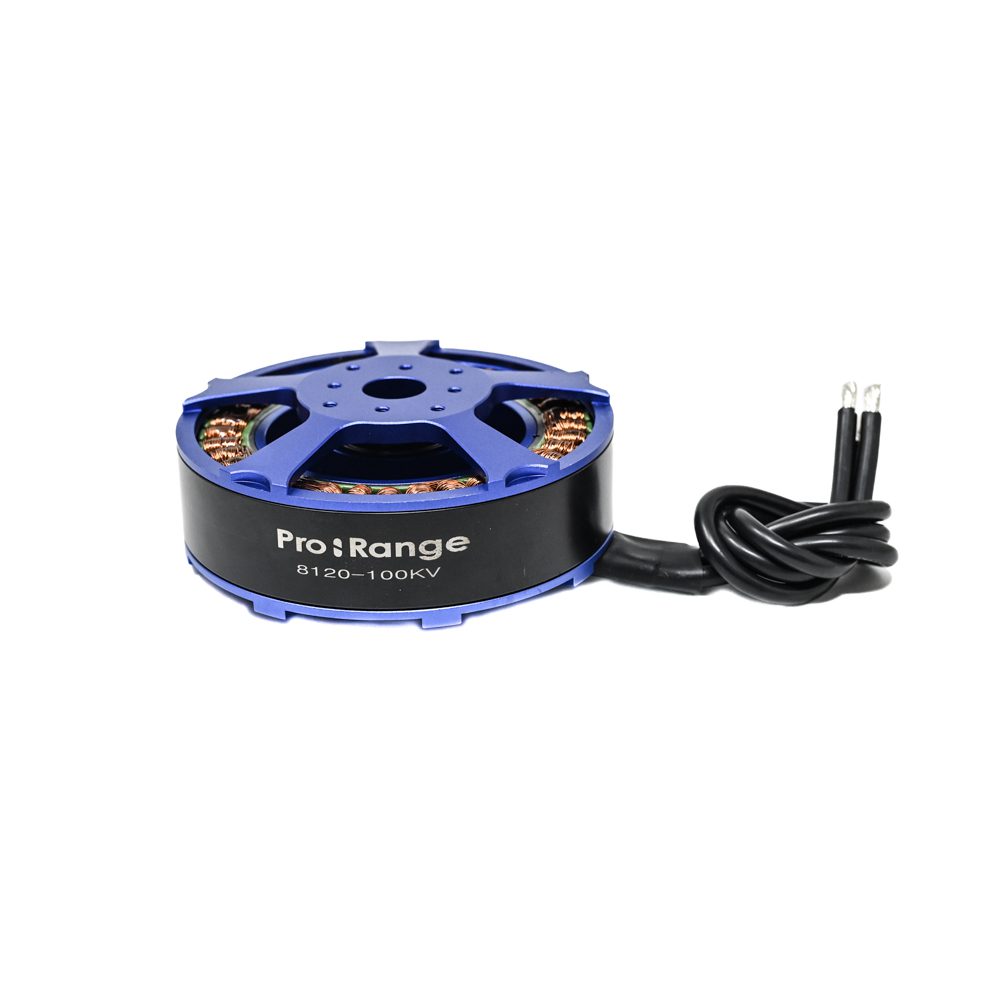

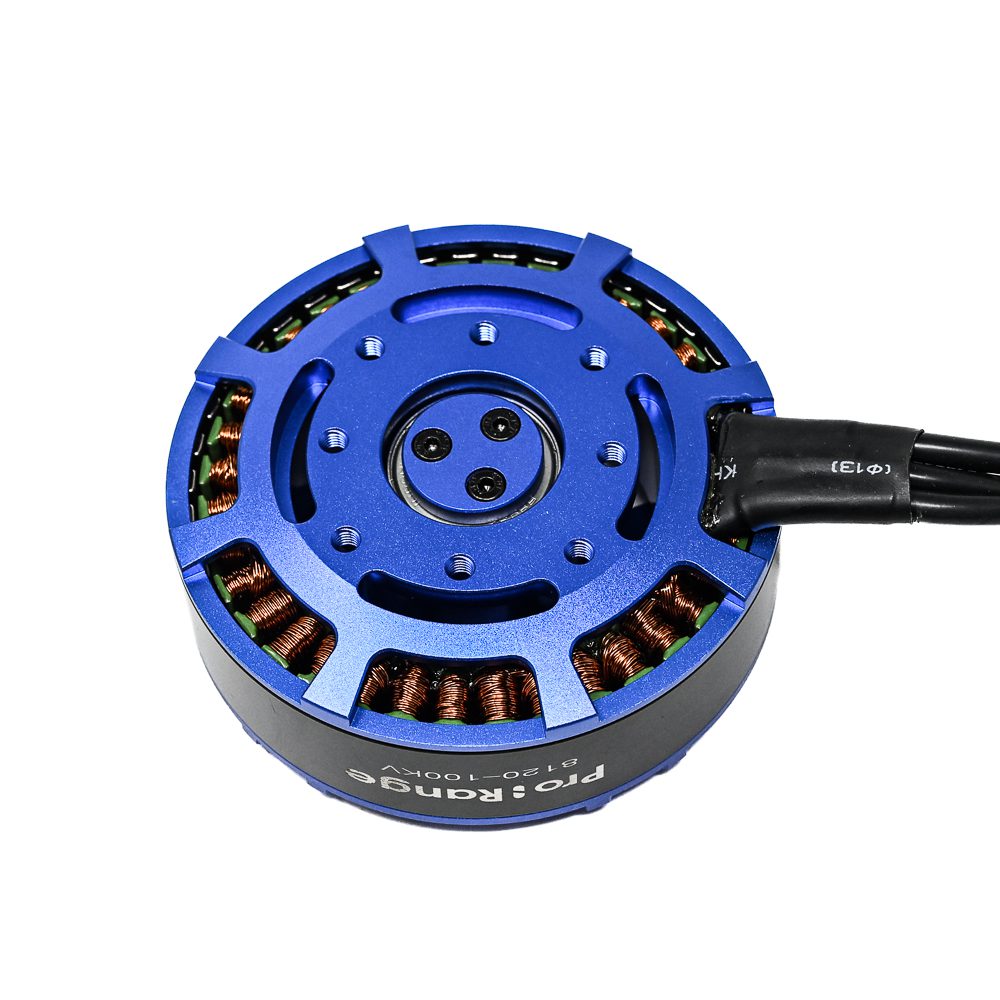

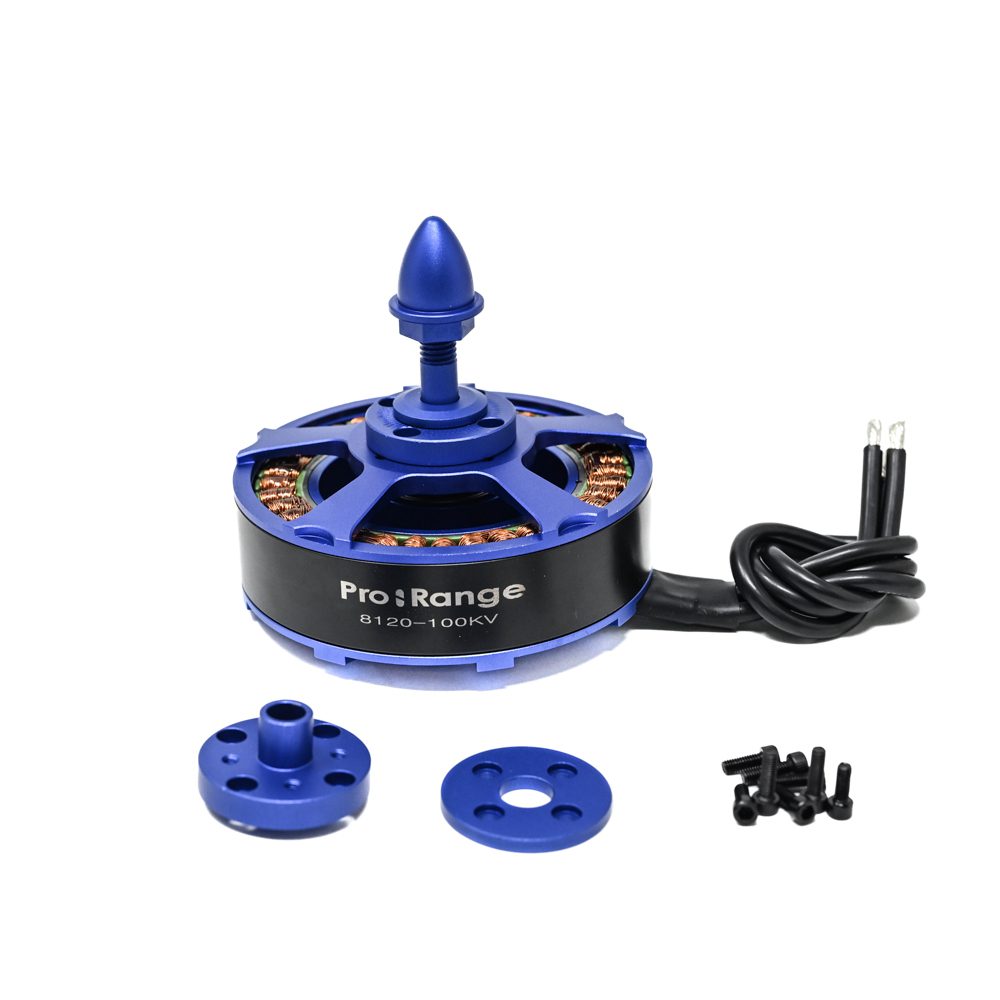

Pro-Range D8120-100DKV CCW Brushless Drone Motor
The Pro-Range D8120-100DKV is a high-torque, low-KV brushless motor engineered for heavy-lift and long-endurance UAV platforms. Designed for 6S to 12S LiPo battery systems, it delivers up to 1400W of power with optimized efficiency for extended flight operations.
Features
- Low 100KV rating optimized for large propellers and high-torque applications.
- Wide 6S-12S LiPo voltage compatibility for flexible power system integration.
- High power output up to 1400W with a maximum load current of 31.5A.
- Engineered for efficiency with a thrust-to-power ratio of 8.3 g/W.
- Robust construction with an 8mm shaft and 28-pole design for reliable, low-maintenance operation.
Out of stock
The Pro-Range D8120-100DKV brushless motor is built for demanding professional UAV applications where high thrust and flight endurance are critical. Its low KV rating of 100 RPM/V is specifically tuned for large-diameter propellers, generating the necessary torque for heavy-lift drones, aerial photography rigs, and industrial inspection platforms without excessive current draw.
Constructed with a 28-pole stator and high-grade magnets, the motor provides smooth, consistent power delivery across its operational voltage range of 6S to 12S. The design prioritizes thermal management and mechanical durability, supporting continuous operation within an ambient temperature range of -20°C to 80°C. The 8mm hardened steel shaft ensures reliable power transmission to the propeller hub under high-load conditions.
Additional Information
| Weight | 0.651 kg |
|---|---|
| Dimensions | 11 × 10 × 10 cm |
