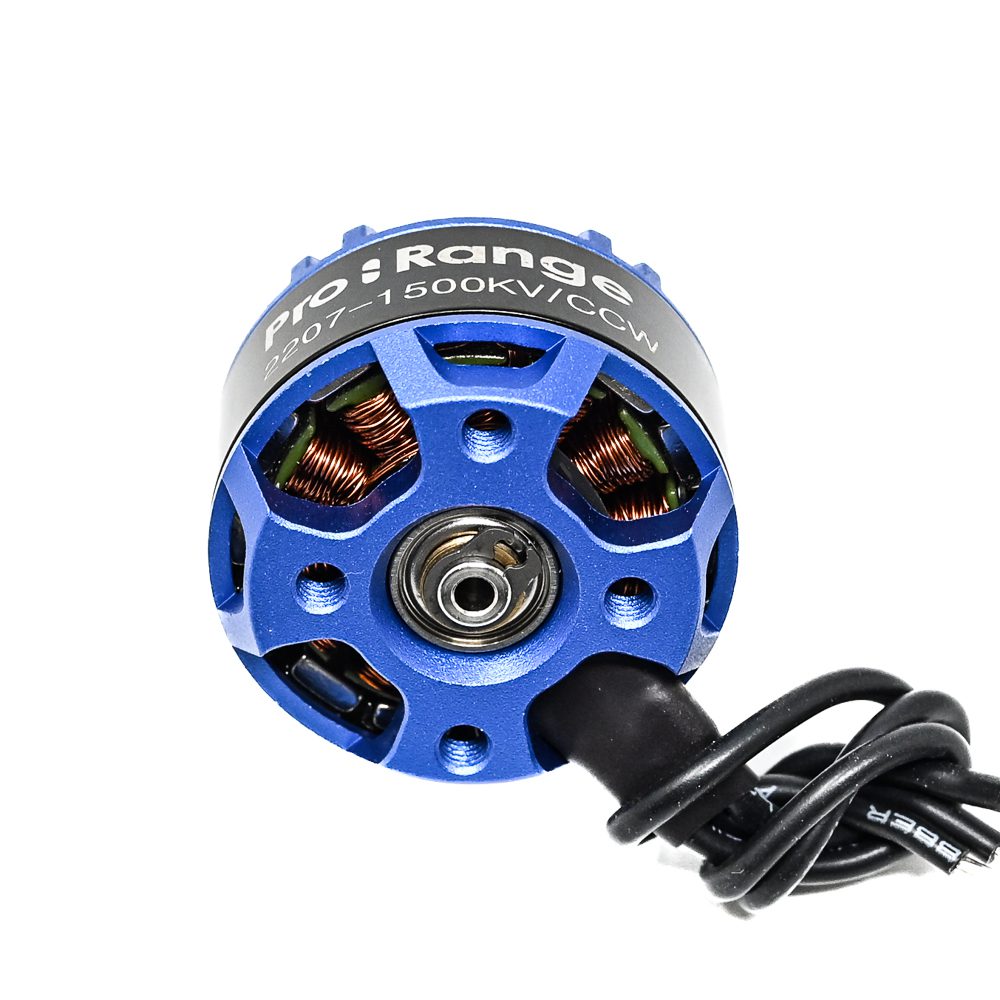

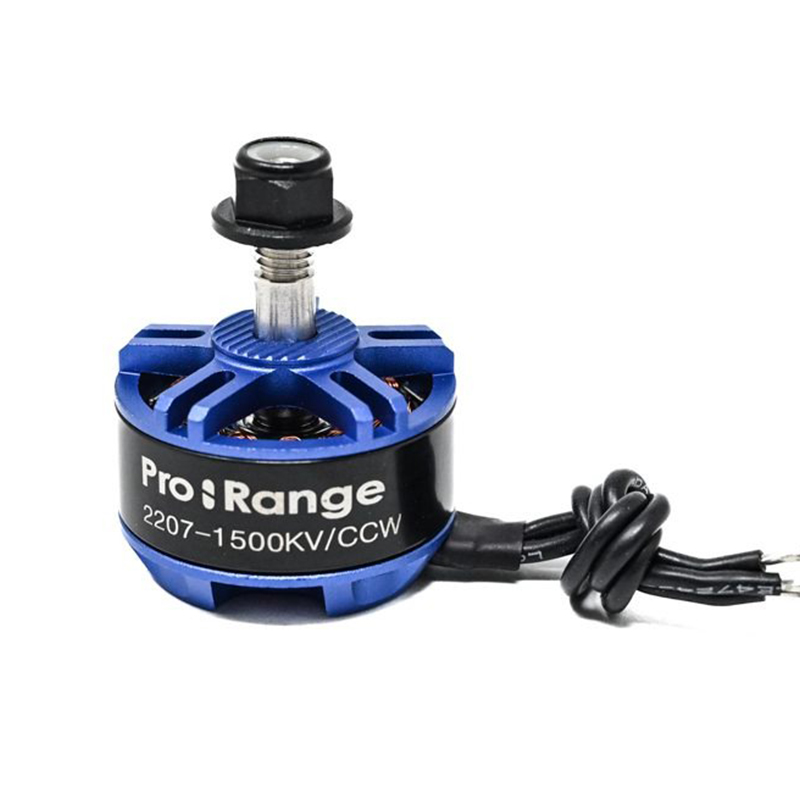

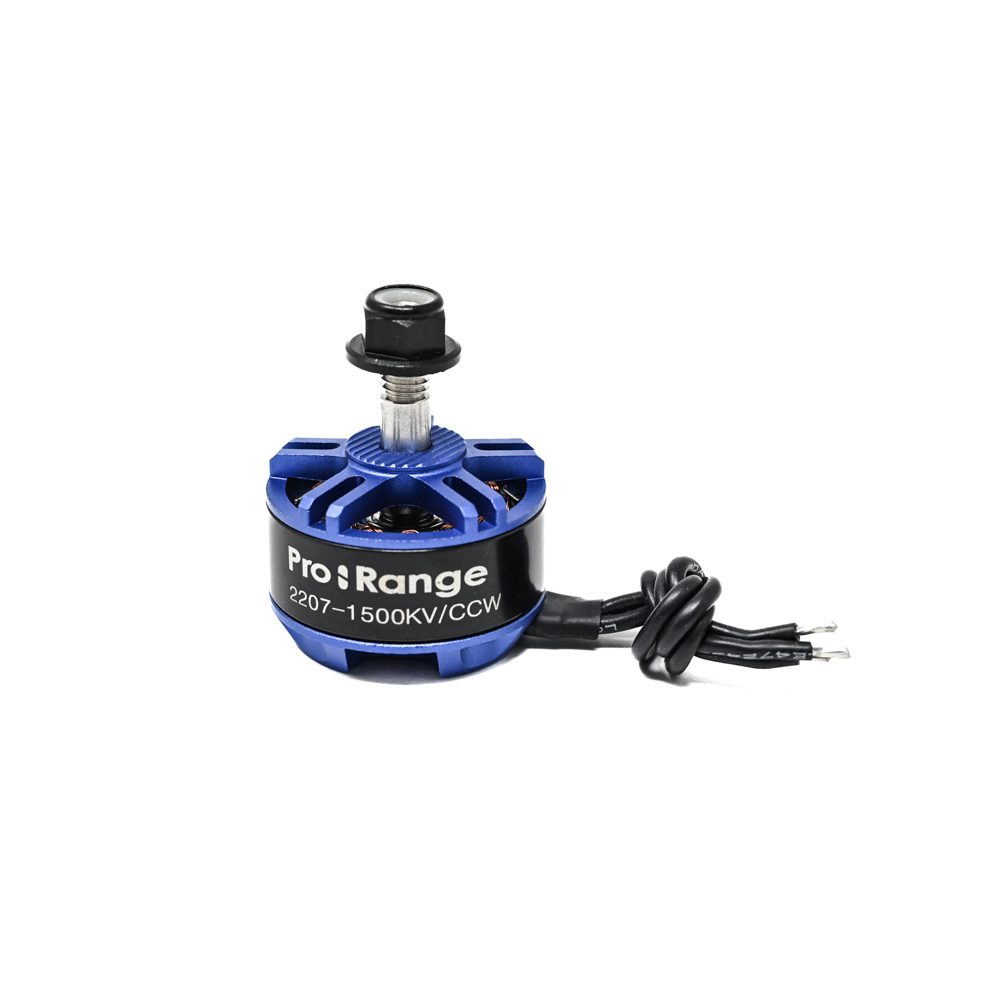

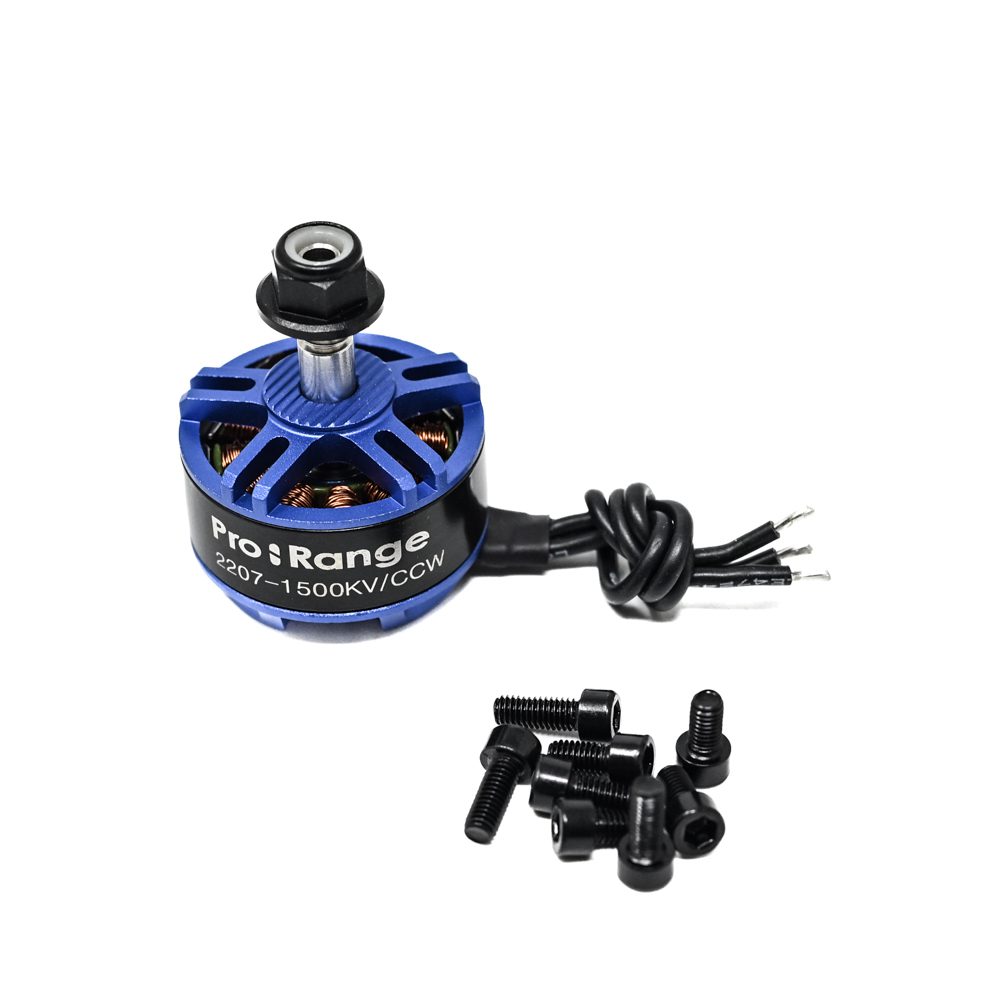

Pro-Range D2207 1500KV CCW Brushless Drone Motor
The Pro-Range D2207 1500KV brushless motor is a CCW-rotation motor engineered for 2S-3S LiPo FPV drone builds, delivering up to 1047g of thrust for responsive freestyle and racing performance.
Features
- 1500KV rating optimized for balanced torque and speed on 2S-3S LiPo power.
- Delivers up to 1047g maximum thrust for aggressive freestyle and racing maneuvers.
- Lightweight 28g construction enhances quadcopter agility and flight time.
- CCW (Counterclockwise) rotation complements standard 4-in-1 ESC and frame setups.
- Features a 5mm shaft diameter and 14 magnetic poles for smooth, efficient power delivery.
Out of stock
The Pro-Range D2207 1500KV brushless motor is designed for high-performance FPV applications where a balance of torque and throttle response is critical. Its 1500KV winding is optimized for 2S to 3S LiPo battery configurations, providing a robust power curve suitable for aggressive freestyle flying and technical racing circuits. The motor’s construction prioritizes a high power-to-weight ratio, achieving significant thrust output while maintaining a minimal mass footprint.
Engineered with a 14-pole stator and precision-balanced components, the D2207 ensures smooth operation across the entire throttle range, reducing vibration and promoting stable flight characteristics. The motor’s thermal design, with an operating temperature range of -10°C to 80°C, supports sustained high-current draws, making it a durable choice for demanding piloting styles. Its CCW rotation is integral for standard multirotor configurations, pairing seamlessly with complementary CW motors on the same airframe.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
