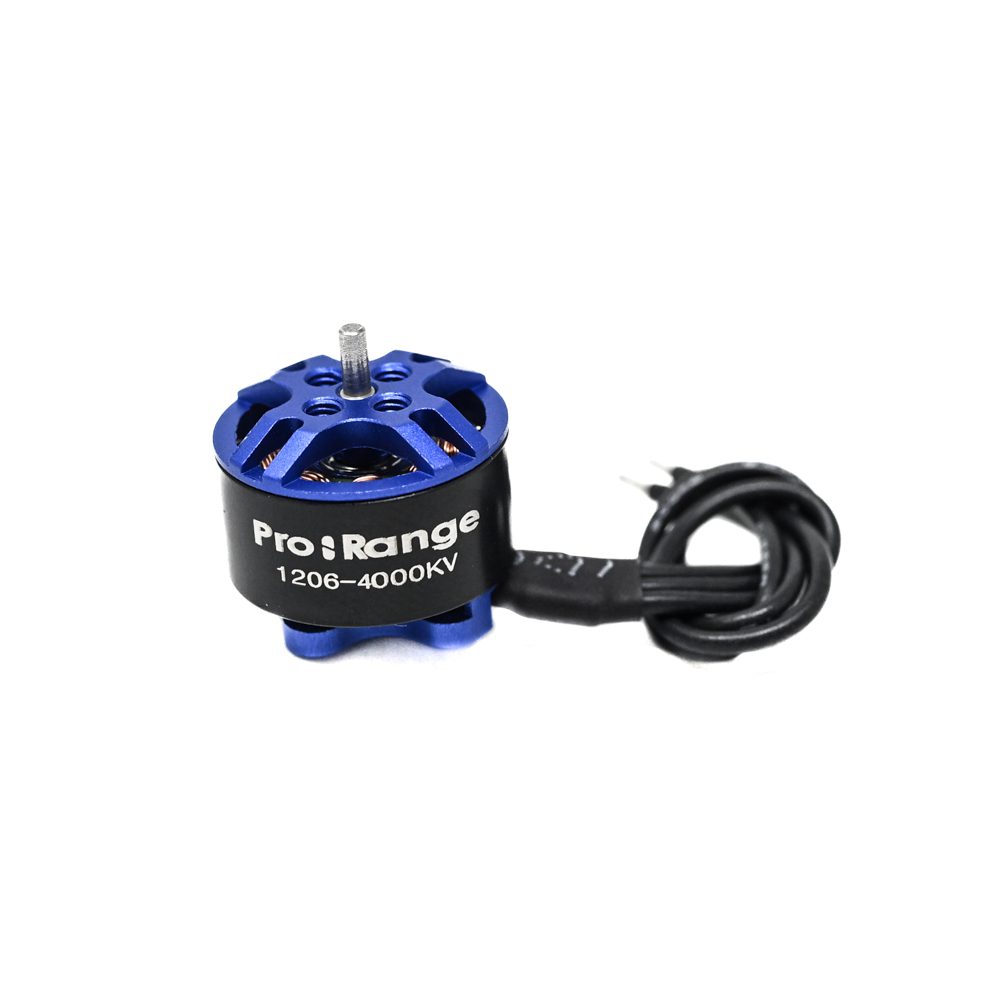

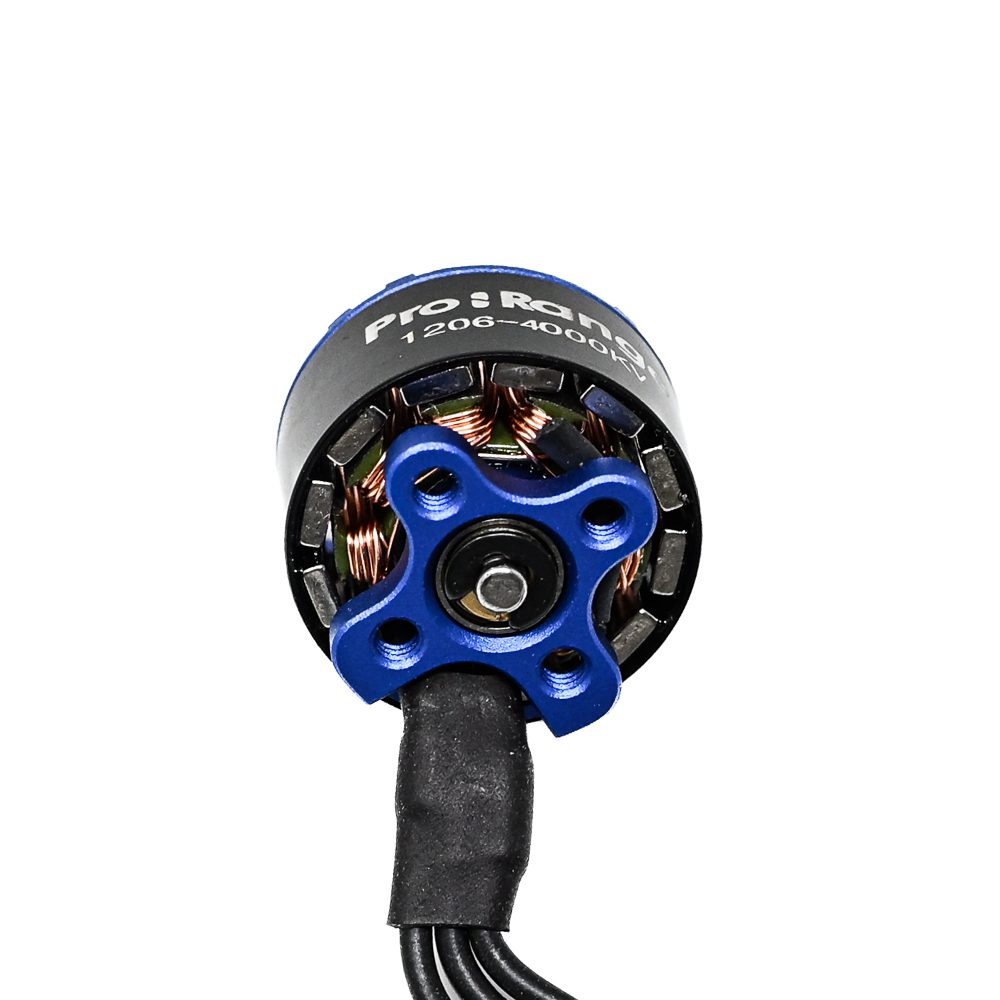

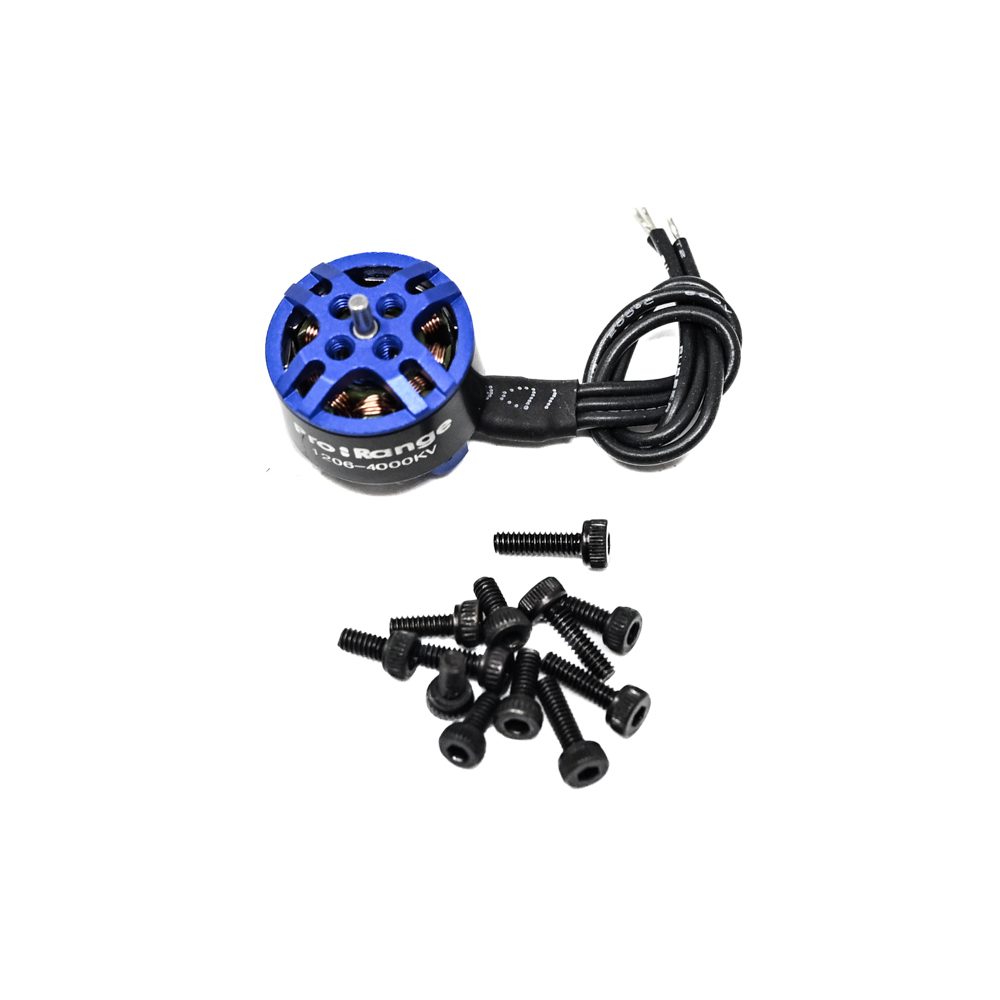

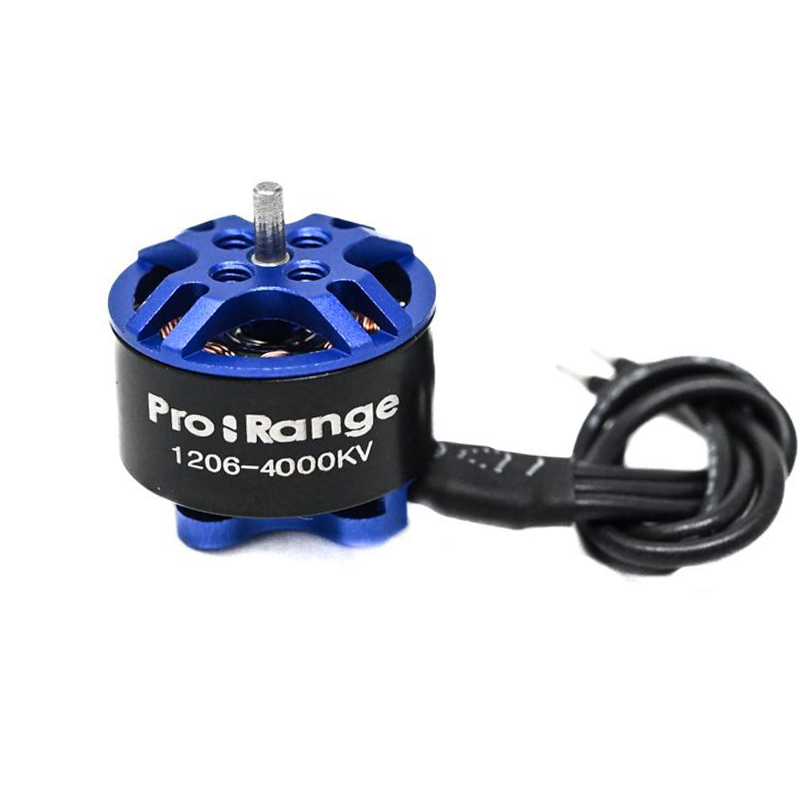

Pro-Range D1206 4000KV CW Brushless Motor
The Pro-Range D1206 4000KV CW brushless motor is a compact, high-efficiency powerplant designed for micro and lightweight FPV drones. It operates on 1S to 3S LiPo batteries, delivering a balanced 4000KV for agile performance with small propellers.
Features
- 4000KV rating optimized for speed and torque on 1S-3S LiPo batteries.
- Ultra-lightweight 9.2g design minimizes overall drone weight for agile flight.
- Delivers up to 320g of maximum thrust with high efficiency up to 2.7g/W.
- Features a 1.5mm shaft diameter and CW (Clockwise) rotation for standard micro-drone builds.
- Compatible with popular small propellers such as 2540 and 3024 variants.
Out of stock
The Pro-Range D1206 4000KV motor is engineered for micro and lightweight UAV platforms where every gram counts. Its 12-pole stator design and efficient magnetic circuit provide a responsive throttle feel and smooth power delivery across the 3.7V to 11.1V operating range, making it suitable for both 1S tiny whoops and more powerful 3S micro builds.
Constructed with a durable housing and precision-balanced components, this motor minimizes vibration for cleaner FPV video feeds. The thermal design ensures stable operation within a 0°C to 80°C range, supporting extended flight sessions. Its 1.5mm shaft is compatible with a wide range of micro propellers, allowing pilots to fine-tune performance for racing or freestyle.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
