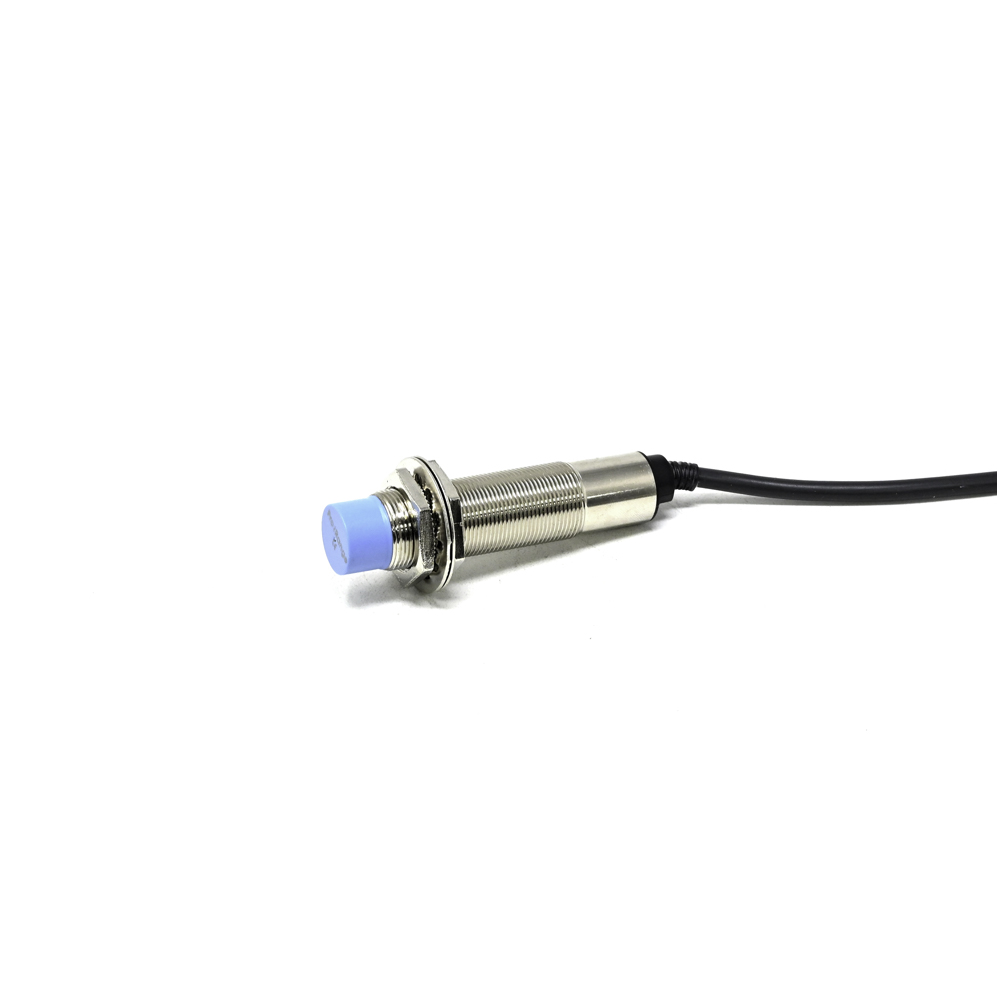

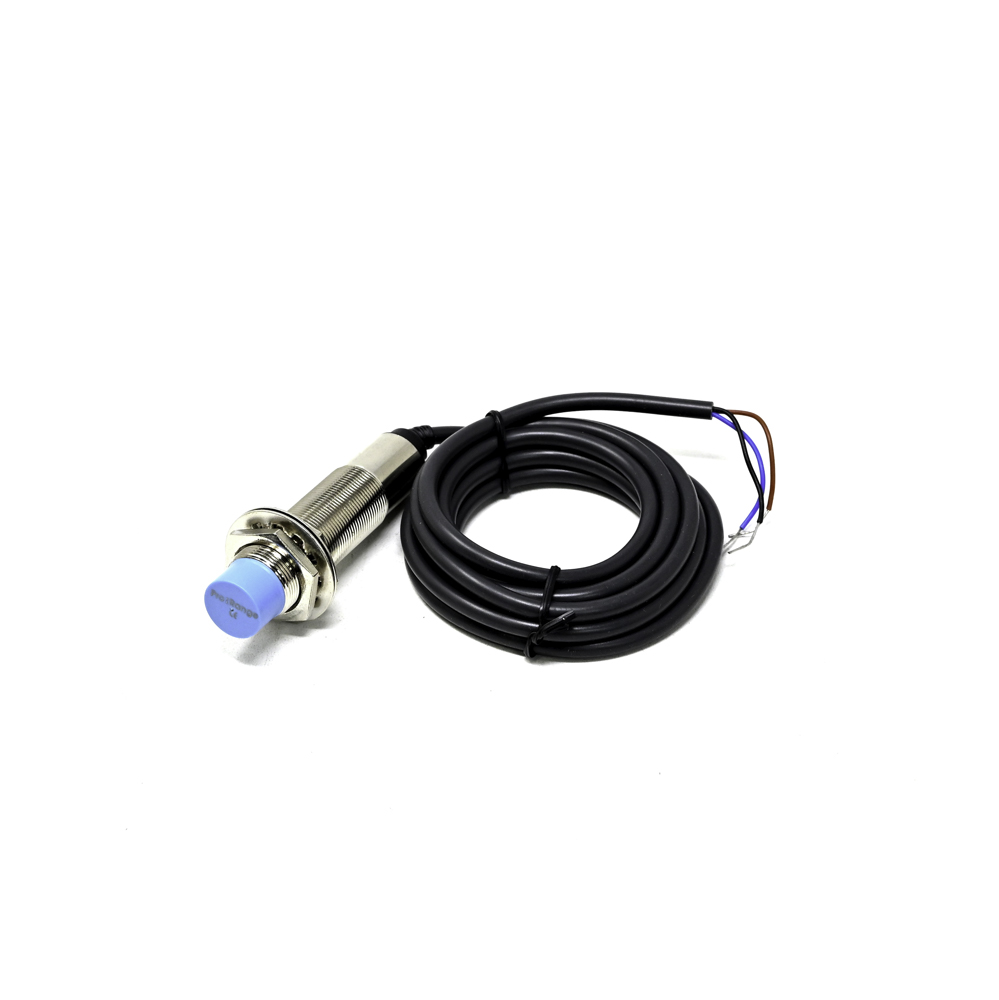

Pro-Range CRJ-A18-8APA Capacitive Proximity Sensor - PNP Output, M18 Thread, 8mm Detection
The Pro-Range CRJ-A18-8APA is an M18-threaded capacitive proximity sensor with a PNP output, designed for non-contact detection of non-metallic objects at a range of 8mm. It integrates directly with industrial PLCs and 24V DC control systems for automation tasks.
Features
- PNP (sourcing) output for direct PLC and 24V DC system integration.
- 8mm standard detection distance for non-metallic object sensing.
- M18 x 1 metric thread for standard industrial mounting.
- Integrated sensitivity adjustment for fine-tuning detection performance.
- Features polarity and short-circuit protection for robust operation.
Out of stock
The CRJ-A18-8APA operates on the capacitive sensing principle, detecting changes in dielectric constant to sense the presence of non-conductive materials like plastics, glass, liquids, and granular substances without physical contact. Its dedicated IC provides stable performance with high immunity to electrical noise common in industrial environments.
Constructed with a metal housing, this sensor is built for durability in automation applications. The red LED provides clear visual indication of the output status, aiding in setup and diagnostics. It is designed for reliable long-term operation in material handling, packaging, and level control systems.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 5 × 10 cm |
