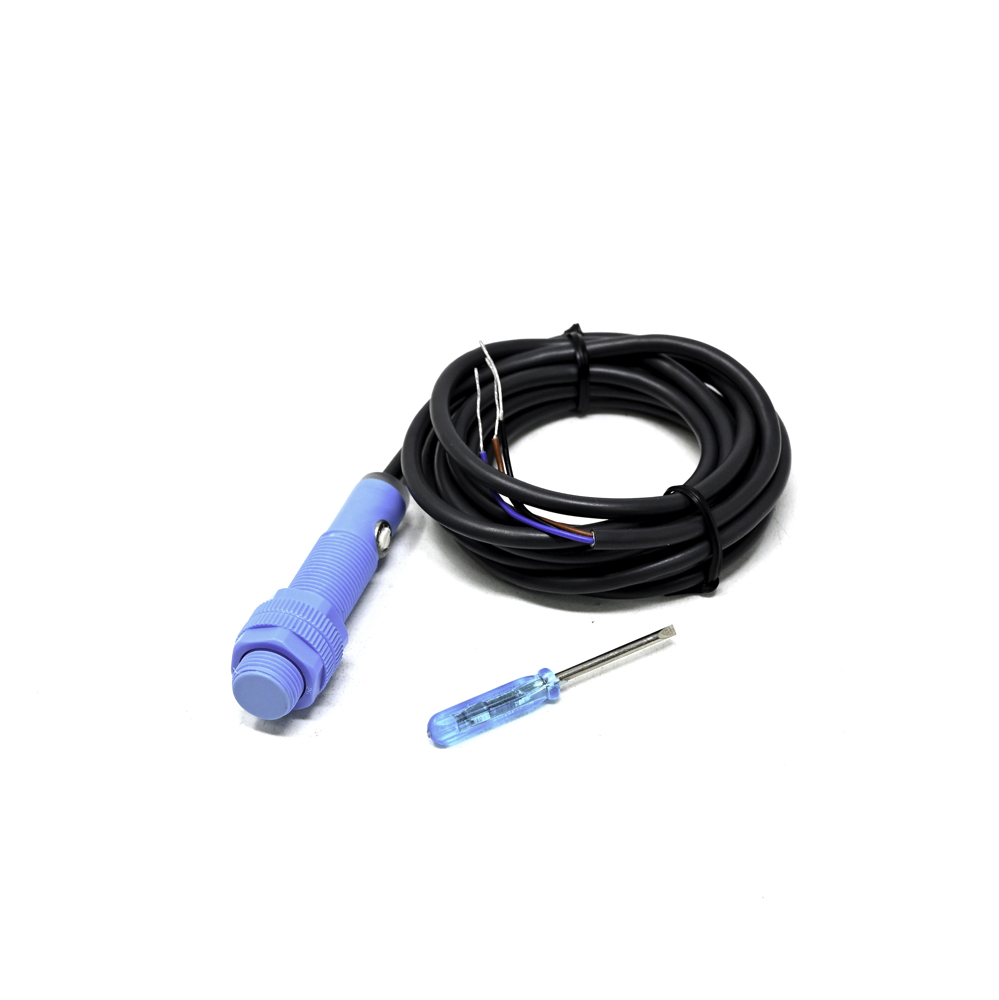

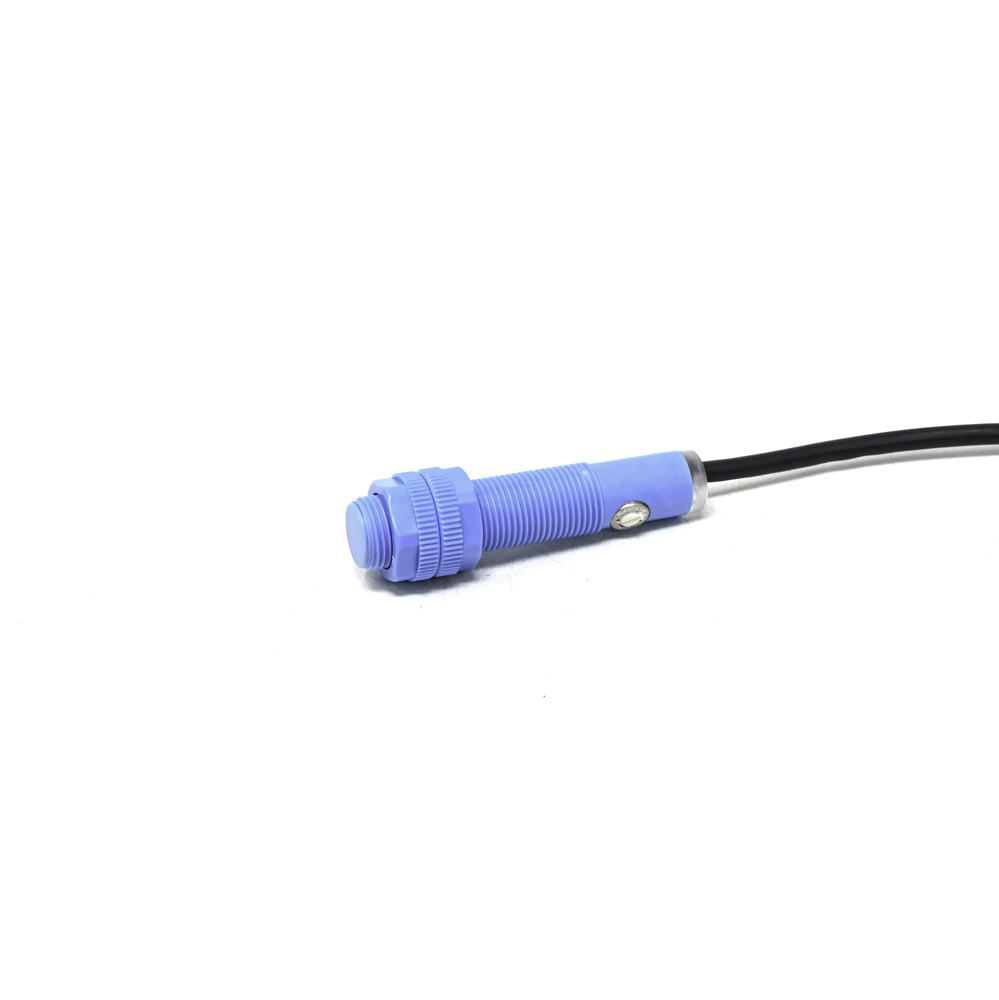

Pro-Range CCJ-A12M-3ANB Capacitive Proximity Sensor NPN M12 Thread 3mm Detection
The Pro-Range CCJ-A12M-3ANB is an NPN output capacitive proximity sensor with a 3mm nominal detection range and an M12 threaded metal housing, designed for non-contact detection of non-metallic objects in industrial automation systems compatible with PLCs and standard 10-30V DC supplies.
Features
- NPN open-collector output for easy integration with PLCs and industrial control systems.
- 3mm nominal detection distance for precise non-contact sensing of non-metallic materials.
- M12 threaded metal housing ensures robust mounting and environmental protection.
- Integrated sensitivity adjustment potentiometer for fine-tuning detection performance.
- Features polarity and short-circuit protection for enhanced system reliability.
Out of stock
The CCJ-A12M-3ANB capacitive proximity sensor operates on the principle of dielectric constant change, detecting the presence or level of non-metallic objects (plastics, liquids, powders) without physical contact. It generates a switching signal when a target enters its 3mm sensing field.
Housed in a durable M12 threaded metal body, the sensor is built for industrial environments and interfaces directly with programmable logic controllers (PLCs) using its NPN sinking output. It requires a 10-30V DC supply and includes a red LED status indicator, sensitivity adjustment, and built-in electrical protections for stable operation in automation applications.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 15 × 10 × 5 cm |
