SKU: DRFC-1699
📋 GST Invoice Available

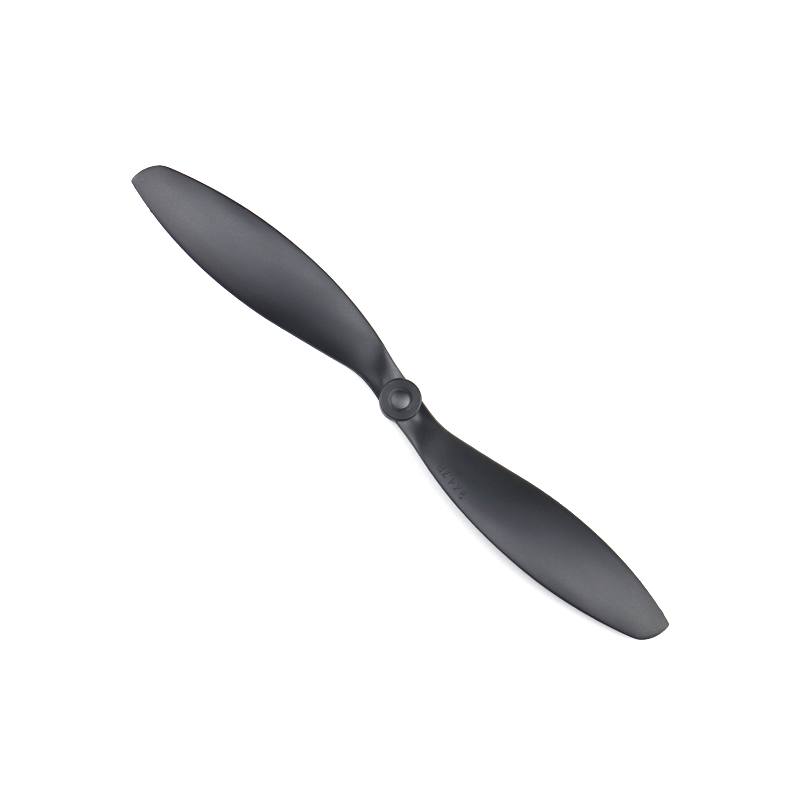

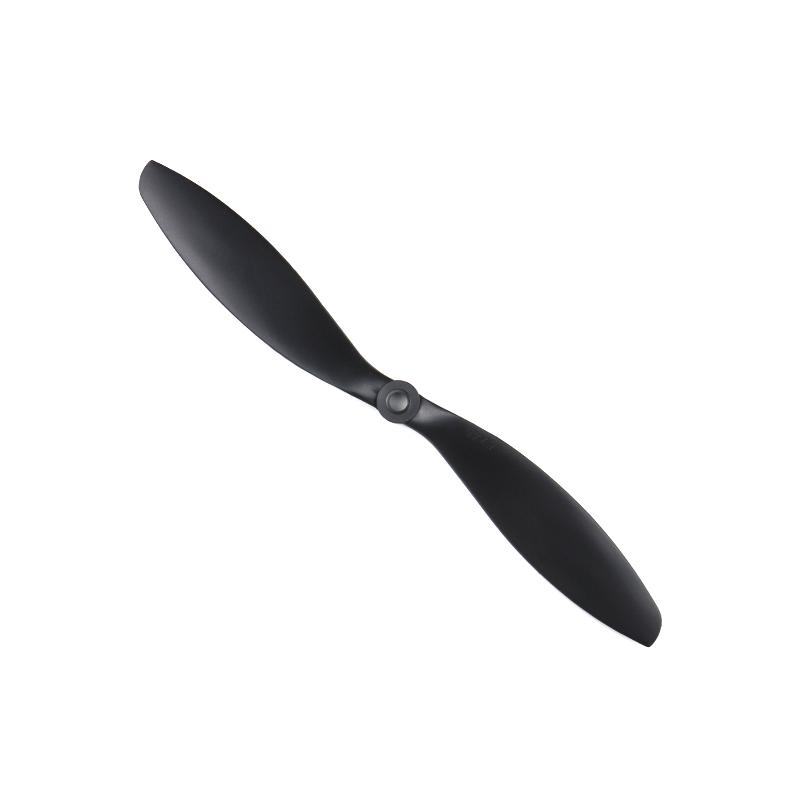

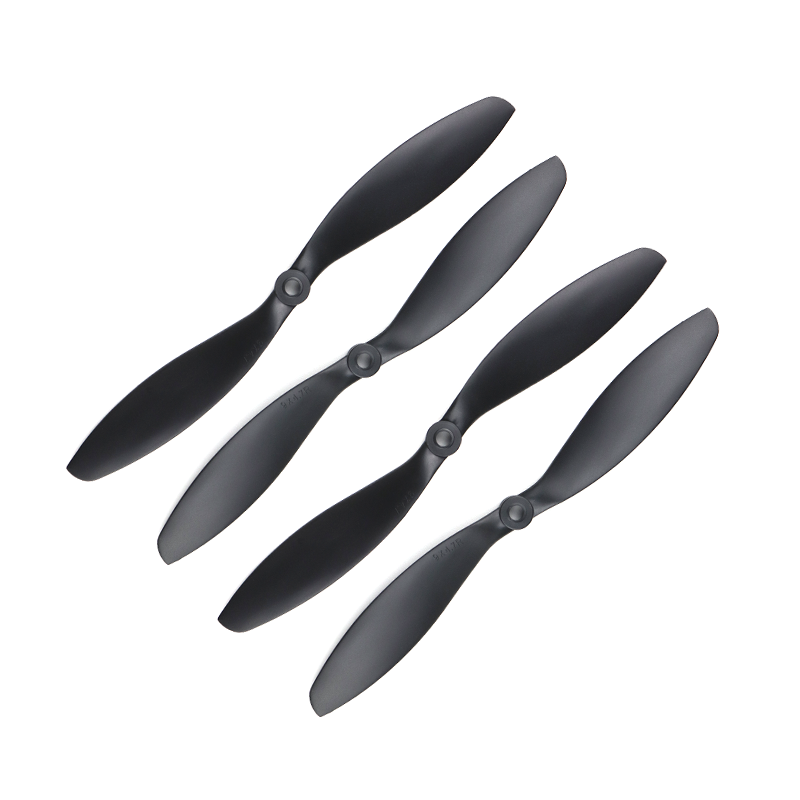

Pro-Range 9047 (9x4.7) ABS Propellers 1CW+1CCW Pair - Black

₹161.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 9047 (9×4.7) ABS propellers are a 2-blade, 9-inch diameter set designed for multirotor drones, offering a balance of thrust and efficiency for medium to large builds compatible with 7.8mm motor shafts.

Features

  • 9-inch diameter with a 4.7-inch pitch for efficient thrust generation.
  • Constructed from durable, impact-resistant ABS plastic for a high strength-to-weight ratio.
  • Standard 7.8mm (approx.) bore diameter compatible with a wide range of large multirotor motors.
  • Includes one clockwise (CW) and one counter-clockwise (CCW) propeller for a complete thrust pair.
  • Optimized aerofoil design aims to improve aerodynamic efficiency and flight stability.

Out of stock

Description

The Pro-Range 9047 propellers are engineered for multirotor applications requiring reliable thrust from 9-inch blades. The 4.7-inch pitch provides a favorable balance, offering substantial lift without excessive current draw, making them suitable for a variety of aerial platforms.

Manufactured from ABS plastic, these propellers deliver a combination of rigidity and flexibility, which helps absorb impacts and resist deformation during flight. The design focuses on aerodynamic efficiency to enhance flight performance and battery endurance for FPV, aerial photography, and general multirotor use.

Key Features

  • Durable ABS Construction: Provides an optimal blend of lightness for performance and rigidity for durability and consistent thrust.
  • Aerodynamic Blade Profile: Designed for greater aerodynamic efficiency and improved lifting capacity compared to standard propellers.
  • Standard Large Bore: Features a ~7.8mm shaft diameter, compatible with many motors for larger drones and multirotors.
  • Impact-Resistant Material: ABS plastic offers flexibility to withstand minor impacts and maintain blade integrity.
  • Complete Rotation Pair: Sold as a matched set of one CW and one CCW propeller for immediate installation and use.

Applications

  • Large FPV and aerial photography multirotor builds utilizing 9-inch propellers.
  • Heavy-lift drone platforms requiring efficient thrust for payload carriage.
  • General-purpose multirotor and drone kits designed for 7.8mm motor shafts.
  • DIY drone projects where a balance of thrust and flight time is prioritized.

Technical Specifications

Model9047 (9x4.7)
Diameter9 inches
Pitch4.7 inches
MaterialABS Plastic
ColorBlack
Blade Count2
Shaft Diameter~7.8 mm
Rotation Direction1x CW, 1x CCW
Approx. Weight (per prop)18-20 grams

Frequently Asked Questions

What is the shaft diameter for these Pro-Range 9047 propellers?

These propellers are designed for a standard large motor shaft, with a bore diameter of approximately 7.8mm. It is compatible with many motors used for 9-inch and larger multirotor builds. Always verify your motor's shaft size before installation.

Are these propellers suitable for high-speed FPV racing?

No, the 9047 (9x4.7) size and pitch are optimized for efficiency and thrust in larger multirotor platforms, such as those used for aerial photography or heavy-lift applications. They are not designed for the high RPMs and aggressive maneuvers typical of smaller, 5-inch FPV racing drones.

What material are these propellers made from, and how durable are they?

These propellers are constructed from ABS (Acrylonitrile Butadiene Styrene) plastic. ABS offers a good balance of rigidity, light weight, and impact resistance, making these props durable for general multirotor use and capable of surviving minor crashes without shattering.

Package Includes

  • 1 x Clockwise (CW) Rotation Propeller
  • 1 x Counter-Clockwise (CCW) Rotation Propeller

Additional Information

Weight 0.02 kg
Dimensions 4 × 25 × 1 cm
