SKU: DRFC-1685
📋 GST Invoice Available

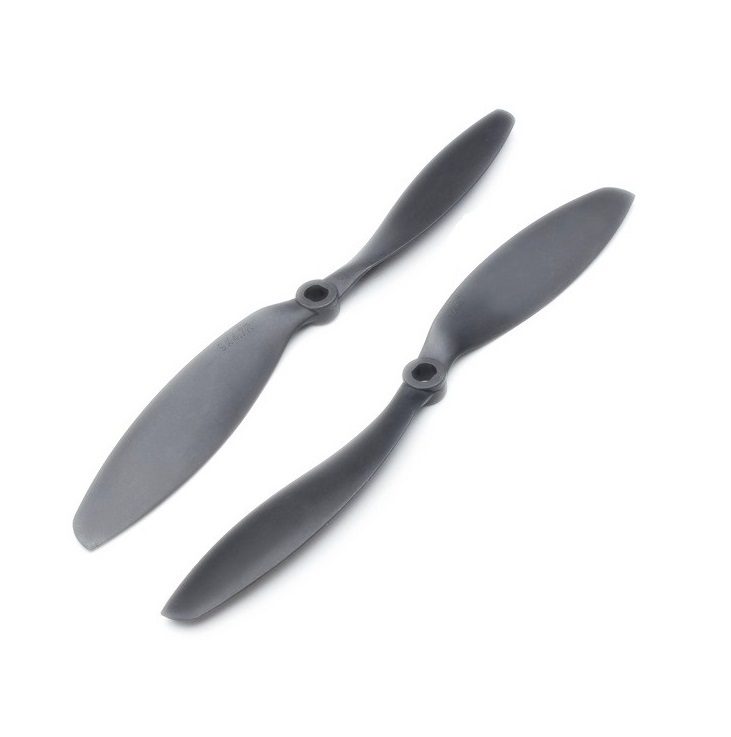

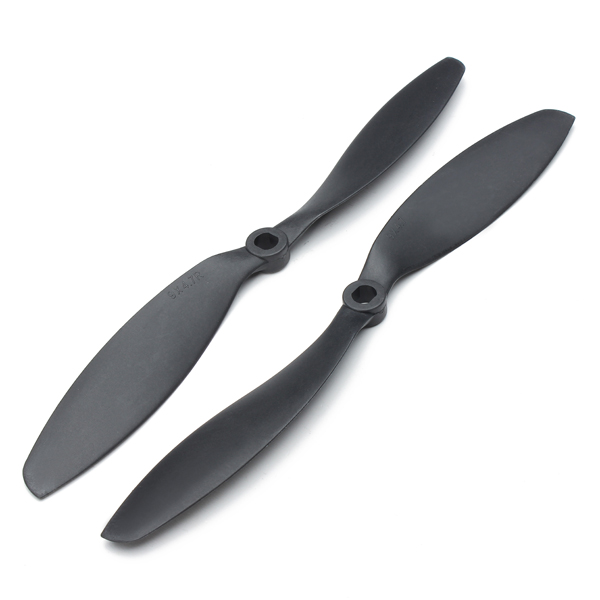

Pro-Range 9047 (9x4.7) ABS DJI Propellers 1CW+1CCW Pair - Black

₹161.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 9047 (9×4.7) ABS propellers are a matched 1CW+1CCW pair designed for DJI-style multirotor drones, offering a 9-inch diameter and 4.7-inch pitch for efficient lift and stable flight performance.

Features

  • 9-inch diameter with a 4.7-inch pitch for balanced thrust and efficiency.
  • Constructed from durable, lightweight ABS plastic for rigidity and impact resistance.
  • Features a 7.86mm shaft diameter compatible with standard DJI-style motor hubs.
  • Sold as a matched 1CW+1CCW pair for immediate installation on a quadcopter.
  • Epoxy resin cover enhances blade durability and structural integrity.

Out of stock

Description

The Pro-Range 9047 propellers are engineered for multirotor platforms requiring 9-inch blades, such as heavy-lift photography drones and larger DIY builds. The ABS construction provides an optimal balance between weight and stiffness, contributing to stable aerodynamic performance and good lifting capacity.

Designed with a standard DJI-compatible 7.86mm mounting hole, these propellers ensure a secure fit on a wide range of commercial and custom motor shafts. The aerodynamic profile is optimized to improve air-powered efficiency and aerofoil stability during flight.

Key Features

  • High-Endurance ABS Material: Offers excellent flexibility and impact resistance for durable operation.
  • Aerodynamic Blade Design: Engineered for greater aerodynamic efficiency and stable lift.
  • DJI-Compatible Hub: Features a 7.86mm shaft diameter with a flat side for secure, non-slip mounting.
  • Epoxy Resin Reinforcement: A protective cover enhances blade strength and longevity.
  • Matched Rotation Pair: Includes one clockwise (CW) and one counter-clockwise (CCW) propeller for a complete motor set.
  • Precise Engineering: 9x4.7 dimensions provide a reliable thrust profile for controlled flight.

Applications

  • Heavy-lift photography and videography drones utilizing 9-inch propellers.
  • DIY multirotor builds and aerial platform projects requiring stable, efficient lift.
  • DJI-style commercial drone models compatible with a 7.86mm motor hub.
  • Educational and experimental multirotor platforms for payload testing.

Technical Specifications

Diameter9 inch
Pitch4.7 inch
MaterialABS Plastic
ColorBlack
Shaft Diameter7.86 mm (7mm flat side, 8mm round side)
Rotation DirectionCW & CCW
Configuration1CW + 1CCW (1 Pair)
Blade Count2
Length (Approx.)230 mm
Weight (Per Prop)18 g

Frequently Asked Questions

What is the shaft diameter of these Pro-Range 9047 propellers?

These propellers feature a 7.86mm diameter mounting hole, designed with one flat side for compatibility with standard DJI-style motor shafts. This ensures a secure, non-slip fit when properly tightened.

Are these propellers sold as a pair or individually?

This listing is for a matched pair, including one clockwise (CW) and one counter-clockwise (CCW) rotation propeller. This configuration is sufficient for one motor on a standard quadcopter, so you would need four pairs for a complete set.

What type of multirotor are these 9-inch propellers best suited for?

The 9x4.7 size is ideal for larger drones requiring efficient lift, such as heavy-lift photography platforms, aerial mapping drones, and larger DIY multirotor builds. They are best paired with lower KV motors running on 4S to 6S LiPo batteries.

What material are these propellers made from?

They are constructed from ABS (Acrylonitrile Butadiene Styrene) plastic, which provides a good balance of rigidity, lightweight properties, and impact resistance. An epoxy resin cover is also applied to enhance durability.

Package Includes

  • 1 x Clockwise (CW) Rotation Propeller
  • 1 x Counter-Clockwise (CCW) Rotation Propeller

Additional Information

Weight 0.02 kg
Dimensions 4 × 25 × 1 cm
