SKU: DRFC-1663
📋 GST Invoice Available

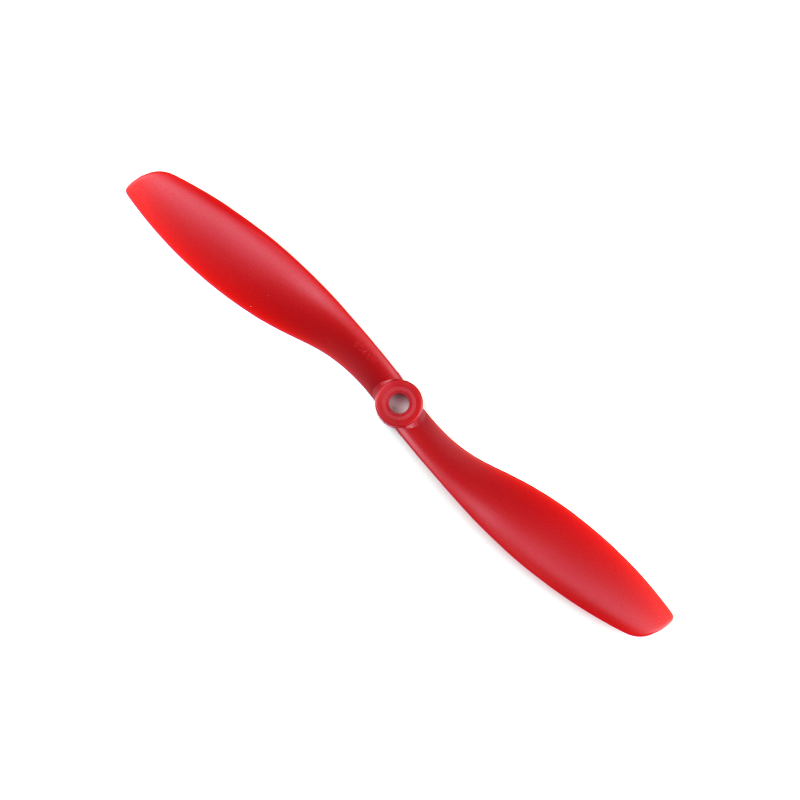

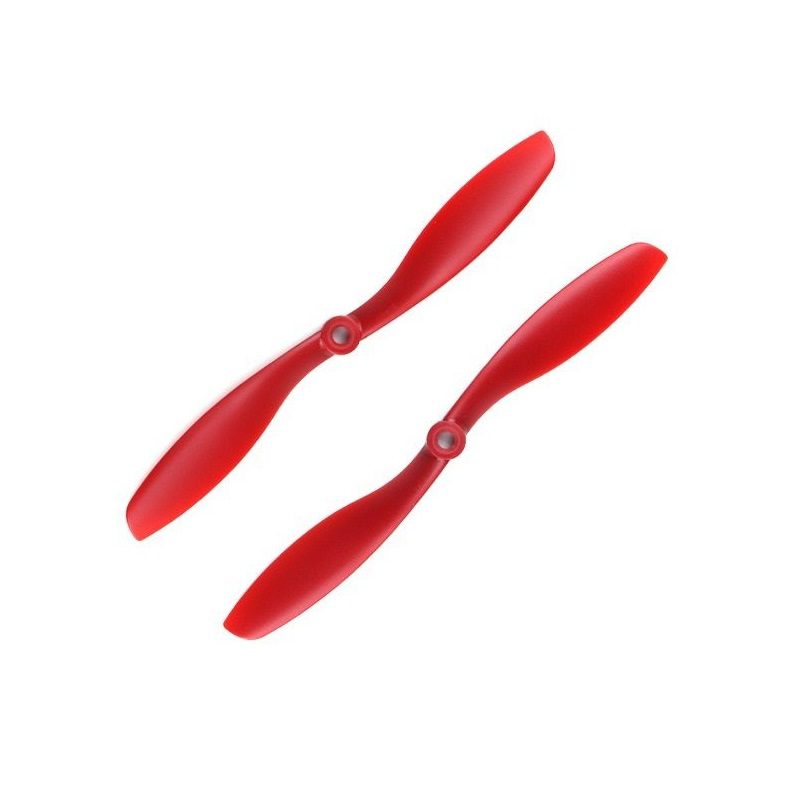

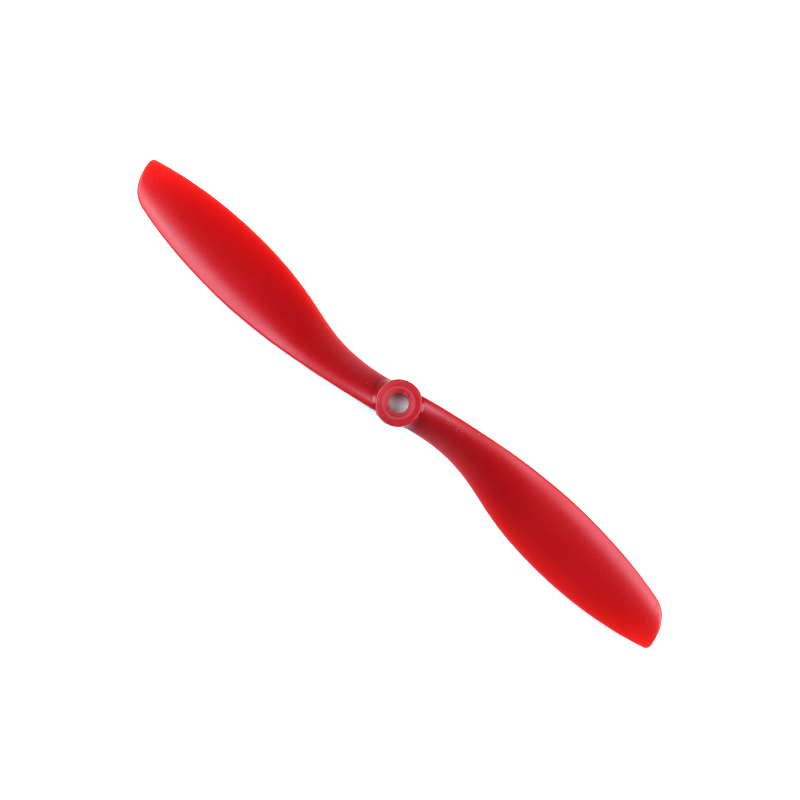

Pro-Range 8045 (8x4.5) ABS Propellers 1CW+1CCW Pair - Red

₹123.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 8045 (8×4.5) ABS propeller is a standard 2-blade design for 8-inch multirotor drones, offering a balanced thrust-to-efficiency ratio for general-purpose flight and aerial photography platforms.

Features

  • 8-inch diameter with 4.5-inch pitch for balanced thrust and efficiency.
  • Constructed from durable ABS plastic for impact resistance.
  • Includes one clockwise (CW) and one counter-clockwise (CCW) propeller per pair.
  • Features a 9.5mm bore for direct mounting on common 8-inch motor shafts.
  • Lightweight 18-gram design helps optimize flight time and motor response.

Out of stock

Description

The Pro-Range 8045 propellers are engineered for 8-inch multirotor frames, providing a reliable thrust solution for aerial photography and general flight applications. The 4.5-inch pitch offers a solid middle ground between aggressive thrust and efficient cruising, making them suitable for a variety of motor KV and battery cell configurations.

Manufactured from ABS plastic, these propellers deliver a high-value performance-to-weight ratio with good durability. The standard 2-blade design minimizes aerodynamic drag and is compatible with a wide range of flight controllers and ESC timing settings without requiring specialized tuning.

Key Features

  • Balanced 8x4.5 Design: Optimized for efficient thrust generation and stable flight characteristics on 8-inch drone platforms.
  • ABS Plastic Construction: Provides a resilient and lightweight structure capable of withstanding minor impacts and vibrations.
  • Direct 9.5mm Bore: Simplifies installation on motors with matching shaft diameters, eliminating the need for reducers in most cases.
  • Matched CW/CCW Pair: Ensures balanced thrust and yaw authority for standard multirotor configurations.
  • Precision-Molded Blades: Designed for consistent performance and reduced harmonic vibration across the RPM range.

Applications

  • 8-inch aerial photography and videography drones requiring stable, efficient flight.
  • General-purpose multirotor builds and DIY drone projects with 8-inch motor-to-motor spacing.
  • Educational and training platforms where durable and cost-effective propellers are preferred.

Technical Specifications

Diameter8 inches
Pitch4.5 inches
Blade Count2
Rotation Direction1CW + 1CCW (Pair)
Shaft Bore Diameter9.5 mm
MaterialABS Plastic
Weight (per propeller)Approx. 18 g
ColorRed

Frequently Asked Questions

What size motors are these 8045 propellers designed for?

These 8045 propellers are designed for 8-inch multirotor drones. They are best paired with medium to low KV brushless motors (typically in the 400-800KV range) commonly used on large frames for aerial photography or heavy-lift applications. The 9.5mm bore fits standard motor shaft sizes for this class.

Are these propellers balanced?

As with most mass-produced ABS propellers, minor balancing may be required for optimal performance, especially on high-performance or vibration-sensitive builds. It is recommended to dynamically balance the propellers and motor assembly for the smoothest flight and clearest video feed.

Can I use these on a 6S LiPo battery system?

Yes, these propellers can be used on systems up to 6S, provided the motor and Electronic Speed Controller (ESC) are rated for the corresponding current draw at that voltage. Always monitor motor and ESC temperatures during initial flights to ensure components are within safe operating limits.

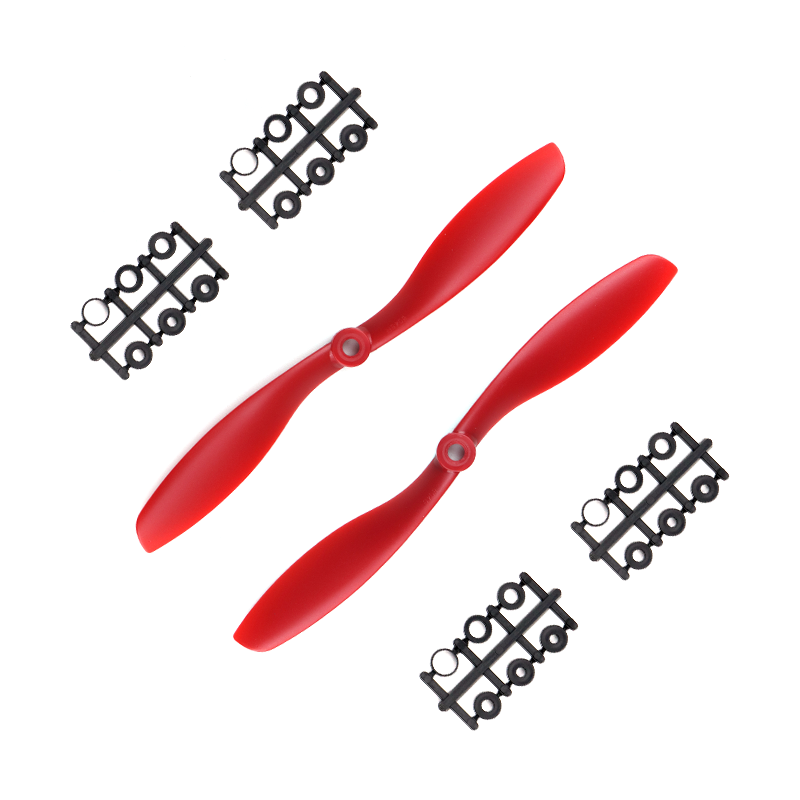

Package Includes

  • 1x Red 8045 (8x4.5) Clockwise (CW) Propeller
  • 1x Red 8045 (8x4.5) Counter-Clockwise (CCW) Propeller

Additional Information

Weight 0.02 kg
Dimensions 4 × 22 × 1 cm
