SKU: DRFC-1198
📋 GST Invoice Available

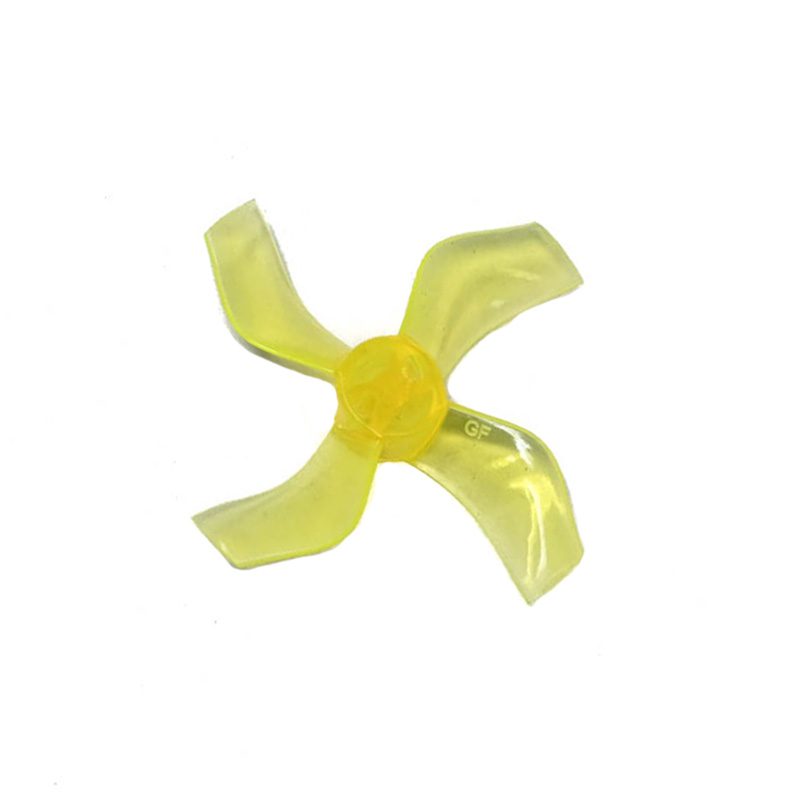

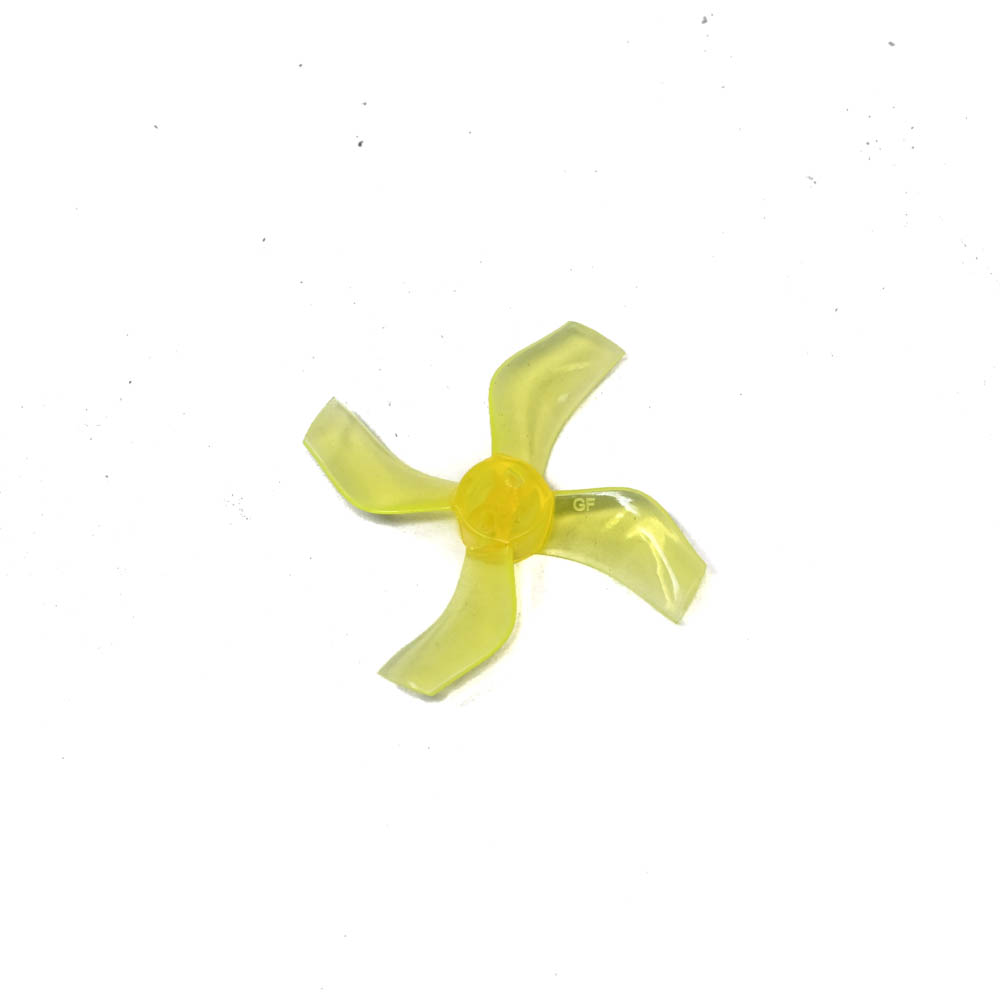

Pro-Range 1636 PC 4-Blade Propellers 4CW+4CCW - Clear Yellow

₹128.00 (Inclusive of all taxes)
Out of Stock

Pro-Range 1636 series 40mm quad-blade propellers constructed from durable polycarbonate (PC) with a 1mm center hole, designed for micro and nano drone builds requiring high thrust and stability.

Features

  • 40mm diameter with a 3.5-inch pitch for optimized thrust-to-weight ratio.
  • Constructed from durable polycarbonate (PC) for a high-strength, lightweight build.
  • 1mm center hole diameter compatible with common micro motor shafts.
  • Includes 4 clockwise (CW) and 4 counter-clockwise (CCW) propellers for a complete set.
  • Clear Yellow color provides visual distinction and style for your build.

Out of stock

Description

The Pro-Range 1636 propellers are engineered for micro and nano FPV drones, where a balance of durability and performance is critical. The 40mm diameter and 3.5-inch pitch are calculated to deliver efficient thrust for 1S to 2S LiPo powered systems, enhancing both punch-outs and flight time.

Manufactured from high-grade polycarbonate, these blades resist deformation and cracking under high-RPM stress, common in aggressive freestyle and racing maneuvers. The precise 1mm bore ensures a secure fit on standard 1mm motor shafts, minimizing vibration for smoother video feed and flight control.

Key Features

  • Quad-blade design (4 blades) increases disc loading for improved low-speed stability and control authority.
  • Polycarbonate (PC) material offers an excellent strength-to-weight ratio and impact resistance.
  • Precision-molded with consistent weight and balance across all blades in the pack.
  • Optimized 3.5-inch pitch provides a strong thrust curve suitable for acrobatic flight.
  • Vibrant Clear Yellow finish allows for easy visual orientation and adds a personalized touch to micro builds.

Applications

  • 1S and 2S micro FPV racing drones (e.g., 65mm to 75mm whoop frames).
  • Nano long-range or cinewhoop builds requiring efficient thrust.
  • Tiny whoop and toothpick-style drones using 0802 to 1103 brushless motors.
  • DIY micro drone projects where a 1mm motor shaft is standard.

Technical Specifications

Model Series1636
Blade Count4
MaterialPolycarbonate (PC)
Rotation DirectionCW & CCW
Center Hole Diameter1mm
Propeller Diameter40mm
Pitch3.5 inch
ColorClear Yellow

Frequently Asked Questions

What motor shaft size are these Pro-Range 1636 propellers compatible with?

These propellers are designed for a 1mm motor shaft diameter. They are compatible with most micro brushless motors, such as 0802, 1002, and 1103 sizes, which commonly feature a 1mm shaft. Ensure a secure fit with appropriate prop nuts or press-on adapters.

What is the advantage of a 4-blade design on a 40mm propeller?

A 4-blade design increases the disc loading compared to a 2-blade prop of the same diameter. This provides greater low-speed thrust and improved stability, which is beneficial for tight maneuvering in whoop ducts or for carrying slightly heavier payloads on micro builds, at the potential cost of slightly higher current draw.

Are these propellers suitable for 3S or higher voltage setups?

While made from durable polycarbonate, the 40mm size and 1mm mounting are primarily intended for 1S and 2S micro drone systems. Using them on higher-voltage (3S+) setups with powerful motors may exceed their structural limits and cause failure due to excessive RPM. Always match propeller size and material to your motor's KV and intended voltage.

Package Includes

  • 4 x Pro-Range 1636 PC 4-Blade Propellers (Clockwise Rotation)
  • 4 x Pro-Range 1636 PC 4-Blade Propellers (Counter-Clockwise Rotation)
  • Color: Clear Yellow

Additional Information

Weight 0.1 kg
Dimensions 10 × 10 × 5 cm
