SKU: DRFC-1607
📋 GST Invoice Available

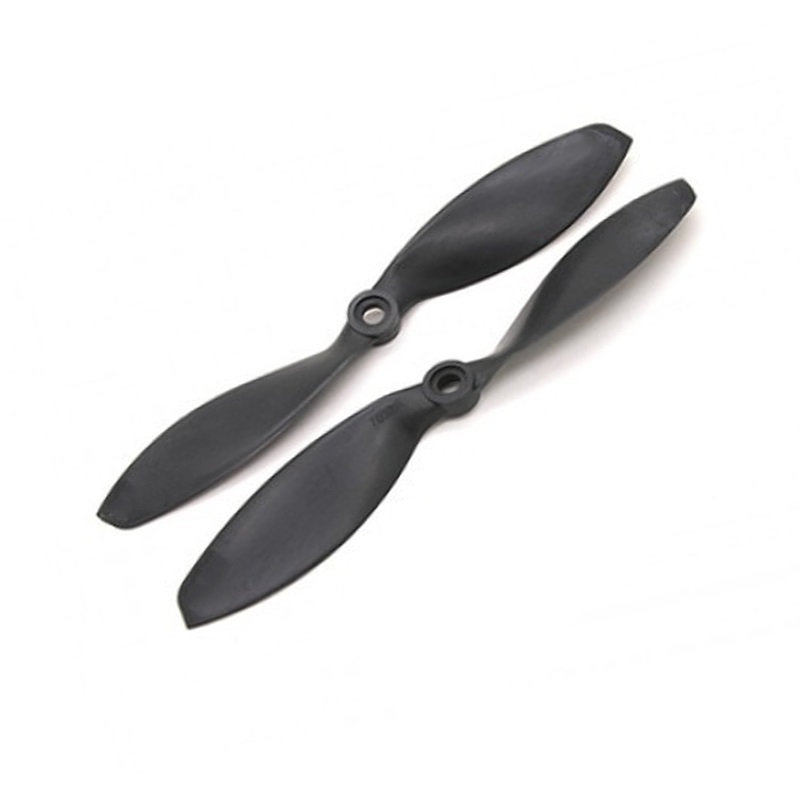

Pro-Range 1347 (13x4.7) Carbon Nylon Propellers 1CW+1CCW Pair - Black

₹339.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range 1347 (13×4.7) carbon nylon propellers are a 1CW+1CCW pair designed for large multirotor and drone applications, offering a balance of rigidity and impact resistance for stable, efficient flight.

Features

  • 13-inch diameter with 4.7-inch pitch for high thrust and lifting capacity.
  • Carbon nylon composite construction provides durability and flex resistance.
  • Includes a comprehensive set of plastic reducers (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm) for versatile motor shaft compatibility.
  • 9.5mm central bore with reinforced hub for secure mounting.
  • Optimized aerofoil design aims to improve aerodynamic efficiency and flight stability.

Out of stock

Description

Engineered for larger multirotor platforms, the Pro-Range 1347 propellers feature a 13×4.7 size profile that generates substantial thrust for lifting heavy payloads or achieving stable aerial photography. The carbon nylon material blend is chosen to deliver a high strength-to-weight ratio, resisting deformation under load while providing some impact absorption.

The propellers come as a matched clockwise and counterclockwise pair, essential for standard multirotor configurations. The included multi-size reducer set ensures compatibility with a wide range of large brushless motor shaft diameters, from 3mm up to 8mm, making them a versatile component for various DIY and commercial drone builds.

Key Features

  • Carbon-reinforced nylon construction for enhanced rigidity and fatigue resistance.
  • Epoxy resin coating on the blades for improved surface finish and environmental protection.
  • Large 9.5mm mounting bore with a reinforced hub area for increased durability.
  • Includes a full adapter set (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm) for broad motor compatibility.
  • Aerodynamic blade profile designed for efficient thrust generation and reduced vibration.
  • Matched 1CW+1CCW pair ensures proper counter-rotation for stable multirotor flight.
  • Precision-molded for consistent weight and balance across the pair.

Applications

  • Large DIY multirotor and hexacopter/octocopter builds for aerial photography and videography.
  • Heavy-lift drone platforms requiring 13-inch propellers for payload capacity.
  • Agricultural or mapping drones where stable, efficient flight with larger props is needed.
  • Experimental and educational large-scale multirotor projects.

Technical Specifications

Model1347
Diameter13 inches
Pitch4.7 inches
Rotation Direction1 CW + 1 CCW (Pair)
Shaft Diameter (Bore)9.5 mm
Propeller Length324 mm
Weight (per pair)50 g
MaterialCarbon Nylon Composite
Included Reducers3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm

Frequently Asked Questions

What motor shaft sizes are these 13-inch propellers compatible with?

The propellers have a 9.5mm central bore. They include a full set of plastic reducer adapters to fit motor shafts measuring 3mm, 3.17mm (1/8"), 4mm, 5mm, 6mm, and 8mm in diameter. This makes them compatible with a wide range of large brushless motors used in heavy-lift and aerial photography drones.

Are these propellers suitable for 6S or high-RPM applications?

While the carbon nylon construction offers good rigidity, for extremely high-RPM applications on powerful 6S or 8S systems, it is critical to ensure your motor KV and voltage combination does not exceed the propeller's maximum safe RPM. Always balance the props and inspect for stress or cracks after high-load flights.

Do I need to balance these Pro-Range propellers before use?

It is a best practice to dynamically balance all propellers, especially larger ones like these 13-inch models, before installation. Proper balancing significantly reduces vibration, leading to smoother video footage, less strain on motors and bearings, and improved overall flight controller performance and flight stability.

Package Includes

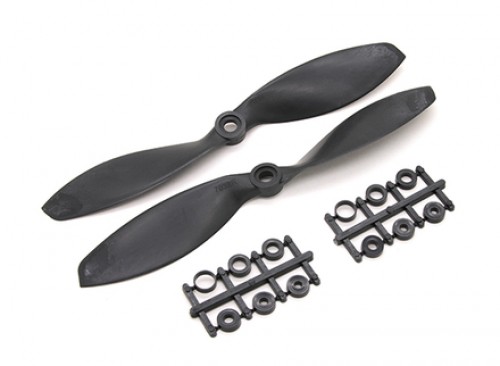

  • 1 x Clockwise (CW) Rotation Propeller (13x4.7)
  • 1 x Counter-Clockwise (CCW) Rotation Propeller (13x4.7)
  • 1 x Set of Plastic Reducer Adapters (3mm, 3.17mm, 4mm, 5mm, 6mm, 8mm)

Additional Information

Weight 0.055 kg
Dimensions 30 × 4 × 2 cm
