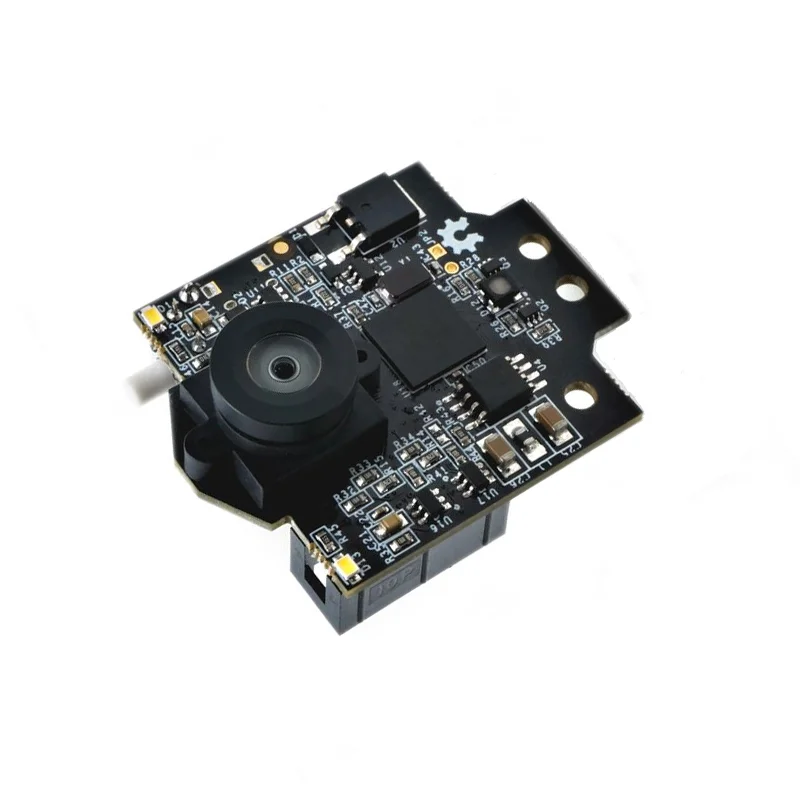

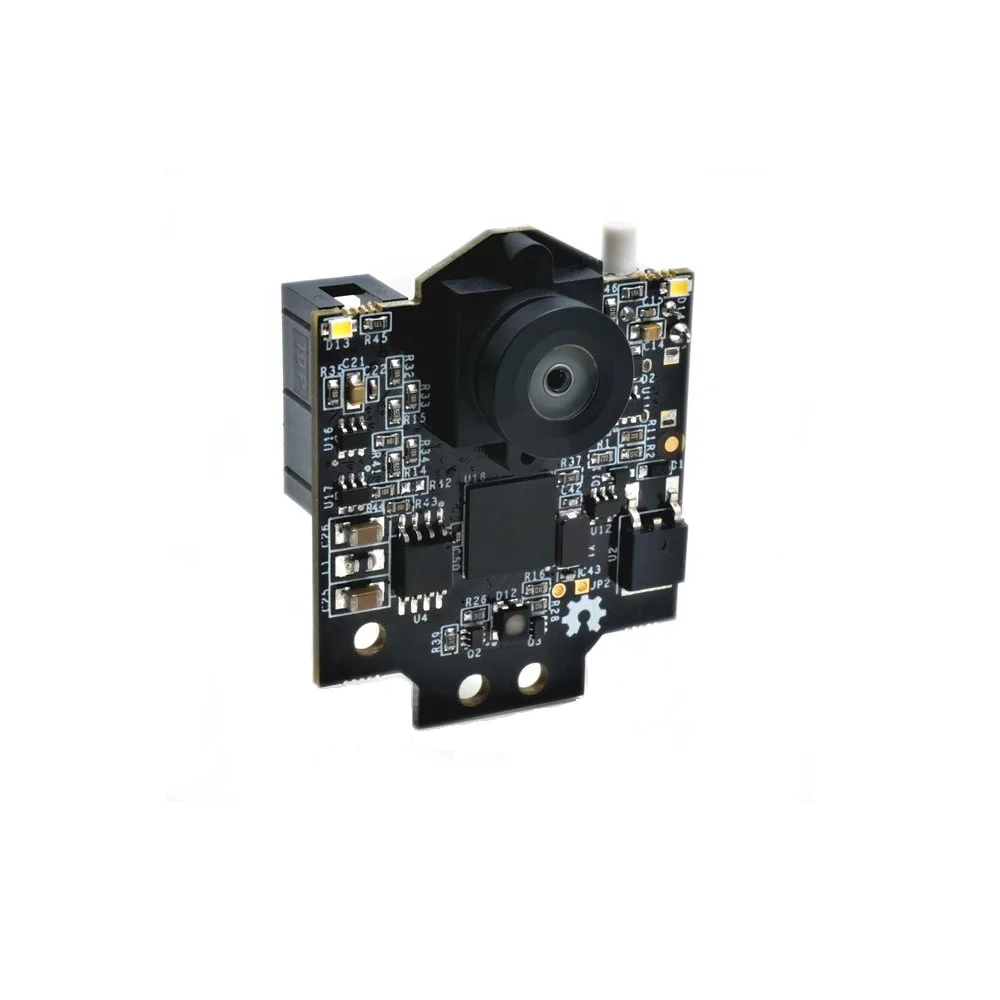

Pixy 2.1 Smart Vision Sensor Object Tracking Camera
The Pixy 2.1 is a smart vision sensor featuring an NXP Semiconductors LPC4330 dual-core processor and an Aptina MT9M114 image sensor for real-time object tracking, line following, and color detection at 60 FPS. It connects via USB or direct 6-10V input and is programmable with Arduino, Raspberry Pi, and other microcontrollers.
Features
- High-speed 60 FPS vision processing powered by a dual-core NXP Semiconductors LPC4330 204 MHz processor.
- Wide 80° horizontal field-of-view M12 lens with adjustable focus and replaceable mount.
- Real-time color-based object detection, line following, intersection, and barcode recognition.
- Low-latency communication via SPI, I2C, UART, or USB with Arduino/Raspberry Pi libraries.
- Flexible 5V USB or 6-10V unregulated power input with integrated LED lighting.
Out of stock
The Pixy 2.1 Smart Vision Sensor integrates a dedicated image flow processor and Aptina MT9M114 sensor to perform real-time computer vision tasks without burdening the host microcontroller. Its upgraded 80-degree horizontal field-of-view lens provides greater environmental coverage with minimal chromatic distortion, while the adjustable M12 mount allows for focus tuning from 0.25 inches to infinity.
Operating at 60 frames per second, the module executes onboard tracking algorithms for color signatures, lines, intersections, and small barcodes, outputting processed data over SPI, I2C, UART, or USB. This offloads intensive pixel processing from the main controller, making it ideal for responsive robotics and automated systems requiring low-latency visual feedback.
Additional Information
| Weight | 0.07 kg |
|---|---|
| Dimensions | 3.8 × 4.2 cm |
