Pimoroni LiPo/LiIon Power Supply SHIM for Raspberry Pi

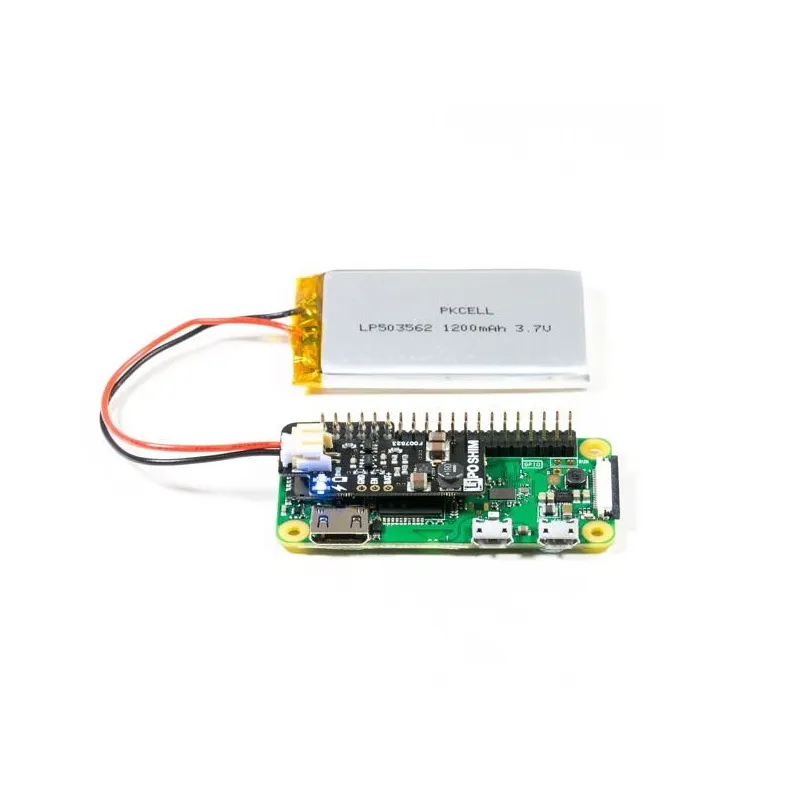

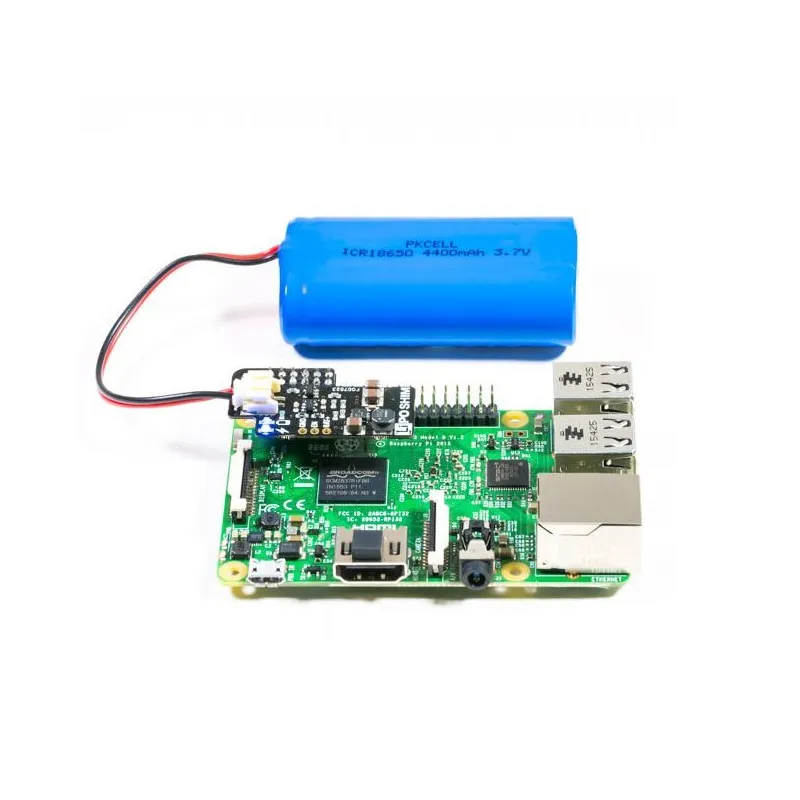

The Pimoroni LiPo/LiIon Power Supply SHIM provides a compact and efficient power solution for all 40-pin header Raspberry Pi models. Designed to sit low on your Pi, it enables portable projects with LiPo/LiIon batteries, requiring some soldering for installation.
Features
- Ultra-compact, 0.8mm thick PCB designed for low-profile Raspberry Pi integration.
- Integrates a highly efficient TPS61232 step-up boost converter, delivering up to 1.5A continuous current.
- Features power-on and battery-low (at 3.4V) LED indicators for clear status monitoring.
- Implements automatic shutdown at 3.0V to ensure LiPo/LiIon battery longevity and safety.
- Compatible with all Raspberry Pi models featuring a standard 40-pin GPIO header.
Out of stock

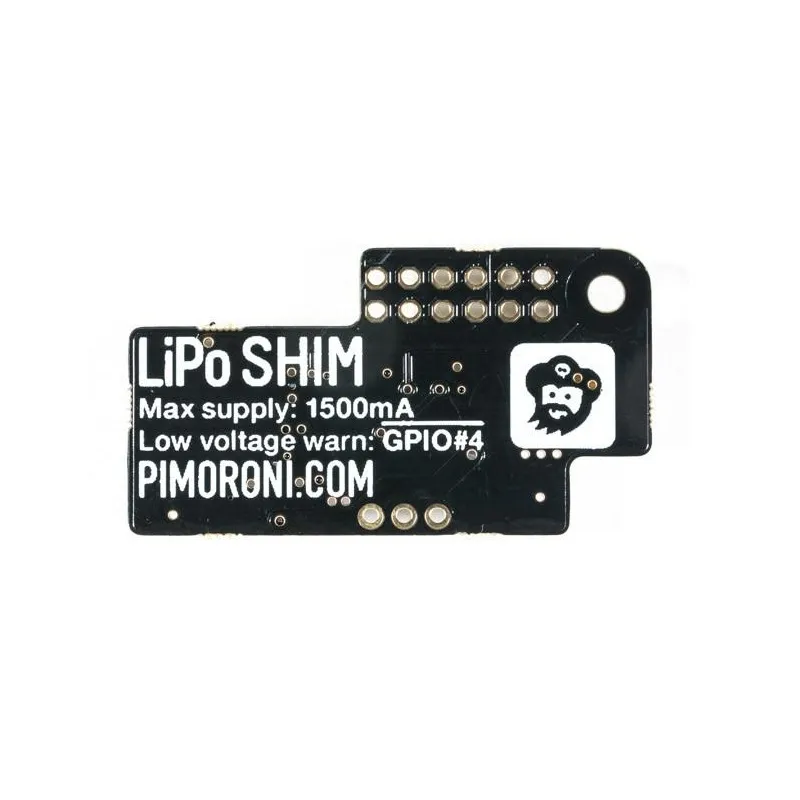

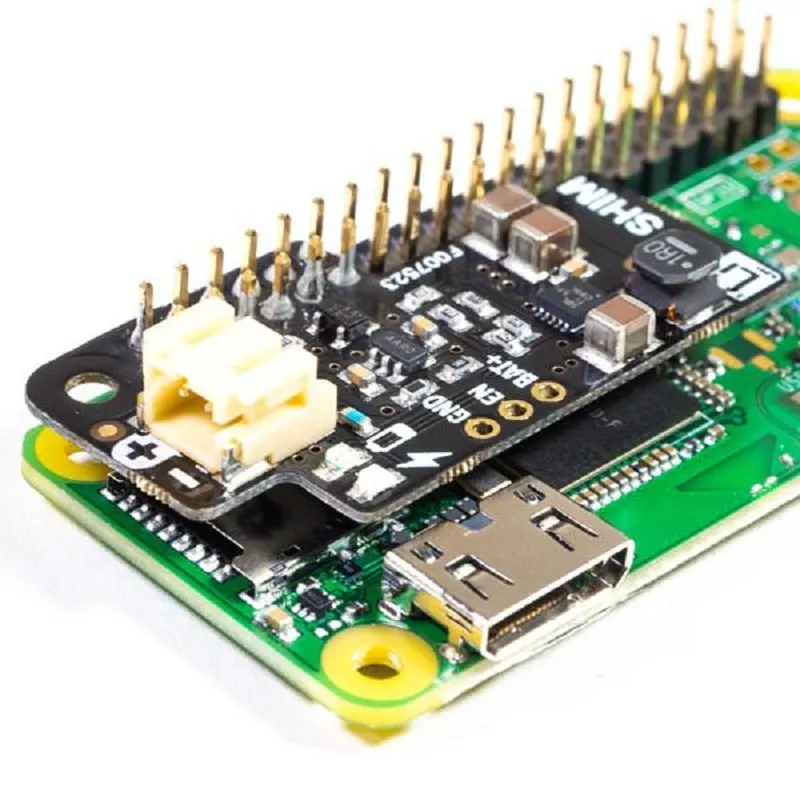

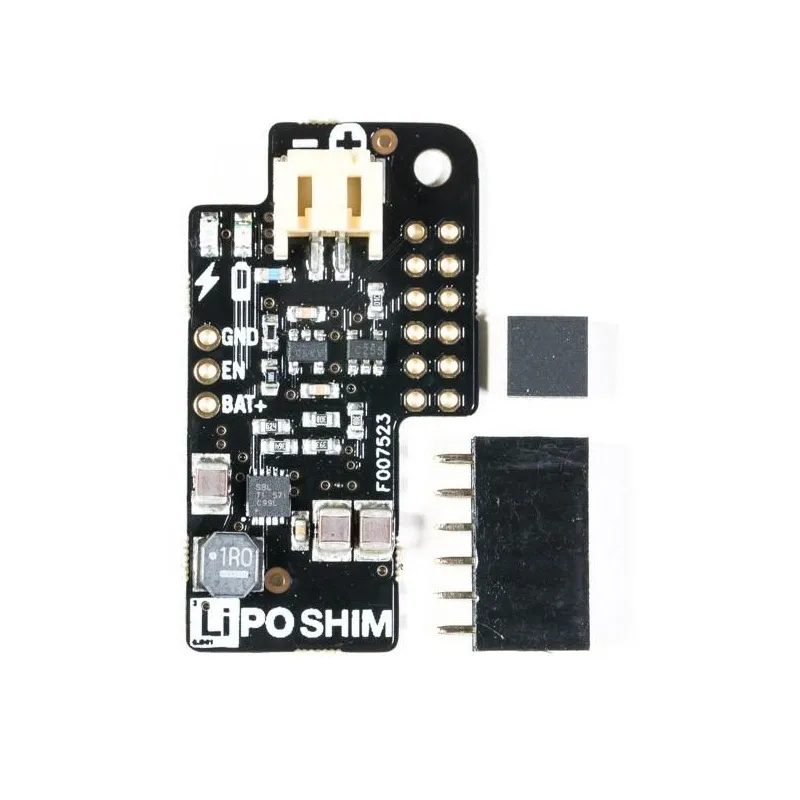

The Pimoroni LiPo/LiIon Power Supply SHIM addresses the challenge of providing a discrete and efficient power solution for mobile Raspberry Pi projects. Its ultra-compact, 0.8mm thick PCB is engineered to sit as low as possible on the Raspberry Pi’s GPIO header, offering a choice between direct soldering for a permanent, space-saving setup or using the included 2×6 female header for a removable connection.

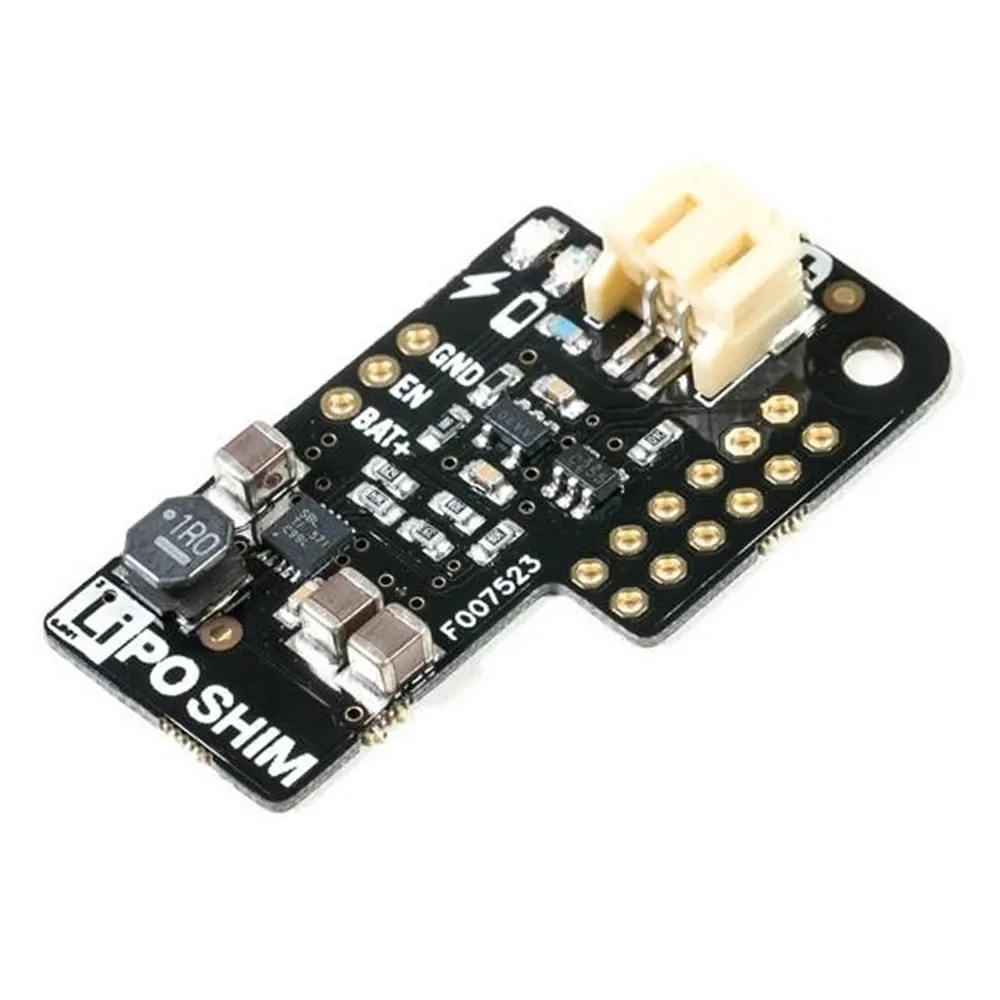

At its core, the SHIM utilizes the Texas Instruments TPS61232 step-up boost converter, renowned for its impressive efficiency of up to 96%. This ensures reliable power delivery for demanding applications, supplying up to 1.5A of continuous current. Essential features include integrated power-on and low battery indicator LEDs, along with a quiescent current of just 15µA during shutdown. For advanced integration, VBAT+, GND, and EN pins are broken out, allowing for alternative power injection methods or external control over the power output.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 4 × 2.2 × 1 cm |
