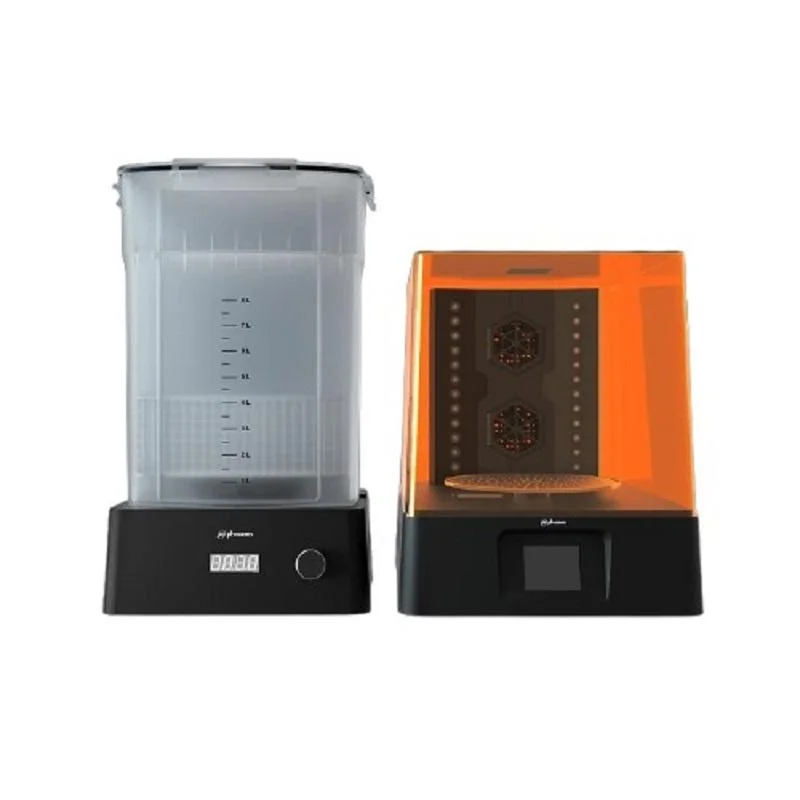

Phrozen Wash & Cure Kit

₹25,000.00 (Inclusive of all taxes)
Out of Stock

This Phrozen Wash & Cure Kit offers a complete post-processing solution for resin 3D prints, integrating efficient vortex cleaning and thorough 360° UV curing to achieve professional-grade finishes for models up to 10 inches.

Features

  • Vortex Cleaning Technology: Utilizes a powerful bottom propeller to gently yet effectively remove uncured resin, preserving intricate print details.
  • Generous Capacity: Accommodates large build plates, including 10-inch models such as those from the Phrozen Sonic Mighty 8K.
  • Integrated Drying Function: Dual fans enable simultaneous drying and curing, significantly streamlining your post-processing workflow.
  • Comprehensive UV Curing: Features 405nm UV lights positioned for complete 360° exposure, eliminating sticky, unevenly cured surfaces.
  • Optimized Workflow: Combines washing, drying, and curing into a single, compact system, reducing overall post-processing time.

Out of stock

Description

The Phrozen Wash & Cure Kit provides a comprehensive, dual-function system engineered to streamline and elevate the post-processing of resin 3D prints. This integrated solution combines both thorough washing and effective UV curing into a single, compact unit, proving indispensable for engineers and makers seeking to achieve consistently high-quality, professional finishes on their resin-based models. It directly addresses the common challenges of residual resin and incomplete curing, ensuring prints are ready for immediate use or further finishing.

Equipped with a powerful vortex cleaning system, the kit employs an effective bottom propeller to meticulously remove uncured resin from models without compromising delicate details, even on large prints. The system’s generous capacity supports build plates up to 10 inches, including those from advanced machines like the Phrozen Sonic Mighty 8K. Following cleaning, prints transition smoothly into the curing station, which utilizes strategically placed 405nm UV lights for comprehensive 360° exposure, guaranteeing an even cure and eliminating the sticky surfaces often associated with inadequate post-processing.

Further enhancing efficiency, the Phrozen Wash & Cure Kit features an integrated fan drying mode, allowing models to be transferred directly from washing to a combined drying and curing cycle. This capability significantly reduces overall post-processing time and manual intervention, enabling a more productive and reliable workflow for rapid prototyping, intricate miniature production, or precise dental applications. This robust system is designed for longevity and consistent performance, ensuring every resin print meets exacting standards.

Key Features

  • Integrated Dual-Function System: Combines an 8L washing station and a UV curing station into a single, streamlined unit, optimizing the resin 3D printing post-processing workflow.
  • High-Efficiency Vortex Washing: Employs a powerful bottom-mounted propeller to create a vigorous vortex, effectively removing uncured resin from intricate model surfaces without damage.
  • Wide Build Plate Compatibility: Generous washing and curing volumes accommodate larger 3D prints and build plates, including up to 10-inch models such as those from the Phrozen Sonic Mighty 8K.
  • Optimized 360° UV Curing: Features 405nm UV lights strategically positioned at the back and beneath the rotating turntable, ensuring complete and uniform curing across the entire model surface.
  • Integrated Dual-Fan Drying: Dedicated fan drying mode allows for direct transfer of washed models to the curing station for simultaneous drying and curing, enhancing efficiency and reducing handling.
  • Intuitive Timer Controls: Adjustable timers for both washing (0-30 minutes) and curing (0-2 hours) allow for precise process customization based on model size, resin type, and desired finish.
  • Durable Construction: Built with robust materials to withstand frequent use in demanding workshop or professional environments, ensuring long-term reliability.

Technical Specifications

Product NamePhrozen Wash & Cure Kit
Input Voltage (AC)100-240V

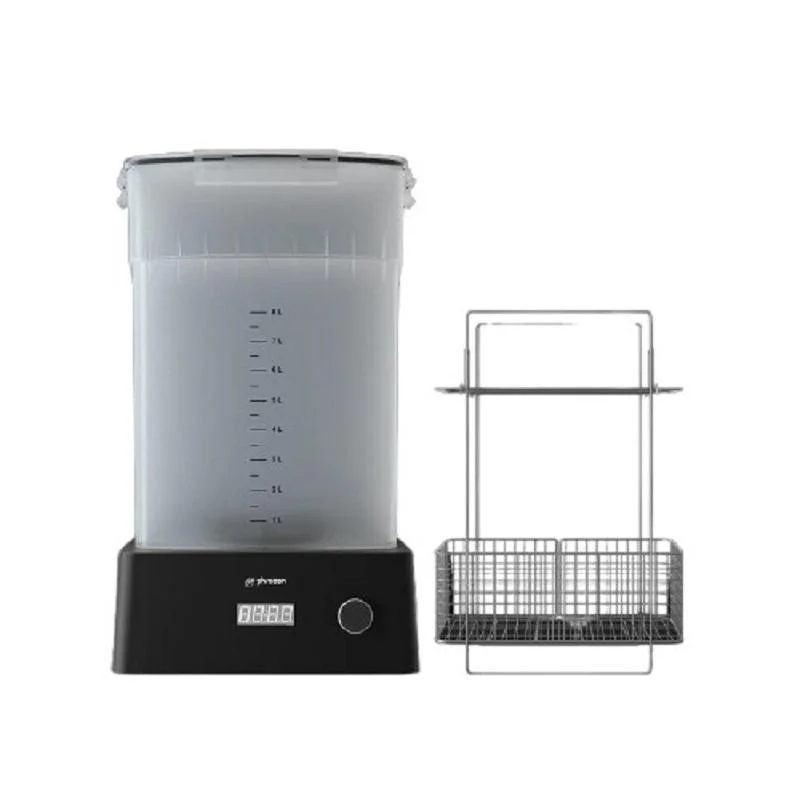

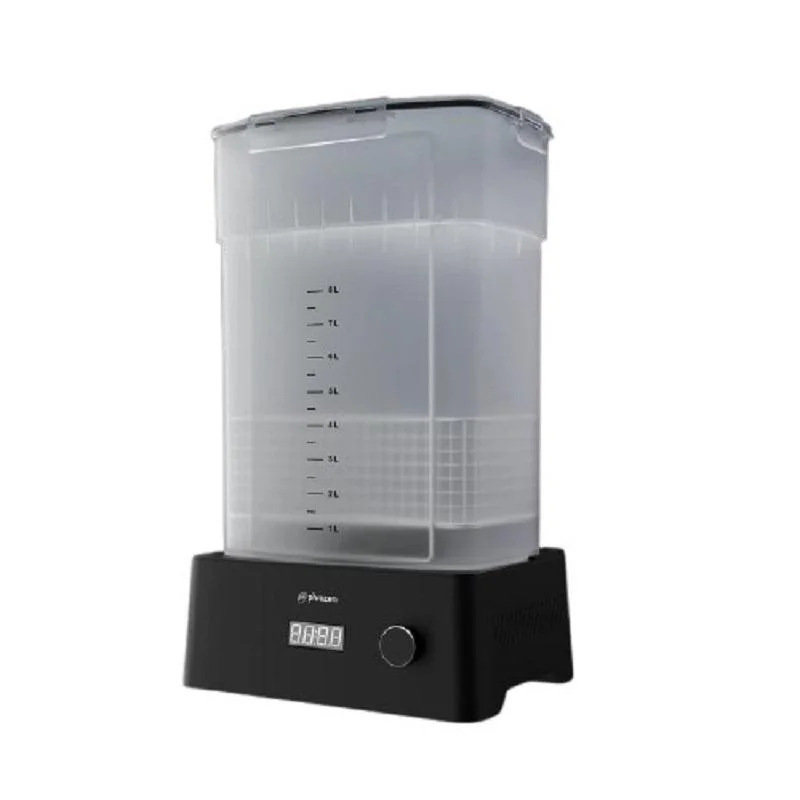

Washing Station - Post Printing Cleaner
Rated Power48 W
Input (DC)24 VDC
Dimensions (L x W x H)27.7 x 20.7 x 46.7 cm
Washing Bucket Volume8 L
Maximum Model Size (L x W x H)21.8 x 12.3 x 23.5 cm
Weight3.5 kg
Timer Range0 - 30 minutes

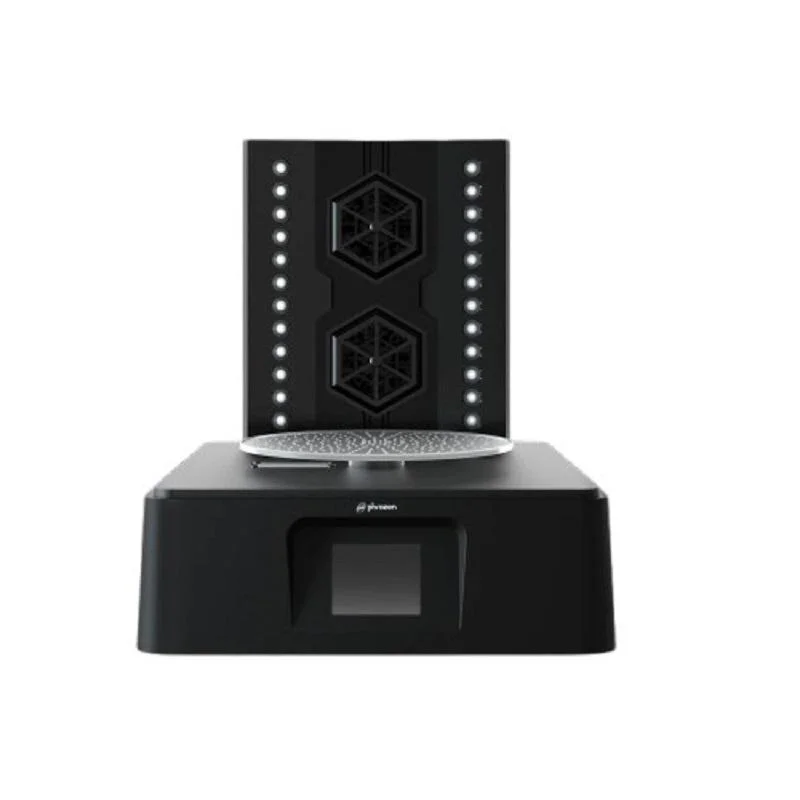

Curing Station - UV Cure Lamp
Rated Power48 W
Input (DC)24 VDC
Dimensions (L x W x H)35.4 x 30.9 x 36.8 cm
Turntable Size19.6 cm
Maximum Model Size (Diameter x H)25 x 23.5 cm
Weight3.9 kg
Timer Range0 - 2 hours
LED Wavelength405 nm
Shipping Information
Shipping Weight12 kg
Shipping Dimensions (L x W x H)42 x 39 x 59 cm

Frequently Asked Questions

What is the maximum model size this kit can process?

The washing station accommodates models up to 21.8 x 12.3 x 23.5 cm (L x W x H). This ensures sufficient space for cleaning most common resin 3D prints effectively within the 8L washing bucket volume, providing thorough post-processing for various applications.

What are the power requirements for the Phrozen Wash & Cure Kit?

Both the washing and curing stations operate on a 24 VDC input, with an AC input voltage range of 100-240V, and a rated power of 48 W for each unit. This ensures compatibility with standard electrical outlets globally, providing consistent and efficient operation.

How does the timer function for both washing and curing processes?

The kit features a unified timer range of 0-30 minutes, allowing precise control over both the washing and UV curing cycles. This flexibility enables users to optimize post-processing times based on resin type and model size, ensuring desired surface finish and material properties.

Can this kit handle different types of resin for post-processing?

Yes, the kit is designed for general resin 3D prints. The adjustable timer and 360° UV curing system allow for adaptation to various resin types, though specific resin manufacturers may recommend optimal curing times. The vortex cleaning effectively removes uncured resin.

Package Includes

  • 1 x Phrozen Washing Station - Post Printing Cleaner
  • 1 x Curing Station - UV Cure Lamp

Additional Information

Weight 12 kg
Dimensions 42 × 39 × 59 cm
