SKU: 3DDF-0474
📋 GST Invoice Available

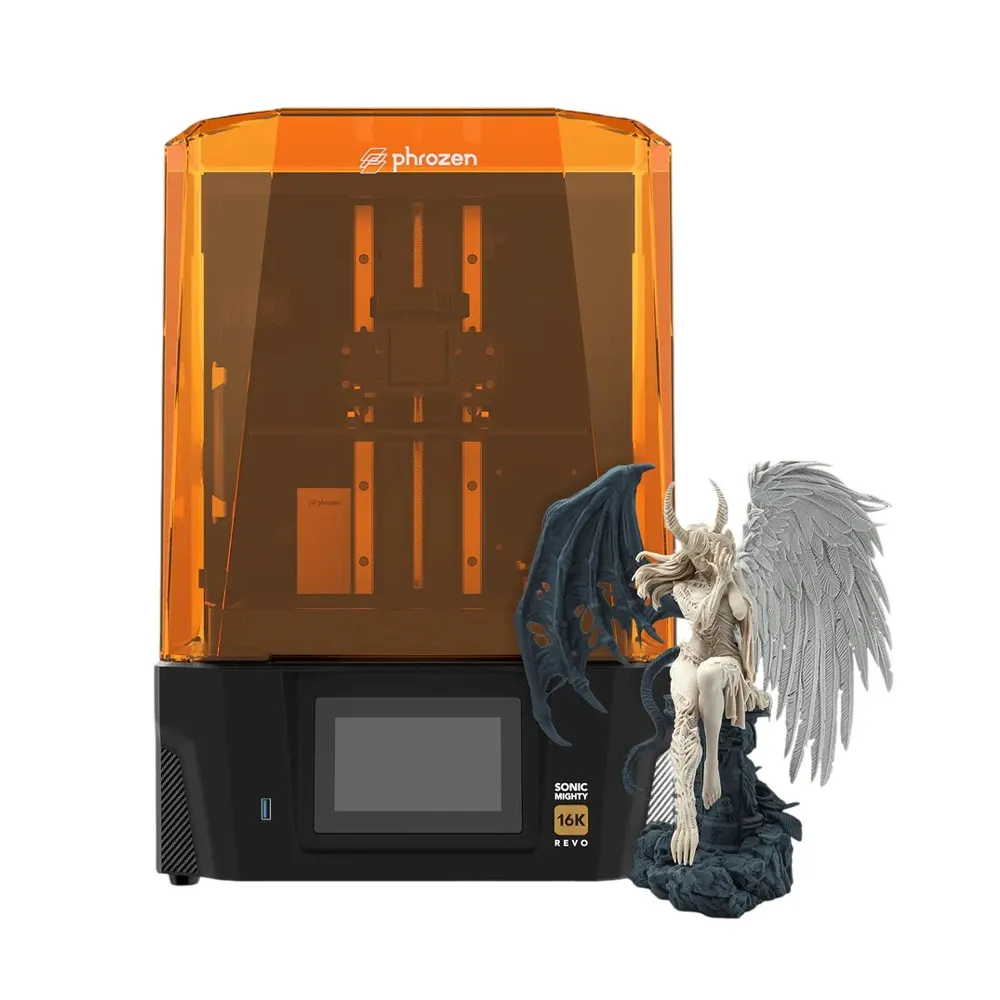

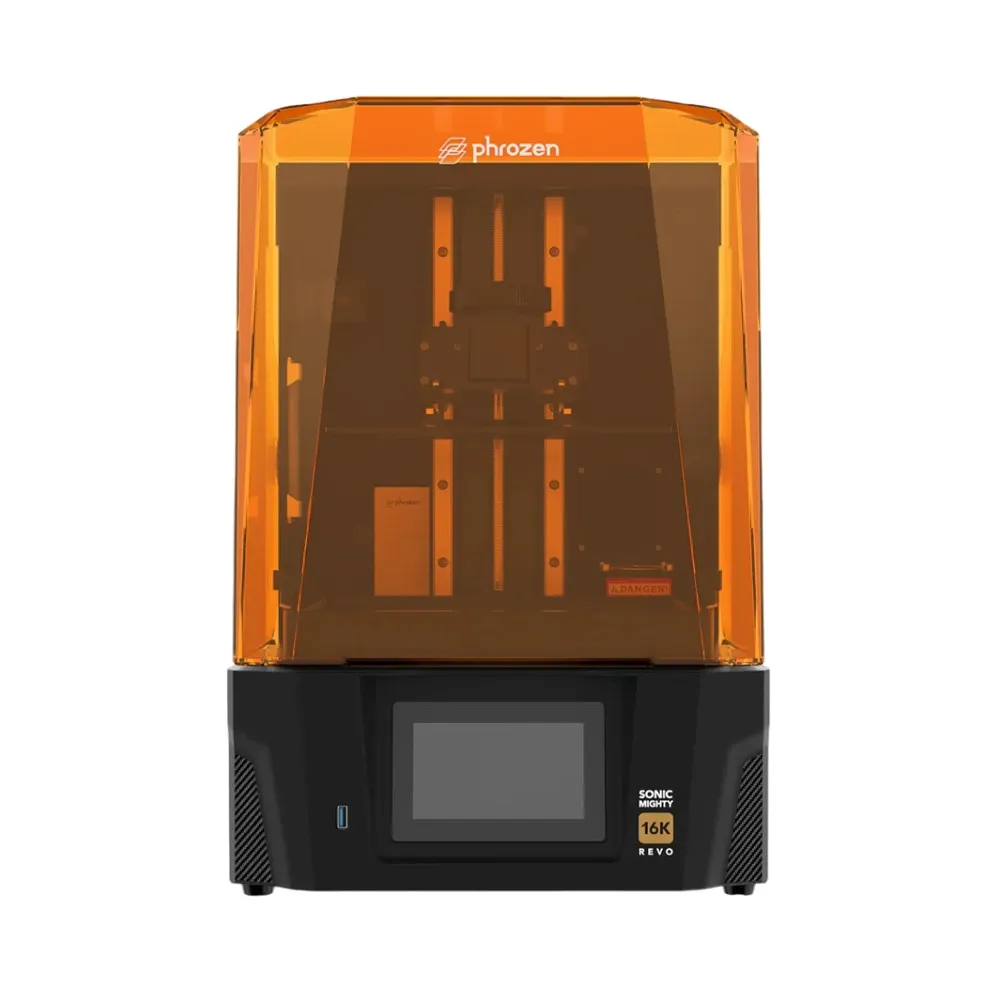

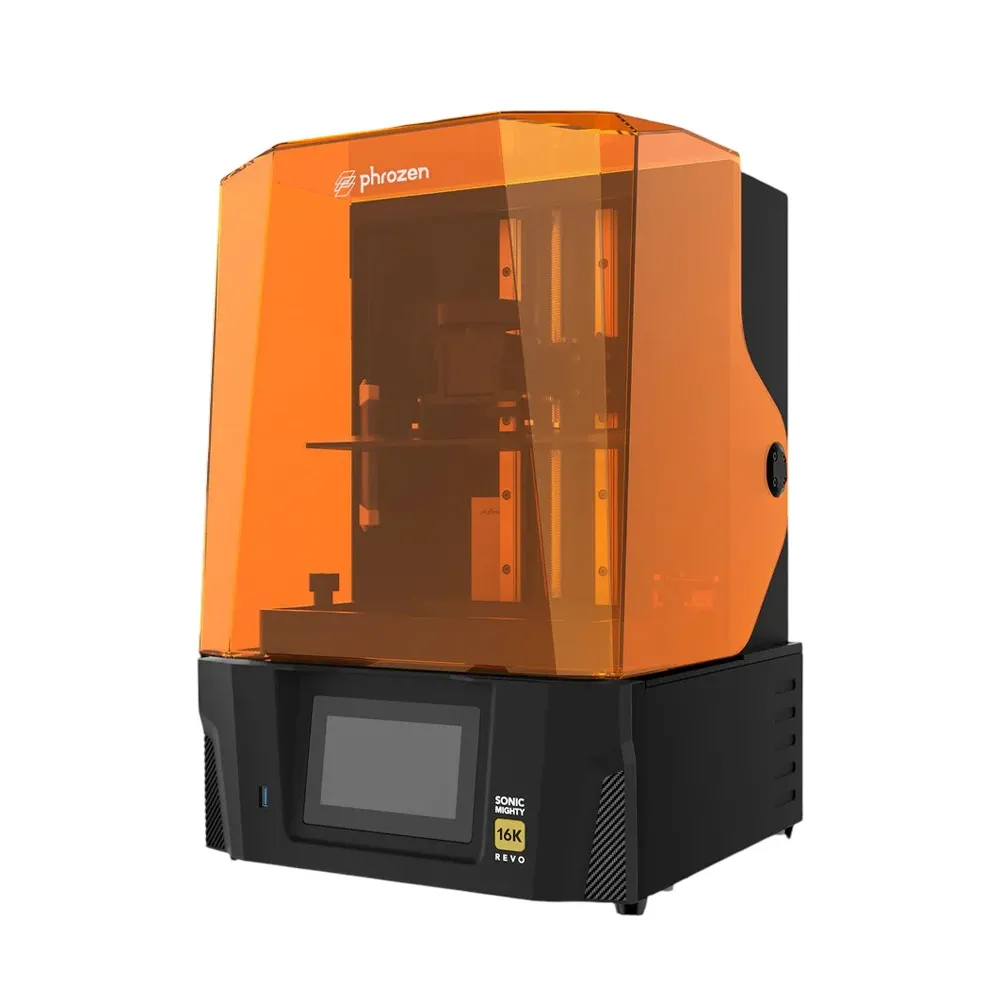

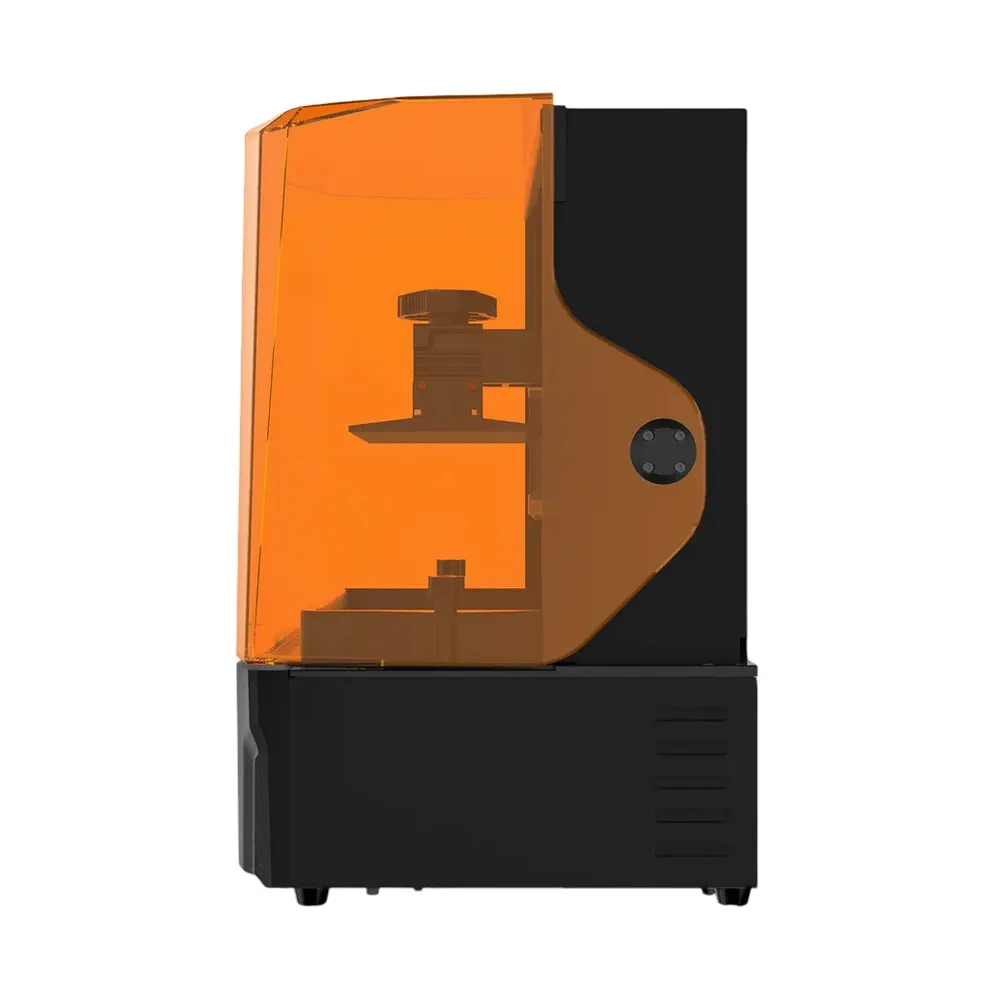

Phrozen Sonic Mighty Revo 16K 3D Printer

₹94,397.00 (Inclusive of all taxes)
Out of Stock

The Phrozen Sonic Mighty Revo 16K 3D Printer delivers exceptional detail with its 16K resolution (14 × 19 μm), making it ideal for precision resin printing across various applications. Its generous build volume of 211.68 × 118.37 × 235 mm ensures versatility for both small miniatures and larger prototypes.

Features

  • Achieve ultra-fine prints with industry-leading 16K resolution and 14 × 19 μm XY precision.
  • Utilize a spacious 211.68 × 118.37 × 235 mm build volume for versatile model creation, from miniatures to larger prototypes.
  • Benefit from enhanced print stability and accuracy, thanks to an aerospace-grade aluminum frame and dual-rail ball screw system.
  • Monitor and manage prints remotely with the Phrozen GO App, complemented by dual smart failure detection for reliable operation.

Out of stock

Description

The Phrozen Sonic Mighty Revo 16K is engineered as a high-performance resin 3D printer, targeting users who require exceptional detail and robust reliability. Its core strength lies in its 16K resolution, featuring a precise 14 × 19 μm pixel size, which translates into highly accurate, smooth-surface prints, ideal for intricate miniatures, fine jewelry, and demanding prototyping applications.

This printer’s generous build volume supports the efficient creation of both compact and expansive models. Enhanced by a formidable aerospace-grade aluminum frame and a dual-rail ball screw system, it ensures superior stability during extended print cycles. Integrated dual smart failure detection safeguards against errors, while assisted leveling streamlines the initial setup process. Additionally, the Phrozen GO App provides comprehensive remote monitoring and control capabilities, making it a compelling choice for professionals and serious hobbyists prioritizing precision and productivity.

Key Features

  • Ultra-High 16K Resolution: Delivers exceptional detail and minimal layer lines with an XY resolution of 14 × 19 μm for intricate models.
  • Spacious Build Volume: Offers a substantial printing area of 211.68 × 118.37 × 235 mm, accommodating both small and larger project scales efficiently.
  • Aerospace-Grade Durability: Constructed with a robust aluminum frame, ensuring long-term structural stability and consistent performance under demanding conditions.
  • Precision Z-Axis Control: Features a dual-rail system with a ball screw mechanism for highly accurate and wobble-free vertical movement, enhancing print quality.
  • Smart Print Protection: Incorporates dual smart failure detection to proactively minimize errors and optimize overall print success rates.
  • Remote Monitoring & Control: Seamlessly manage and track print progress 24/7 from anywhere via the intuitive Phrozen GO App.
  • Simplified Calibration: Equipped with assisted leveling functionality for quick and precise print platform setup, reducing preparation time.
  • Efficient Thermal Management: Integrates a 30°C chamber heater to maintain optimal resin temperatures, ensuring consistent curing and print reliability.

Technical Specifications

ModelSonic Mighty Revo 16K
Print TechnologyResin 3D Printer – LCD Type (MSLA)
LCD10.1" Mono LCD
XY Resolution14 × 19 μm (16K)
Light SourceLinear Projection LED Module
Light Intensity3900–5900 u ≥ 75%
Layer Thickness0.01 – 0.2 mm
Avg. Print Speed450 layers/hr
Max Print Speed676 layers/hr
Operating Screen5-inch Touch Panel
ConnectivityUSB, Wi-Fi, Ethernet
Built-in Memory8 GB
Rail SystemDual Rails (Ball Screw)
Build Volume (L×W×H)211.68 × 118.37 × 235 mm
Printer Dimensions (L×W×H)353 × 345 × 517 mm
Power Input100–240V, 50/60 Hz
Power Consumption240W
Operating SystemPhrozen OS
Chamber Heater30°C
Net Weight18 kg

Frequently Asked Questions

What is the native resolution and build volume of the Phrozen Sonic Mighty Revo 16K?

This printer features an impressive 14 × 19 μm (16K) XY resolution on a 10.1" mono LCD. Its generous build volume is 211.68 × 118.37 × 235 mm, suitable for detailed small models and larger prototypes efficiently.

What connectivity options are available for the Sonic Mighty Revo 16K?

The Phrozen Sonic Mighty Revo 16K offers versatile connectivity options including USB, Wi-Fi, and Ethernet. This allows for flexible file transfer and remote operation, enhancing workflow efficiency in various production environments for optimal user experience.

Can you describe the rail system and typical print speed of this 3D printer?

The Sonic Mighty Revo 16K utilizes a robust dual rail system with a ball screw for stable and precise Z-axis movement. It achieves an average print speed of 450 layers/hr, with a maximum speed of 676 layers/hr, ensuring efficient production.

What specific LCD technology powers the Phrozen Sonic Mighty Revo 16K?

The Phrozen Sonic Mighty Revo 16K employs a 10.1" Mono LCD, which is central to its MSLA (Masked Stereolithography Apparatus) print technology. This monochrome LCD offers superior light transmission and an extended lifespan compared to traditional RGB LCDs.

Package Includes

  • 1 x Phrozen Sonic Mighty Revo 16K 3D Printer

Additional Information

Weight 22.5 kg
Dimensions 60 × 50 × 50 cm
