SKU: 3DDF-0444
📋 GST Invoice Available

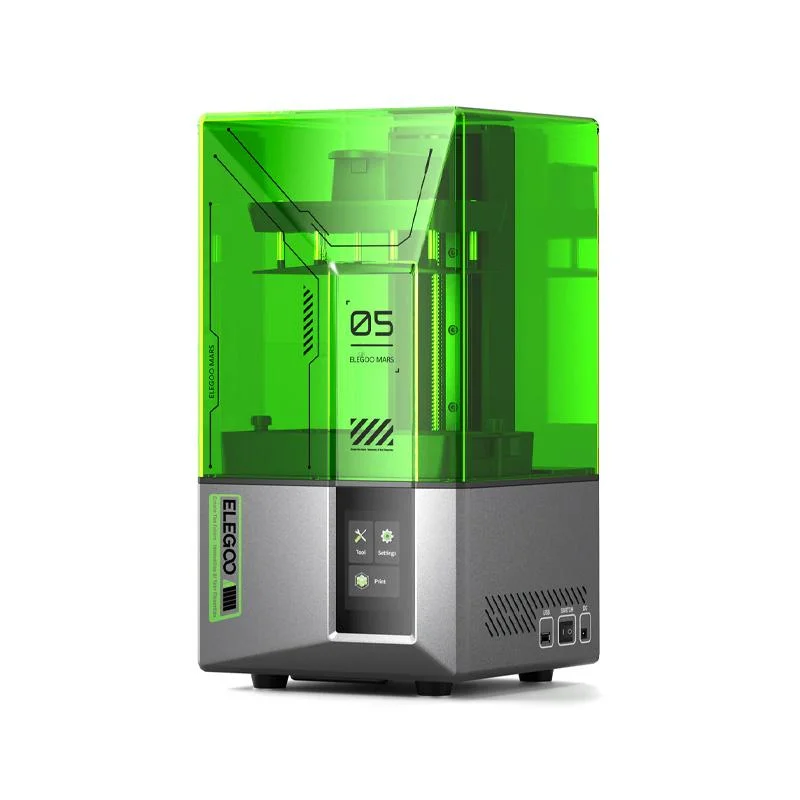

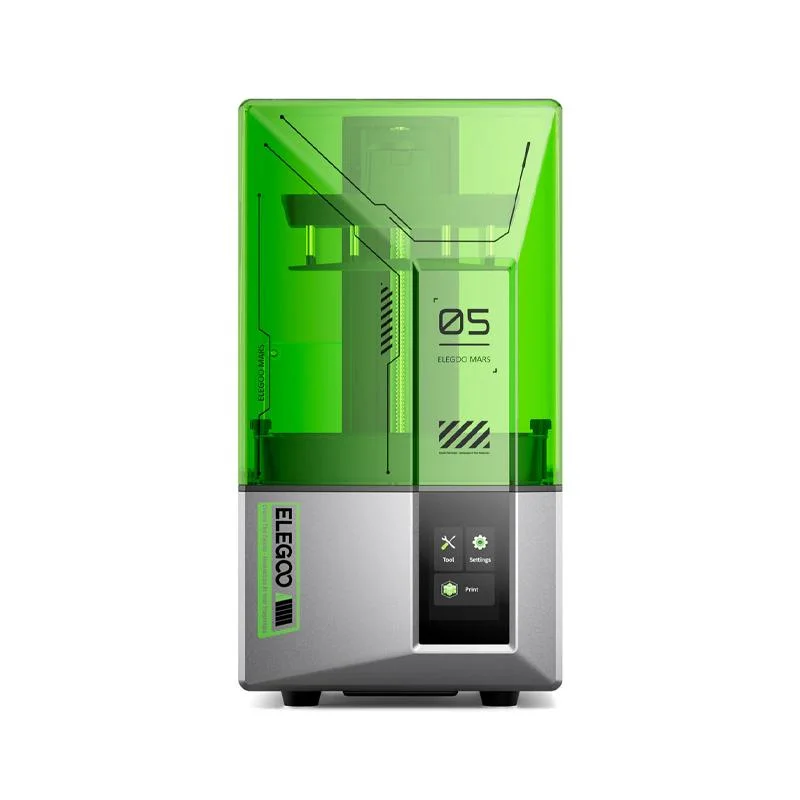

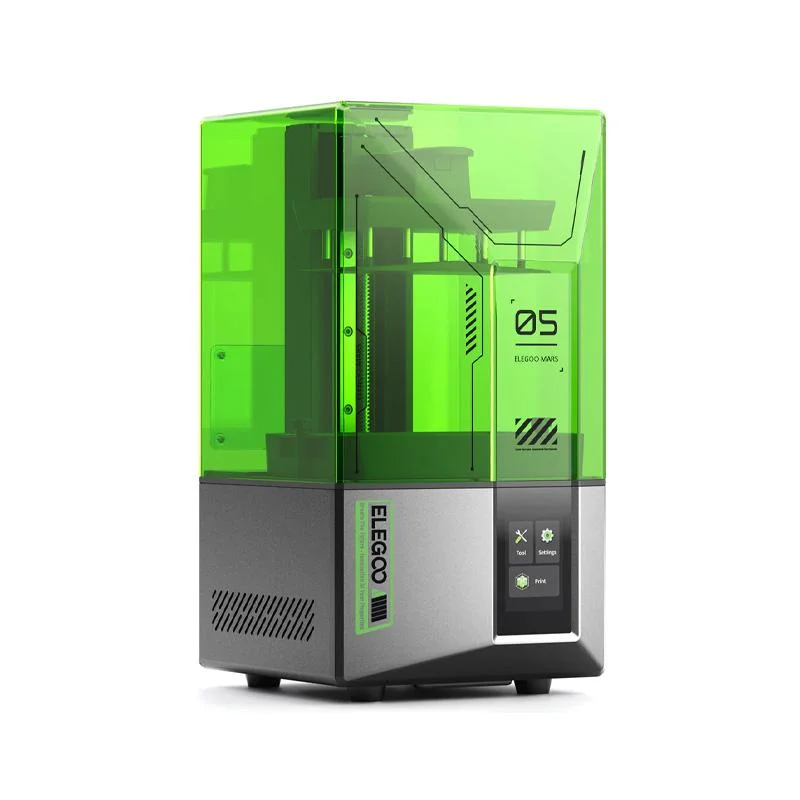

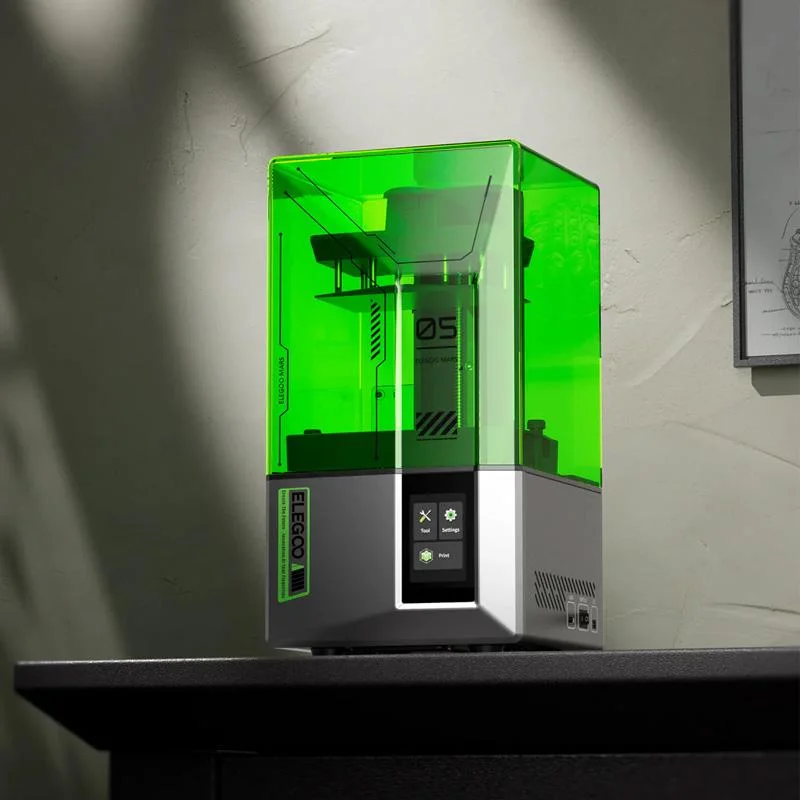

ELEGOO Mars 5 3D Printer

₹19,999.00 (Inclusive of all taxes)
Out of Stock

The ELEGOO Mars 5 is a high-performance MSLA 3D printer featuring a 6.6-inch 4K Mono LCD and a robust build volume of 143.43 x 89.6 x 150 mm³, engineered for producing detailed resin prints quickly and reliably.

Features

  • Crisp 4K Monochrome LCD: Delivers exceptional detail and smooth surface finishes for intricate models.
  • One-Click Automatic Leveling: Streamlines setup, ensuring precise print bed calibration without manual adjustments.
  • Intelligent Sensor System: Monitors resin levels and detects residue, preventing print failures and protecting the LCD.
  • Advanced COB Light Source: Provides uniform UV light distribution for consistent curing and superior print accuracy across the entire build plate.
  • Rapid Print Speeds: Achieves printing velocities up to 70mm/h, significantly reducing project completion times.

Out of stock

Description

The ELEGOO Mars 5 3D Printer represents a significant advancement in desktop MSLA resin printing, meticulously engineered for both seasoned professionals and ambitious makers. This unit is designed to produce high-resolution models with outstanding surface fidelity, making it an ideal choice for intricate prototypes, detailed miniatures, and precision parts where quality cannot be compromised. Its robust construction and user-centric features ensure consistent performance, allowing users to focus on creative design rather than tedious calibration or maintenance.

Integrating cutting-edge technology, the Mars 5 addresses common pain points in resin printing, such as inconsistent curing and complex setup. The combination of a high-resolution monochrome LCD and a powerful, uniform COB light source translates directly into sharper details and reliable layer adhesion, reducing the likelihood of print failures. With intuitive operation and intelligent monitoring, this printer streamlines the entire workflow, from initial model preparation to the final cured print.

Key Features

  • High-Resolution 4K Mono LCD: Utilizes a 6.6-inch 4K monochrome LCD screen, paired with an advanced COB light source, to render intricate details with exceptional fidelity and texture.
  • Precision COB & Fresnel Collimating Lens: The 405nm COB light source combined with a Fresnel lens achieves an ultra-low astigmatism coefficient of 0.5%, 92% field uniformity, and angle deviation below 5°, ensuring precise and even curing across the build area.
  • One-Click Automatic Leveling: Simplifies printer setup and calibration, allowing for automatic bed leveling with a single click, catering to users of all skill levels for immediate printing.
  • Intelligent Mechanical Sensor System: Features a sophisticated sensor for automatic residue detection (protecting the LCD), resin shortage alerts, and leveling failure alarms, enhancing operational safety and print reliability.
  • One-Click Self-Check Function: Performs a rapid diagnostic self-check of key components before each print, preventing common errors and material waste by ensuring optimal functionality.
  • Efficient Heat Dissipation: Integrated cooling system effectively manages heat generated by the powerful light source, maintaining stable operating temperatures for extended component lifespan and consistent print quality.
  • Fast Curing & Print Speed: Optimized light delivery and a high-resolution LCD enable print speeds up to 70mm/h, significantly accelerating production cycles without compromising detail.
  • Broad Resin Compatibility: Supports a wide range of 405nm UV resins, including water-washable, standard, ABS-like, and plant-based types, offering versatility for various applications.

Technical Specifications

Model No. / NameMars 5
Printer TypeResin
Print Size (L x W x H)143.43 x 89.6 x 150 mm³
Resin Supportswater-washable, standard, ABS-like, plant-based
ConnectivityUSB interface
Machine Size (L x W x H)230 x 230 x 433.5 mm³
Screen Type3.5-inch Resistive Touch Screen
Printing Speed70mm/h
Print Layer Thickness0.01-0.2 mm
LCD Screen6.6-inch 4K Mono LCD
Supported SoftwareVoxeldance Tango, ChituBox, Autodesk Fusion
Power Requirements100-240V 50/60Hz 24V 3A

Frequently Asked Questions

What are the key specifications of the ELEGOO Mars 5?

The ELEGOO Mars 5 features a 6.6-inch 4K Mono LCD, offering a print size of 143.43 x 89.6 x 150 mm³. It achieves a printing speed of 70mm/h and supports layer thicknesses from 0.01 to 0.2 mm, powered by a 24V 3A supply.

What types of resin are compatible with the ELEGOO Mars 5?

The Mars 5 is compatible with various 405nm UV resins, including water-washable, standard, ABS-like, and plant-based types. Users should select resin appropriate for MSLA printers to ensure optimal print quality, adhesion, and curing performance.

What software is supported for preparing prints on the ELEGOO Mars 5?

The ELEGOO Mars 5 supports popular slicing software such as Voxeldance Tango, ChituBox, and Autodesk Fusion. These programs allow users to prepare 3D models, configure print settings, and generate print files for the machine's 4K Mono LCD system.

What is the maximum print speed and layer thickness range for the Mars 5?

The Mars 5 offers a maximum printing speed of 70mm/h, which is beneficial for faster production. It supports a layer thickness range of 0.01mm to 0.2mm, allowing for a balance between fine detail resolution and quicker print times based on project requirements.

Package Includes

  • 1 x ELEGOO Mars 5 3D Printer

Additional Information

Weight 8.6 kg
Dimensions 21 × 11 × 13 cm
