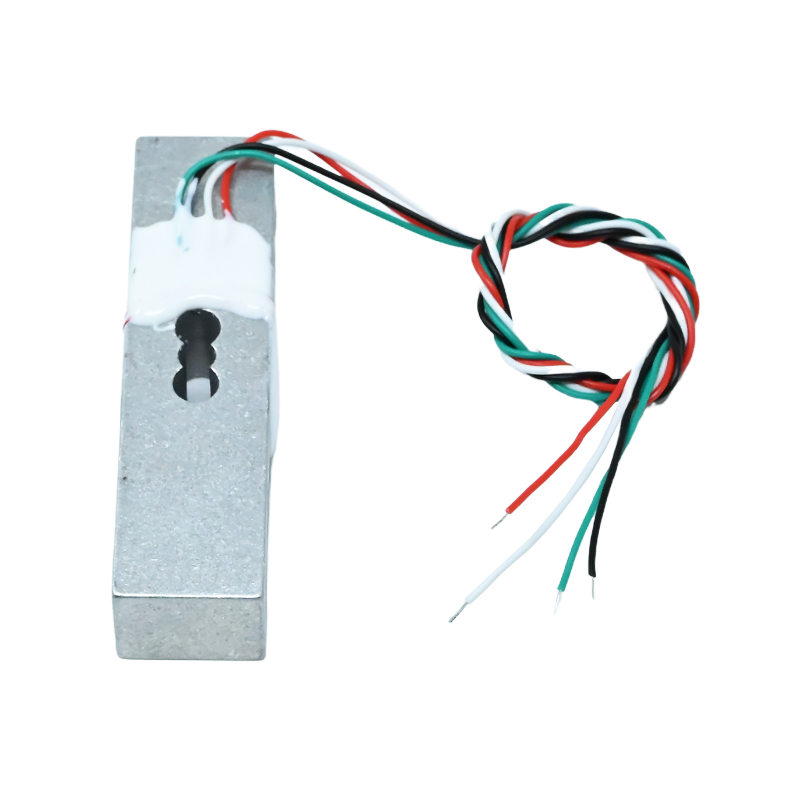

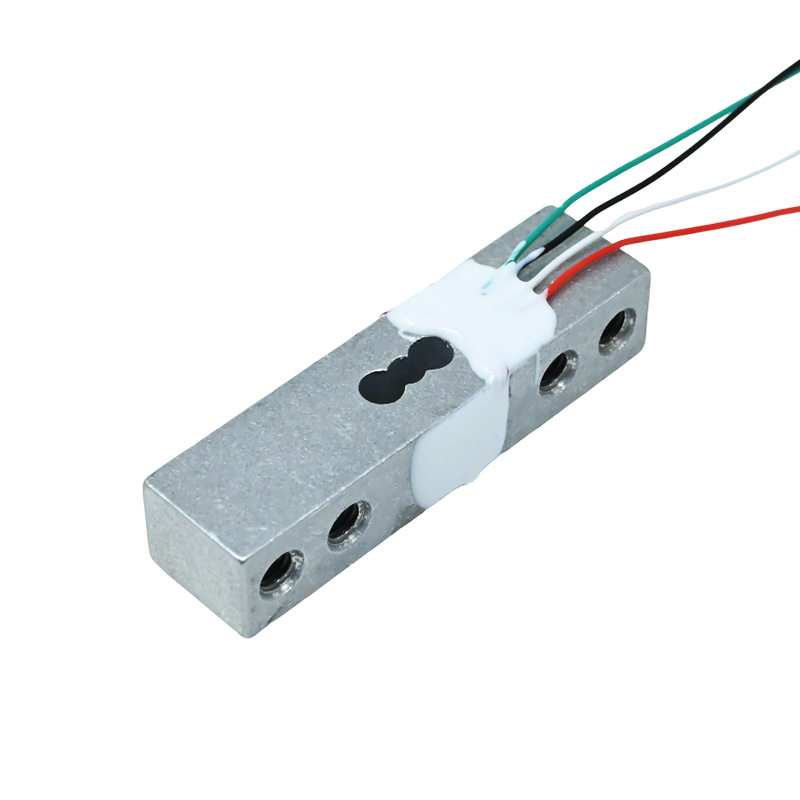

Phaeton Load Cell Sensor 611E 01 200KG Weighing Aluminum Alloy
The Phaeton 611E is a 200 kg capacity aluminum alloy load cell sensor designed for industrial weighing and force measurement applications. It features a 1.2±0.2mV/V output sensitivity and a compact, screw-fastened design for easy integration into scales, platforms, and process control systems.
Features
- 200 kg (approx. 440 lbf) rated capacity for robust industrial weighing.
- High output sensitivity of 1.2±0.2mV/V ensures precise signal generation.
- Compact aluminum alloy construction (58x20x12mm) for space-constrained installations.
- Screw-fastened mounting design provides secure and stable mechanical attachment.
- Standard 4-wire (Red, Green, Black, White) configuration for straightforward connection to instrumentation amplifiers.
Out of stock
The Phaeton 611E load cell is a precision strain gauge-based transducer engineered for accurate force and weight measurement up to 200 kg. Its aluminum alloy body provides a high strength-to-weight ratio and excellent resistance to deformation under load, ensuring long-term measurement stability and repeatability.
The sensor operates on the Wheatstone bridge principle, where applied force induces a proportional change in electrical resistance, output as a millivolt-per-volt (mV/V) signal. This low-level analog output requires connection to a compatible signal conditioner or instrumentation amplifier for precise digitization and integration into PLCs, data loggers, or custom microcontroller-based systems like those using Arduino or Raspberry Pi with HX711 modules.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 5.8 × 2 × 1.2 cm |
