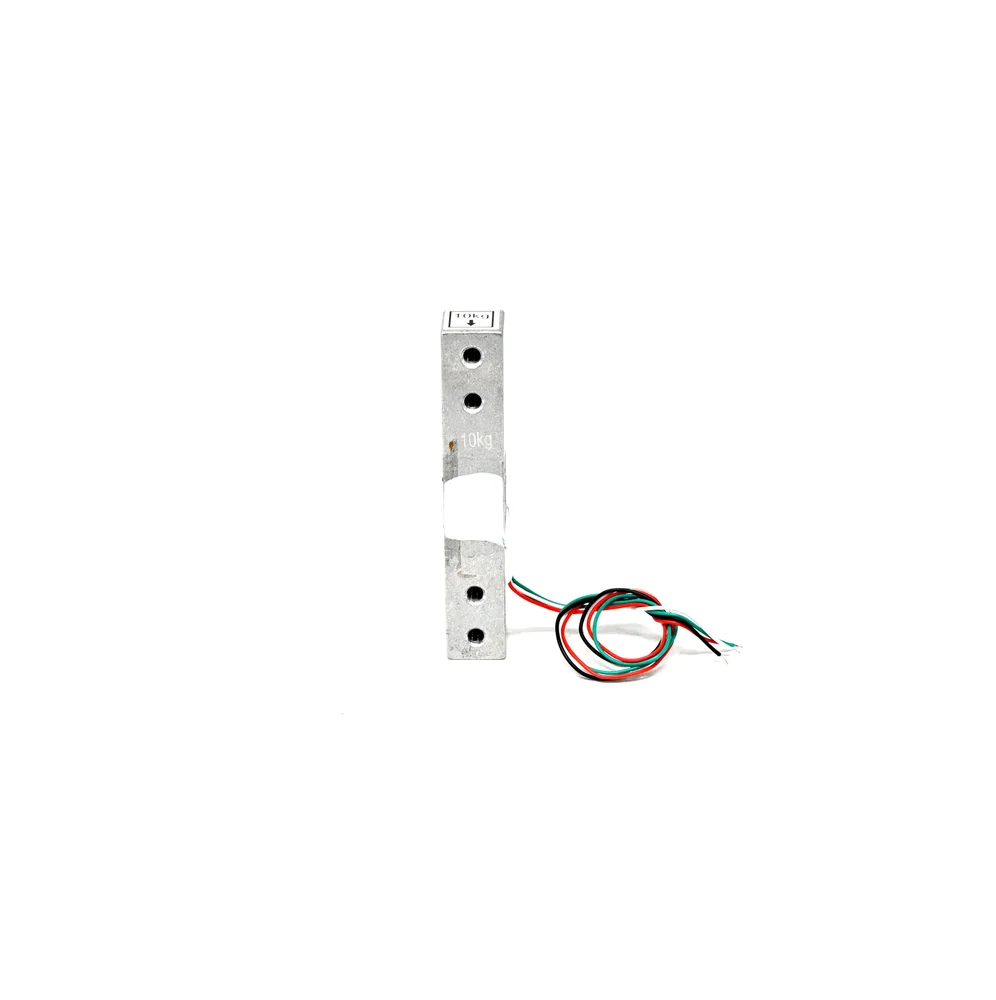

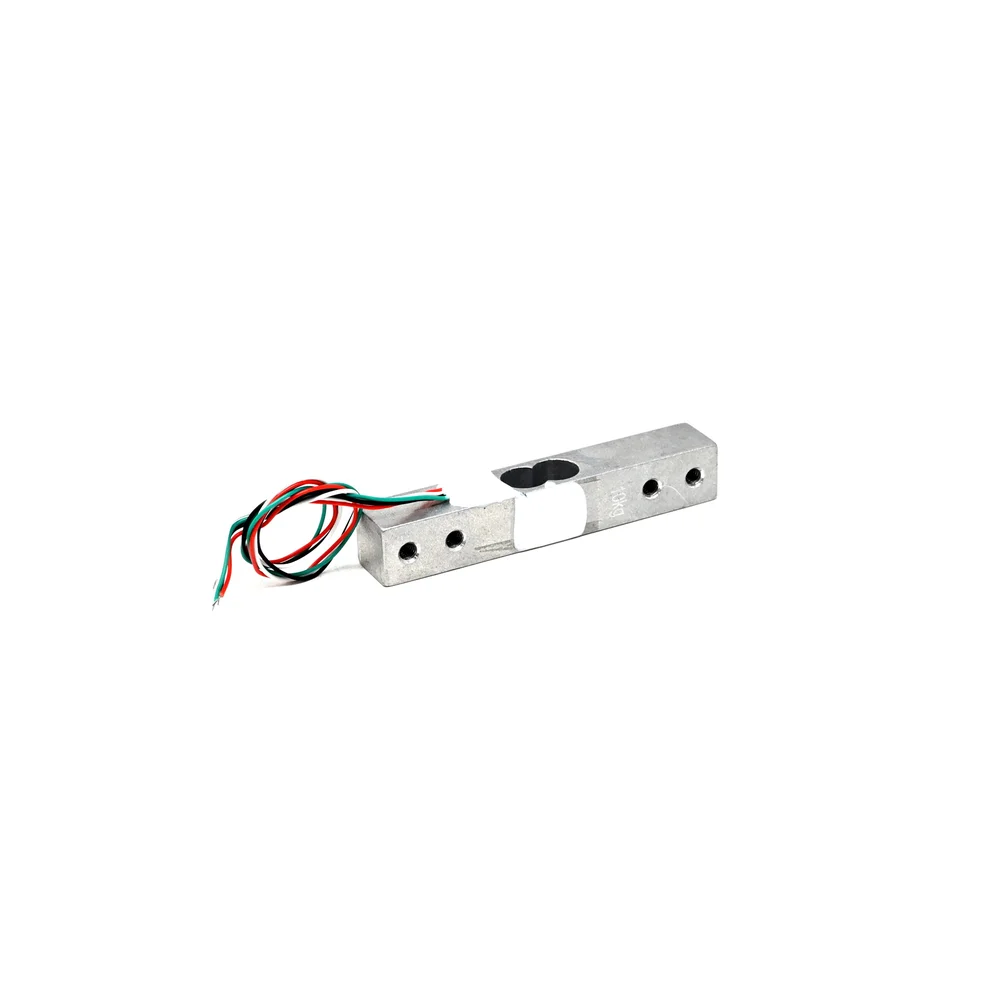

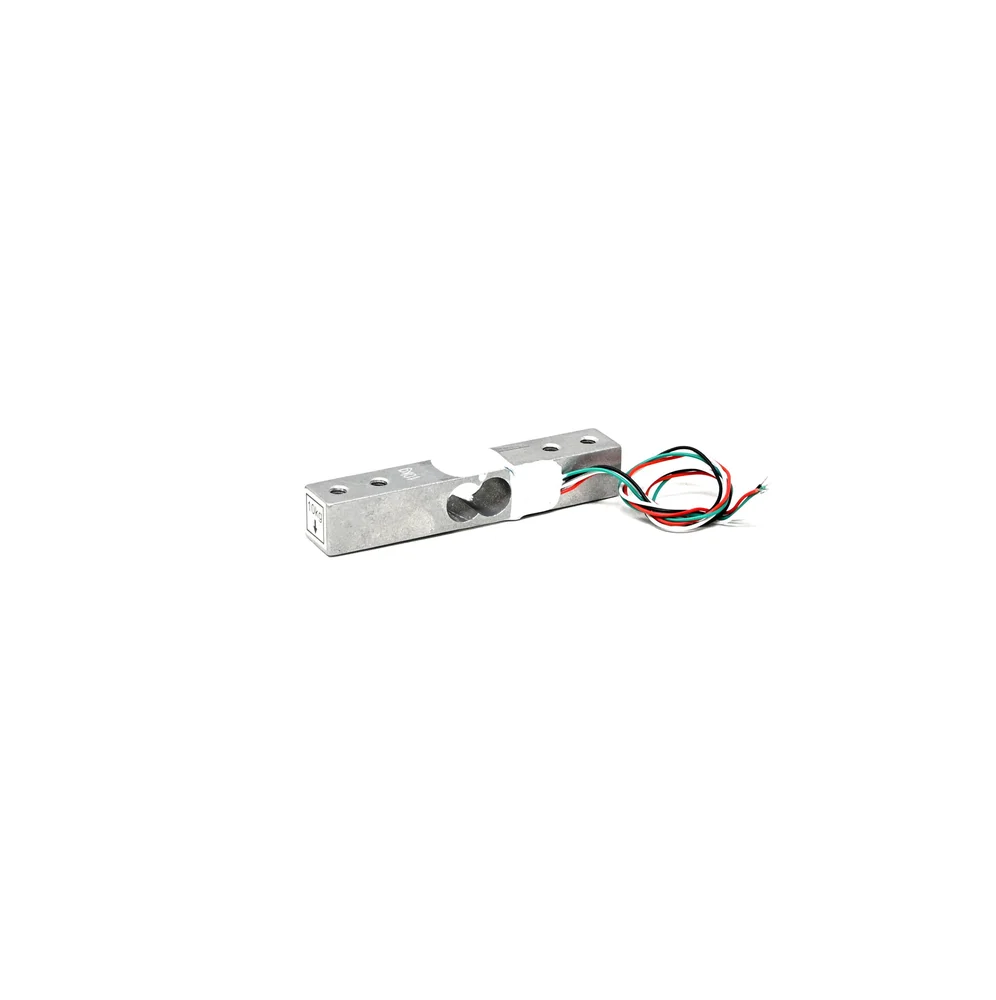

Phaeton CZL-611RD Aluminum Alloy Load Cell Sensor 10kg - Screw-Fastened

The CZL-611RD load cell operates on a standard bridge excitation voltage, typically between 5V and 12V DC. The output signal is ratiometric, meaning the mV/V sensitivity (1.0±0.1 mV/V) is proportional to the input excitation voltage. Always consult your signal conditioner or amplifier's specifications for compatible excitation levels.

Connect the load cell's Red wire to the amplifier's Excitation+ (E+), Green to Excitation- (E-), Black to Signal+ (A+), and White to Signal- (A-). The HX711 module provides the necessary excitation and amplifies the small mV signal for reading by a microcontroller. Ensure proper grounding and use shielded cable for long runs to minimize noise.

This load cell features a specified hysteresis of 0.03% of Full Scale (F.S.), which is 3 grams for a 10kg sensor. Combined with its stable 1.0 mV/V output sensitivity, it provides repeatable measurements suitable for commercial weighing applications. For highest accuracy, proper mounting, calibration, and use of a high-resolution 24-bit ADC are recommended.

Yes, multiple load cells can be connected in parallel to a single amplifier to sum their outputs, commonly used in multi-corner platform scales. Ensure all cells are identical (same model and capacity), are mounted on a level plane, and that the combined load does not exceed the total rated capacity. Proper calibration after assembly is critical.
