Pepperl+Fuchs ENA36TL-S10SA5-1516-IO-RBD01 Absolute Rotary Encoder, 10mm Shaft, IO-Link V1.1, IP65

₹79,969.00 (Inclusive of all taxes)
Out of Stock

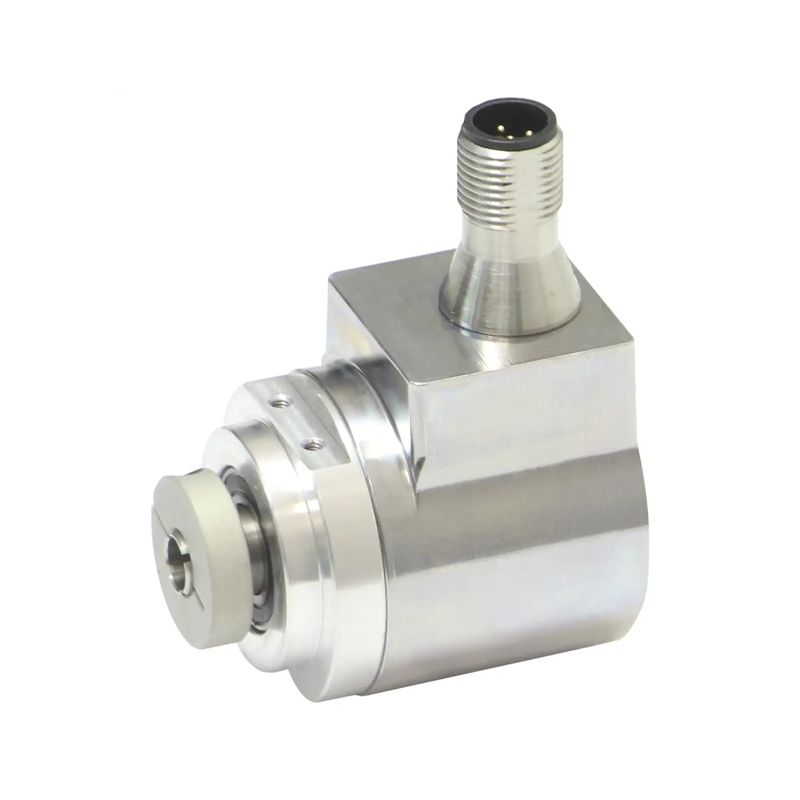

The Pepperl+Fuchs ENA36TL-S10SA5-1516-IO-RBD01 is an industrial-grade absolute rotary encoder featuring wear-free magnetic Pure Line technology and an IO-Link V1.1 interface for seamless integration into automation systems, PLCs, and smart manufacturing environments requiring high-resolution position feedback.

Features

  • Absolute rotary encoder with programmable 31-bit overall resolution for precise position feedback.
  • IO-Link V1.1 interface enables process data transfer, remote parameterization, and diagnostic monitoring.
  • Robust IP65-rated housing with stainless steel shaft for reliable operation in demanding industrial environments.
  • Wear-free magnetic sampling (Pure Line technology) ensures long service life and maintenance-free operation.
  • Wide operating voltage range of 18–30 V DC and temperature range of -40°C to +85°C.

Out of stock

Description

The ENA36TL-S10SA5-1516-IO-RBD01 absolute rotary encoder from Pepperl+Fuchs utilizes advanced magnetic sampling technology within its Pure Line platform, eliminating mechanical wear for exceptional long-term reliability. This encoder provides absolute multi-turn position data directly upon power-up, eliminating the need for a homing routine.

Its integrated IO-Link V1.1 communication port facilitates bidirectional data exchange, allowing for remote configuration of parameters like measuring range, rotation direction, and switching outputs. The robust construction, featuring an IP65 protection rating and a 10mm stainless steel shaft, ensures dependable performance in harsh industrial settings with exposure to dust and water jets.

Key Features

  • Pure Line magnetic sensing technology for contactless, wear-free operation.
  • High-resolution absolute encoder with up to 31-bit programmable overall resolution.
  • Integrated IO-Link V1.1 interface for smart sensor communication and Industry 4.0 integration.
  • Robust IP65-rated aluminum housing with a stainless steel shaft for industrial durability.
  • Programmable parameters including measuring range, rotation direction, and output signals.
  • Wide operating temperature range from -40°C to +85°C for extreme environments.
  • Status LEDs provide visual feedback for operational mode and communication status.
  • M12 5-pin A-coded connector for secure and standardized industrial connectivity.

Applications

  • Precision position feedback in robotic arms and automated guided vehicles (AGVs).
  • Angular position monitoring in packaging machinery, conveyor systems, and rotary tables.
  • Condition monitoring and predictive maintenance in Industry 4.0 smart factories.
  • Motion control in material handling equipment and industrial automation systems.
  • Absolute multi-turn position sensing in harsh outdoor or washdown environments.

Technical Specifications

Manufacturer Part NumberENA36TL-S10SA5-1516-IO-RBD01
Sensor TypeAbsolute Rotary Encoder
Sensing TechnologyMagnetic (Pure Line)
Operating Voltage18 – 30 V DC
Power ConsumptionApprox. 1.5 W
Output InterfaceIO-Link V1.1
Overall ResolutionUp to 31 Bit (Programmable)
Shaft Diameter10 mm
Maximum Rotational Speed12000 min⁻¹
Protection RatingIP65
Operating Temperature-40°C to +85°C
Relative HumidityUp to 98% (non-condensing)
Connector TypeM12, 5-pin, A-coded
Housing MaterialAluminum
Shaft MaterialStainless Steel
Dimensions (L x W)68 mm x 68 mm
Weight270 g

Frequently Asked Questions

What is the communication protocol of this encoder?

This encoder uses the IO-Link V1.1 communication protocol. It is a point-to-point serial interface that allows for bidirectional data exchange, enabling not only the transmission of absolute position values but also remote parameterization, diagnostic data access, and integration into Industry 4.0 and smart factory networks.

What is the benefit of the 'Pure Line' magnetic technology?

Pure Line technology refers to Pepperl+Fuchs's wear-free magnetic sampling method. Unlike optical encoders, it has no delicate glass disc or light source that can be compromised by contamination. This makes the encoder extremely robust, maintenance-free, and suitable for long-term operation in dusty, humid, or vibration-prone industrial environments.

What power supply is required for this encoder?

The encoder operates on a wide-range DC supply voltage of 18 to 30 volts. This voltage range is standard for many industrial control systems. Ensure your power source can provide the required voltage and can handle the typical power consumption of approximately 1.5 watts.

How is the encoder mounted and connected?

The encoder features a 10mm diameter stainless steel shaft for direct mechanical coupling. Electrically, it uses a standard industrial M12 5-pin A-coded male connector for both power and the IO-Link communication signal. Ensure you have a compatible M12 female cable with A-coding for proper connection.

Package Includes

  • 1 x Pepperl+Fuchs ENA36TL-S10SA5-1516-IO-RBD01 Absolute Rotary Encoder

Additional Information

Weight 0.27 kg
Dimensions 6.8 × 6.8 cm
