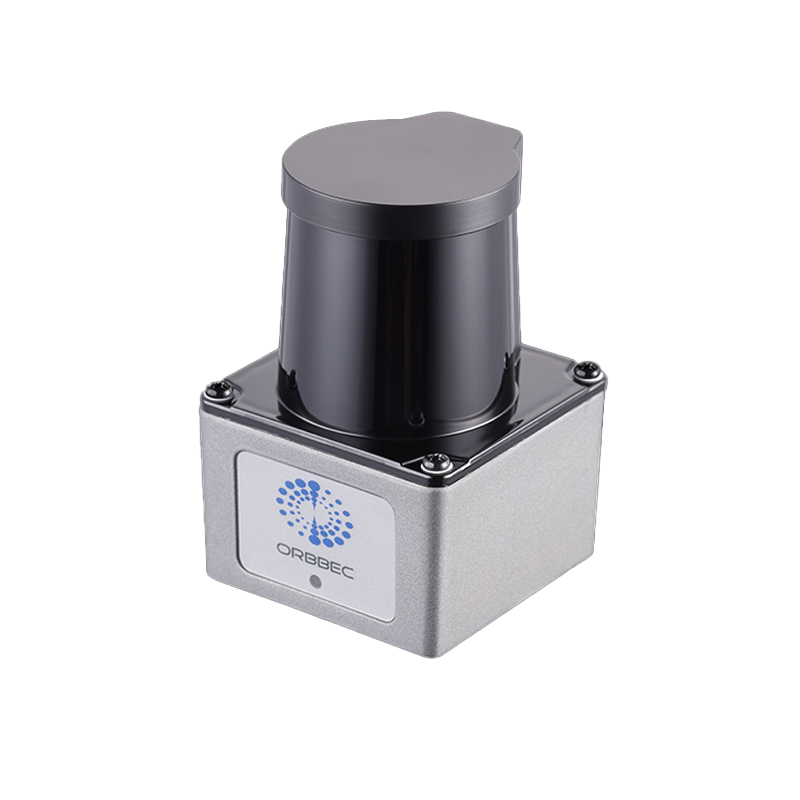

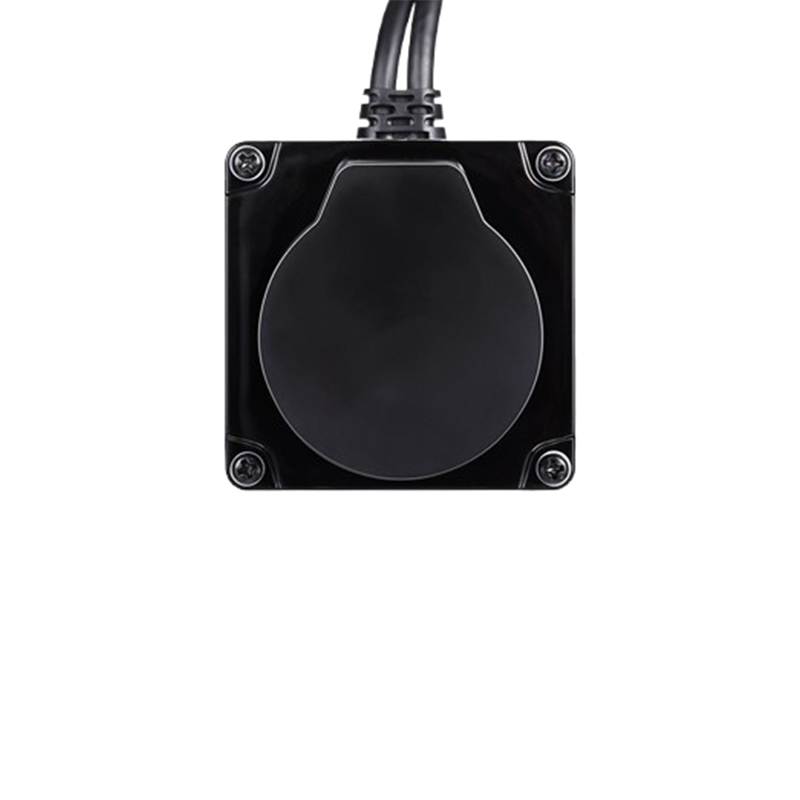

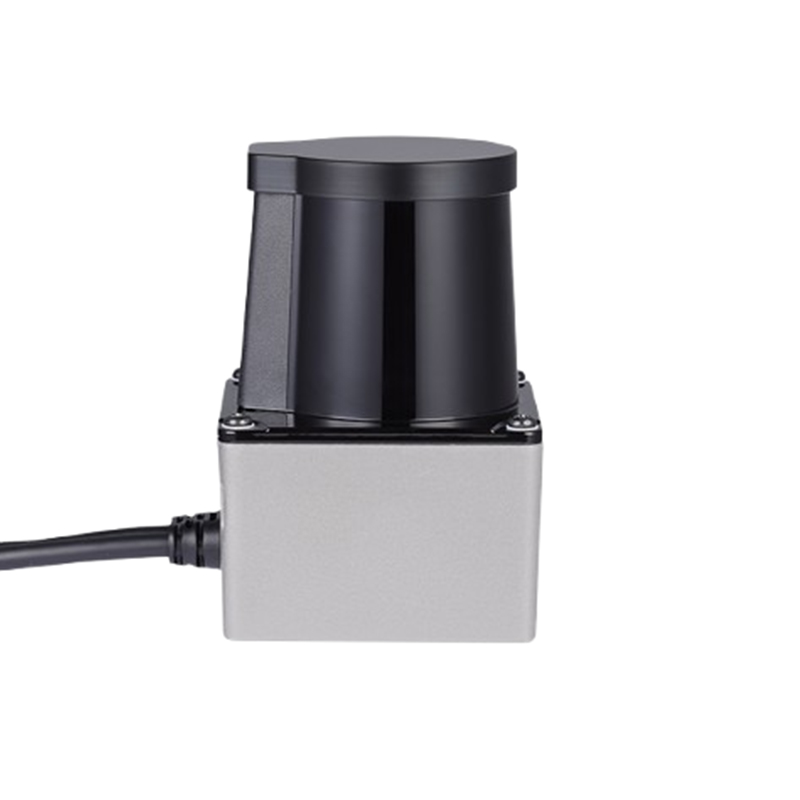

Orbbec SL450 dToF LiDAR Pulsar - 270° FoV, 45m Range, IP65, ROS SDK
The Orbbec SL450 is a high-performance direct Time-of-Flight (dToF) LiDAR scanner designed for robotics and automation. It provides dense, accurate point clouds up to 45 meters with a 270° horizontal field of view, featuring an IP65-rated housing for reliable operation in demanding environments and seamless integration via ROS1/2 and Windows/Linux SDKs.
Features
- Direct Time-of-Flight (dToF) technology for precise distance measurement up to 45 meters.
- Wide 270° horizontal field of view with configurable angular resolution (0.075° to 0.2°).
- High-density scanning at 72 kHz measurement frequency for detailed environmental mapping.
- IP65-rated robust casing ensures reliable performance in dusty or outdoor conditions.
- ROS1/ROS2 and Windows/Linux SDK support for rapid integration into robotic and automation platforms.
Out of stock
The Orbbec SL450 dToF LiDAR Pulsar employs a rotating-mirror optical system and high-frequency laser pulses to generate high-density, accurate point clouds. Its dToF principle ensures dependable distance measurements, while multi-echo filtering technology maintains data integrity in challenging conditions like dust or light fog, delivering uniform point cloud quality across multiple units.
Engineered for industrial and mobile applications, the scanner operates within a wide temperature range and features a compact, lightweight aluminum housing. It outputs spatial data via standard communication interfaces, making it compatible with a wide array of control systems, from embedded platforms like Raspberry Pi and NVIDIA Jetson to industrial PCs and PLCs.
Additional Information
| Weight | 0.3 kg |
|---|---|
| Dimensions | 9 × 6 cm |
