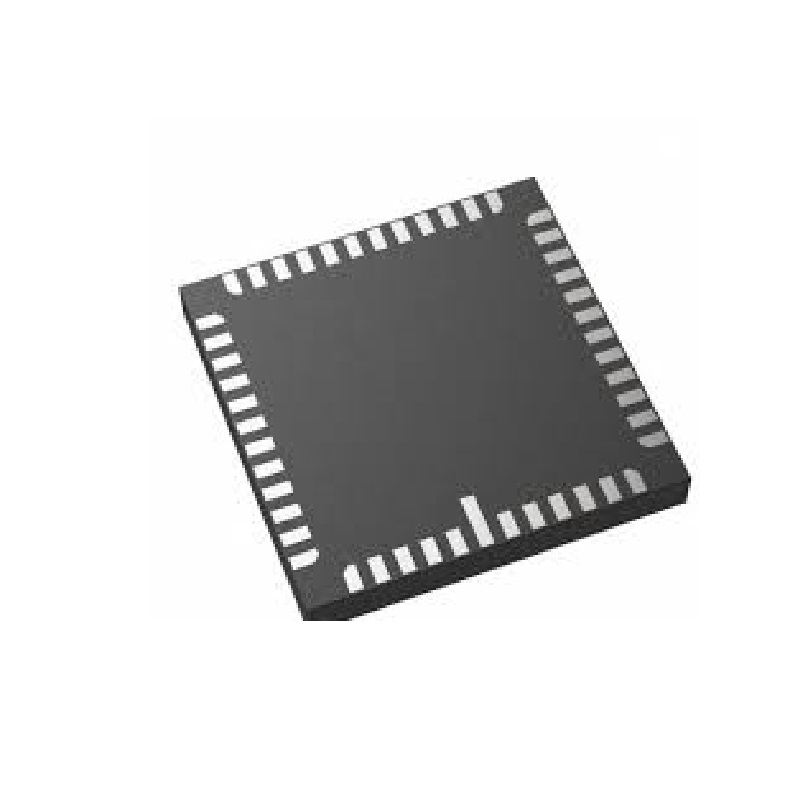

onsemi AR0134CSSC00SPCA0-DPBR 3.75µm CMOS Image Sensor 1280x960 LCC-48
The onsemi AR0134CSSC00SPCA0-DPBR is a 1/3-inch CMOS image sensor delivering 1.2-megapixel (1280×960) resolution with a 3.75µm pixel size, designed for integration into embedded vision systems, industrial inspection cameras, and automotive driver assistance applications.
Features
- 1.2MP CMOS Image Sensor with 1280H x 960V resolution
- 3.75µm x 3.75µm pixel size for enhanced low-light sensitivity
- LCC-48 package (10x10mm) for compact, surface-mount integration
- Wide operating temperature range of -30°C to +75°C
- Low power consumption of 400mW for energy-efficient designs
Out of stock
The AR0134CSSC00SPCA0-DPBR from onsemi is a high-performance, 1/3-inch format CMOS image sensor engineered for machine vision and digital imaging applications. It utilizes advanced pixel technology to provide a balance of resolution, sensitivity, and dynamic range, making it suitable for challenging lighting conditions.
This sensor outputs digital video data through a parallel interface, facilitating direct connection to FPGAs, DSPs, or dedicated image processors. Its robust LCC package and extended industrial temperature range ensure reliable operation in automotive, security, and industrial automation environments where consistent image capture is critical.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 10 × 3 cm |
