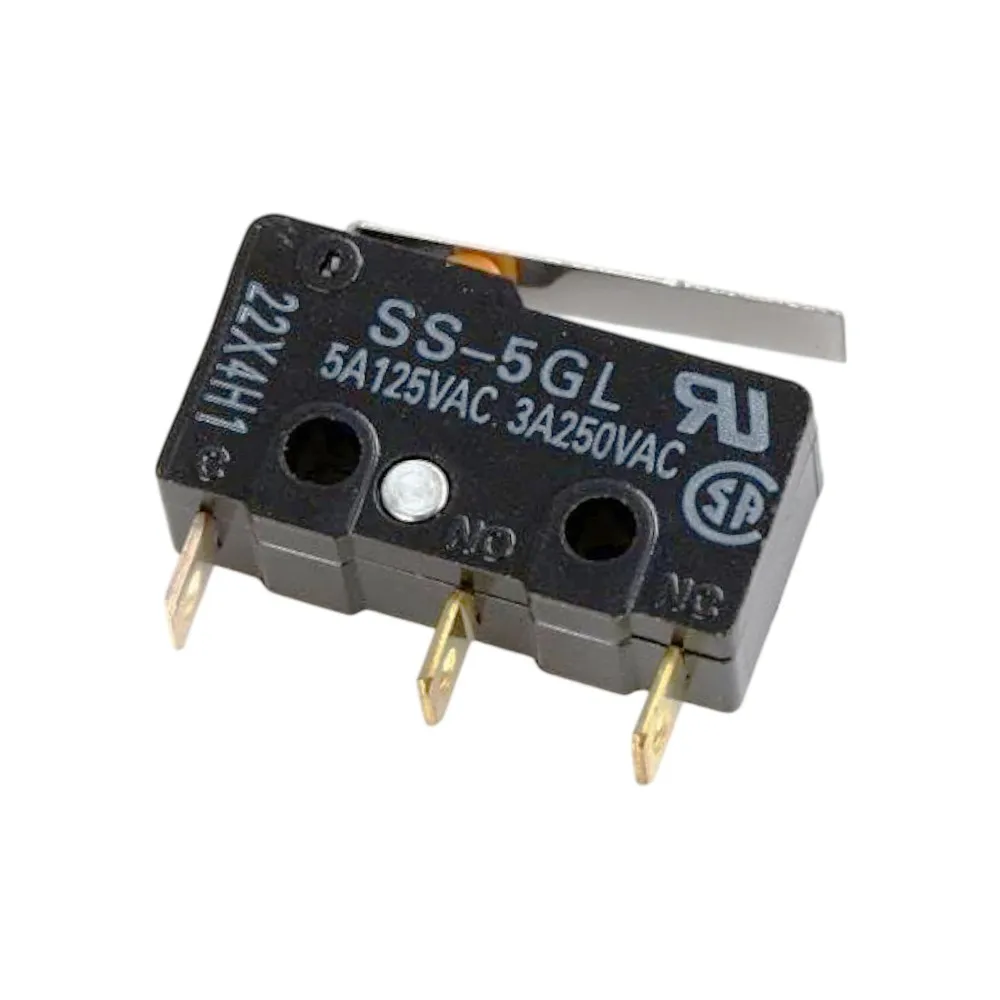

OMRON SS-5GL Micro Switch | High Precision | 3D Printer Endstop Sensor
₹19,999.00₹25,000.00 (price_including_tax) (-20%)
Achieve superior axis positioning accuracy in your 3D printer builds. This robust micro switch transforms ordinary motion systems into precisely controlled, repeatable mechanisms. Engineered for durability and consistent performance, ensuring long-term operational stability for critical applications.
OMRON SS-5GL offers reliable, high-precision limit detection crucial for accurate 3D printer axis positioning.
Delivers precise positional feedback consistently, essential for high-fidelity 3D printing movements.
Engineered for millions of cycles, ensuring long-term reliability in continuous operational environments.
Compact design and versatile contacts allow for easy incorporation into existing or new projects.
The Engineering Behind OMRON SS-5GL Limit Switch
The OMRON SS-5GL is a miniature basic switch, commonly referred to as a micro switch or limit switch, specifically engineered for high-precision detection of mechanical position. It operates on a robust snap-action mechanism, ensuring rapid and definitive state changes (ON/OFF) upon actuation. Its core architecture involves a highly reliable internal spring system that provides a quick break/make action, crucial for preventing contact bounce and ensuring clean signal transitions in automated systems.
Constructed with durable materials, the SS-5GL series is designed for extensive operational cycles, making it ideal for repetitive tasks in industrial automation, robotics, and 3D printing applications. Its compact form factor allows for integration into space-constrained designs, while its precise actuation point ensures consistent repeatability, a critical factor for machine calibration and safety interlocks.
High Precision Snap-Action Mechanism
The defining feature of the OMRON SS-5GL is its snap-action mechanism, which guarantees a rapid and instantaneous change of contact state regardless of the speed of the actuator. This design eliminates contact chattering, reduces arcing, and extends the lifespan of the switch, providing clean, unambiguous digital signals for microcontrollers or control circuits to interpret.
Versatile Normally Open/Normally Closed Configuration
Equipped with a common (C), normally open (NO), and normally closed (NC) terminal, the SS-5GL offers flexible wiring options to suit various application requirements. This versatility allows engineers to implement either a make-contact (NO) or break-contact (NC) logic depending on the safety or operational design, providing adaptable fault-state detection and control.
Optimized for Performance & Integration
- Contact Form: SPDT (Single Pole Double Throw)
- Actuator Type: Pin Plunger
- Operating Force (OF): 1.23 N (125 gf) maximum
- Release Force (RF): 0.22 N (22 gf) minimum
- Pretravel (PT): 1.0 mm maximum
- Overtravel (OT): 0.25 mm minimum
- Electrical Life: 10 million operations minimum (at rated load)
- Mechanical Life: 30 million operations minimum
Features & Benefits
- High Precision Snap-Action: Ensures rapid, definitive contact changes for reliable signal integrity in critical control loops.
- SPDT Contact Configuration: Offers versatile Normally Open (NO) and Normally Closed (NC) wiring options for adaptable system logic.
- Durable Pin Plunger Actuator: Provides robust mechanical interface for consistent and repeatable actuation cycles.
- High Mechanical and Electrical Life: Guarantees long-term operational reliability and reduced maintenance in demanding applications.
- Compact Miniature Design: Facilitates easy integration into space-constrained enclosures and precise mechanical assemblies.
- Consistent Repeat Accuracy: Critical for precise positioning systems in 3D printers, CNC machines, and robotics.
Pro-Grade Advantages
- Exceptional repeatability ensures accurate axis homing and limits.
- Robust snap-action mechanism minimizes signal bounce and enhances longevity.
- SPDT configuration offers flexible normally open/closed circuit design.
- Compact form factor integrates seamlessly into tight mechanical assemblies.
Technical Considerations
- Requires careful mechanical alignment for optimal actuation point.
- Limited to single-axis detection, not suitable for multi-axis position sensing.
What is the contact configuration of the OMRON SS-5GL switch?
The OMRON SS-5GL features a Single Pole Double Throw (SPDT) contact configuration, providing both Normally Open (NO) and Normally Closed (NC) contacts along with a Common (C) terminal for flexible wiring.
What is the typical operating force required for the SS-5GL?
The OMRON SS-5GL typically requires an operating force of 1.23 N (125 gf) maximum to actuate the switch, ensuring a definitive click action.
Can the SS-5GL be used as an endstop for 3D printers?
Yes, the OMRON SS-5GL is highly suitable as an endstop or limit switch for 3D printers due to its high precision, reliability, and consistent repeatability.
What is the expected electrical life of this micro switch?
The electrical life of the OMRON SS-5GL is rated for a minimum of 10 million operations at the specified rated load, ensuring extended operational longevity.
What are the primary applications for the OMRON SS-5GL?
Primary applications include 3D printer endstops, CNC machine limit switches, robotics position sensing, industrial automation, and general mechanical detection tasks.
| Specification | Value |
|---|---|
| Contact Form | SPDT (NO/NC) |
| Actuator Type | Pin Plunger |
| Operating Force (OF) | 1.23 N (125 gf) max |
| Release Force (RF) | 0.22 N (22 gf) min |
| Pretravel (PT) | 1.0 mm max |
| Overtravel (OT) | 0.25 mm min |
| Differential Travel (DT) | 0.05 mm max |
| Electrical Rating | 5A @ 250VAC / 3A @ 30VDC |
| Mechanical Life | 30 million operations min |
| Electrical Life | 10 million operations min |
| Terminal Type | Solder |
Additional information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 1.98 × 1.06 × 0.64 cm |
| Brand | Generic |
| Technology | Electromechanical |
| Sensor Type | Limit Switch |
| Output Signal | Digital |
| Control Interface | Contact Closure |
| Package | Miniature Basic Switch |
| Value | Single Component |
