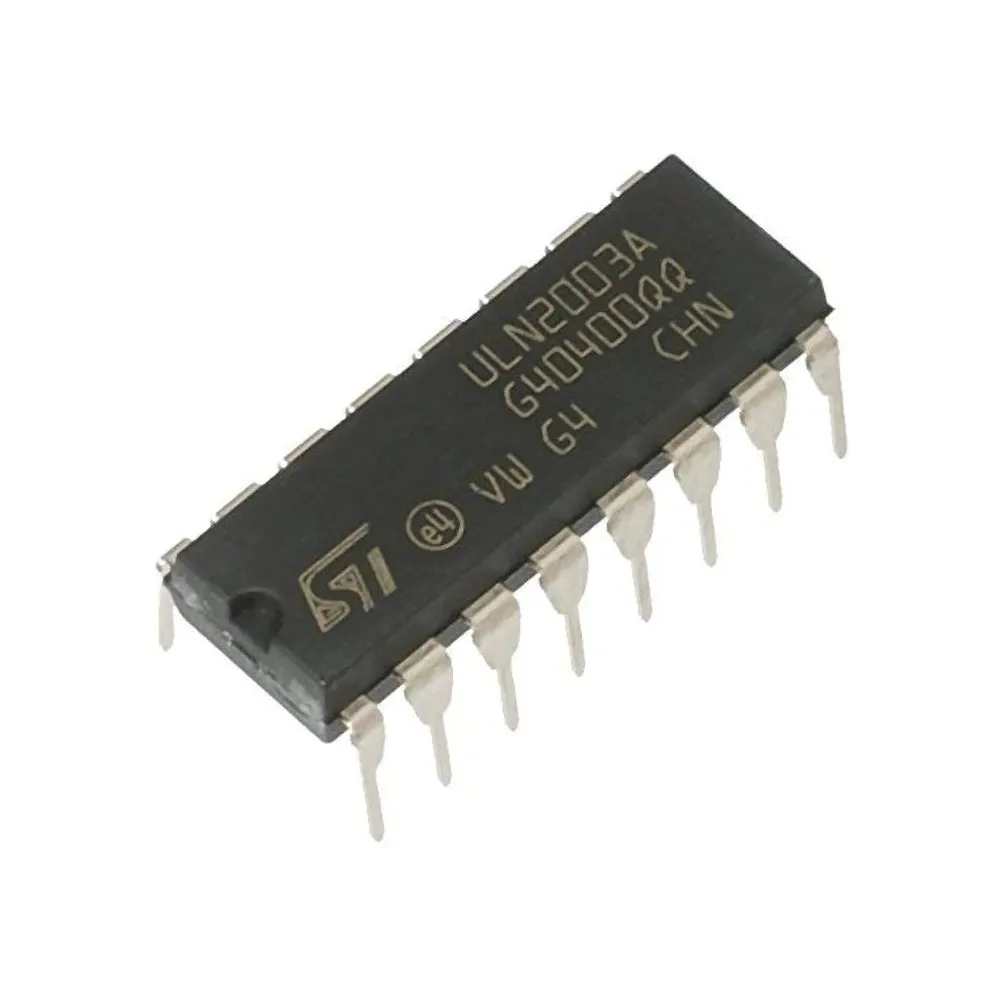

Name: Generic ULN2003 Stepper Motor Driver IC | High Current Darlington Array | 7-Channel Output
Brand: Generic
SKU: OL-GEN-ULN2003
Price: 149.00 INR
Availability: InStock

Robust Motor Control

Efficiently drives stepper motors and inductive loads with high current capacity and protection built-in.

Simplified Circuitry

Reduces component count by integrating seven powerful drivers into one compact IC package.

Inductive Load Safety

Internal diodes prevent damaging voltage spikes, safeguarding connected electronics with superior reliability.

The Engineering Behind ULN2003 Stepper Motor Driver IC

The ULN2003 is a high-voltage, high-current Darlington transistor array integrated circuit, specifically designed for driving inductive loads like stepper motors, relays, and solenoids. It comprises seven NPN Darlington pairs, each capable of handling up to 500mA and featuring integral suppression diodes for clamping inductive transients. This architecture allows microcontrollers to safely control higher-power devices without direct current strain on their I/O pins, acting as a crucial interface between low-power logic and power-hungry actuators.

Built with robust silicon components, the ULN2003 offers excellent thermal stability and intrinsic overload protection. Its construction emphasizes reliability for continuous operation in demanding environments, ensuring longevity and consistent performance in both hobbyist projects and industrial prototypes. The compact DIP package allows for straightforward integration into through-hole PCBs.

High-Current Darlington Array

At its core, the ULN2003 features seven Darlington transistor pairs, providing a high current gain necessary to switch significant loads. Each channel can sink up to 500mA continuously, enabling precise control over stepper motor phases, multiple relays, or LED arrays directly from a low-current logic signal. This high current capability simplifies circuit design by eliminating the need for individual driver transistors and their associated components, reducing complexity and board space.

Integrated Suppression Diodes

A critical safety and reliability feature of the ULN2003 is the inclusion of internal flyback diodes connected to a common cathode. These diodes effectively dissipate the inductive kickback voltage generated when switching off inductive loads like motor coils, preventing damaging voltage spikes from reaching the driver IC or the controlling microcontroller. This structural choice resolves traditional operational real-world pain points by safeguarding sensitive electronics and enhancing the lifespan of connected inductive components, making systems significantly more stable.

Optimized for Performance & Integration

Channels: 7 Independent Darlington Pairs
Output Current (Max): 500mA per channel, 2.5A total (pulsed)
Output Voltage (Max): 50V
Input Logic: TTL, CMOS, PMOS compatible
Protection: Internal Output Clamp Diodes
Package: DIP-16 (Dual In-line Package)
Operating Temperature: -40°C to +85°C

Features & Benefits

Seven Darlington Pairs: Independently control up to seven separate loads with high current gain.
High Output Current: Sink up to 500mA per channel, suitable for stepper motors, relays, and solenoids.
Integrated Flyback Diodes: Protect sensitive circuits from inductive load voltage spikes, enhancing system longevity.
Wide Input Compatibility: Directly interface with standard TTL, CMOS, and PMOS logic levels from microcontrollers.
High Output Voltage: Drive loads requiring up to 50V, extending application flexibility for various actuators.
Compact DIP-16 Package: Ensures easy breadboard prototyping and through-hole PCB integration.

Pro-Grade Advantages

High current output per channel for versatile motor and load control.
Integrated flyback diodes provide essential protection against inductive kickback.
Directly interfaces with common microcontroller logic levels (TTL/CMOS).
Economical and widely available, making it a cost-effective driver solution.

Technical Considerations

Limited to unipolar stepper motors or simple on/off control for other loads.
Each channel is a sink (NPN), requiring specific load connection for operation.

What is the maximum current capacity per channel for the ULN2003 IC?

The ULN2003 is designed to sink a maximum continuous current of 500mA per channel, making it suitable for driving a wide range of medium-power inductive loads.

Can the ULN2003 drive bipolar stepper motors?

The ULN2003 is best suited for unipolar stepper motors. While it can control individual coils of a bipolar motor, an H-bridge driver would typically be required for full bipolar control with direction reversal through software.

What type of input signals does the ULN2003 accept?

The ULN2003 is compatible with standard TTL, CMOS, and PMOS logic levels, allowing it to be directly driven by common microcontrollers like Arduino or Raspberry Pi.

What are the integrated suppression diodes for?

The integrated suppression (flyback) diodes protect the ULN2003 and the controlling circuitry from voltage spikes generated when inductive loads, such as motor coils or relays, are de-energized.

What is a Darlington array and how does it benefit a motor driver?

A Darlington array consists of multiple Darlington transistor pairs. Each pair provides a very high current gain, enabling a small input current from a microcontroller to switch a much larger output current, efficiently driving power-hungry loads.

Specification	Value
Input Voltage (Logic)	TTL, CMOS, PMOS Compatible
Output Voltage (Max)	50V
Output Current (Continuous per Channel)	500mA
Total Output Current (Pulsed)	2.5A
Number of Channels	7
Integrated Protection	Internal Clamp Diodes
Package Type	DIP-16
Operating Temperature Range	-40°C to +85°C
Input High Voltage (Min)	2.7V (for TTL/CMOS)
Input Low Voltage (Max)	0.7V (for TTL/CMOS)
Output Saturation Voltage (Max)	1.6V @ 300mA
