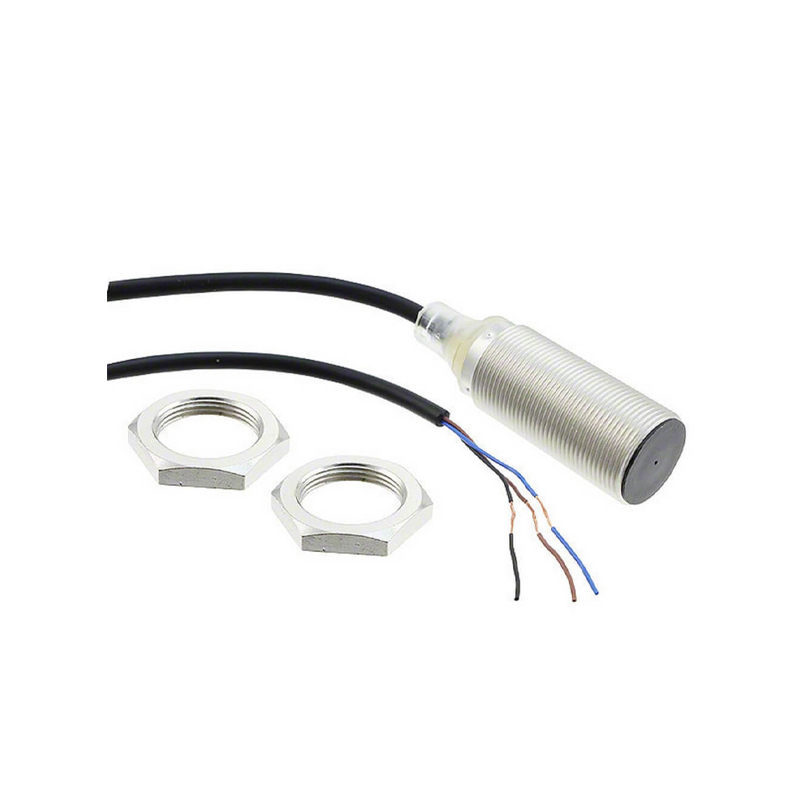

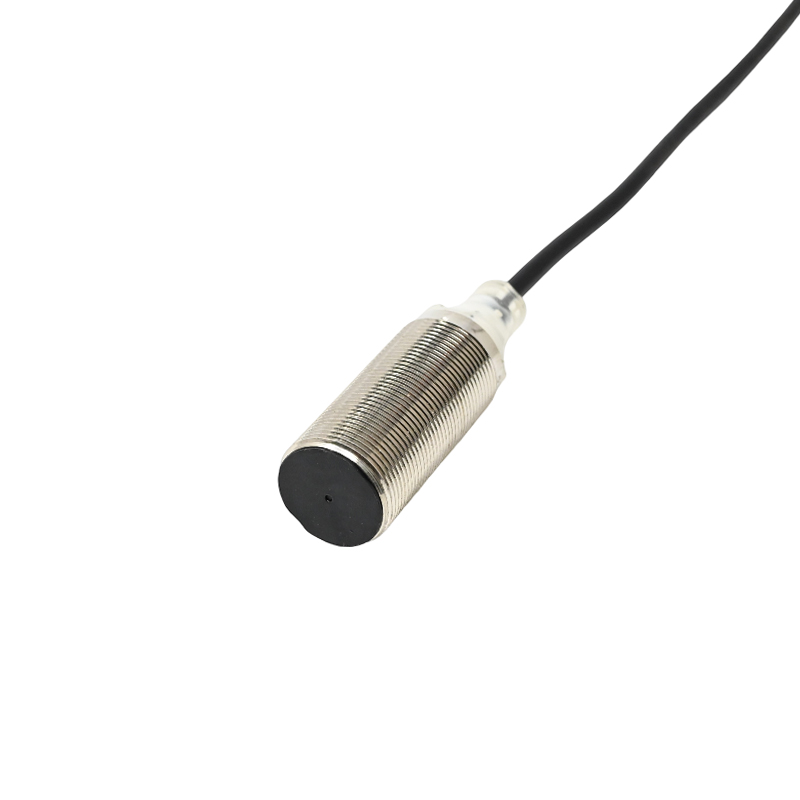

Omron E2B-M18KS08-WP-B1-2M Inductive Proximity Sensor, PNP NO Output, M18 Shielded, 10-30 VDC, IP67, 2 m Cable

This Omron sensor has a PNP (sourcing) output. In a normally open (NO) configuration, the output signal wire switches to a positive voltage (sources current) when a metal target is detected. This is typically used to interface with PLCs that have sinking digital inputs. An NPN (sinking) output would switch to ground instead.

Yes, the E2B-M18KS08-WP-B1-2M is a shielded (or 'flush-mountable') sensor. This design allows it to be installed flush with or embedded in a metal mounting bracket without a reduction in its nominal 8 mm sensing distance, unlike unshielded sensors which require a clearance zone.

The IP67 rating indicates the sensor is dust-tight (6) and can withstand temporary immersion in water up to 1 meter deep for 30 minutes (7). This makes it suitable for washdown areas, outdoor use, and environments with oil mist or splashing liquids, but the electrical connections (cable gland/entry) must be properly sealed.

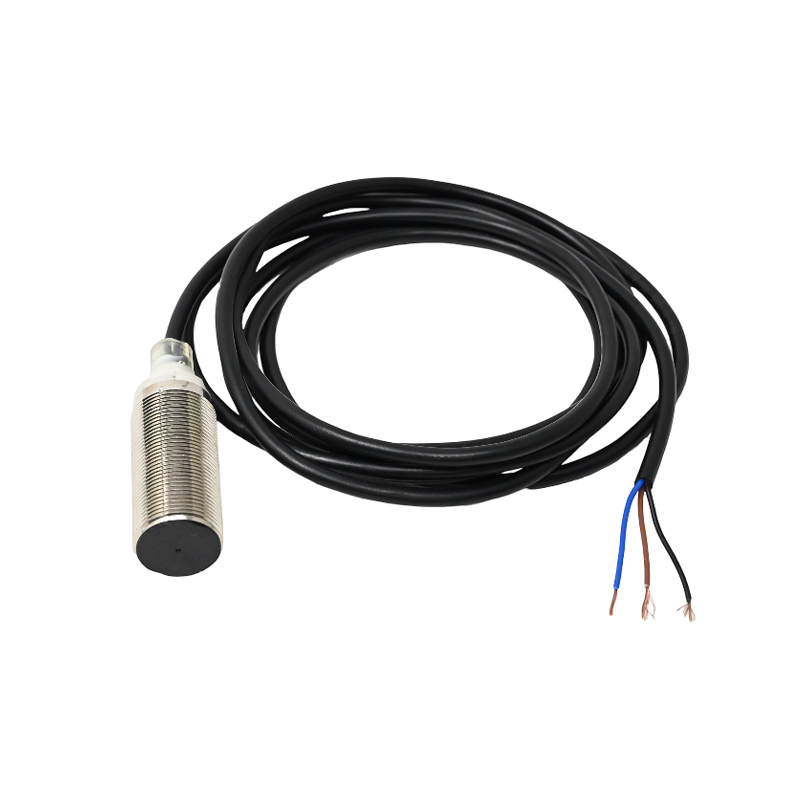

The standard 3-wire PVC cable typically has brown (V+), blue (V- / GND), and black (output signal) wires. Connect brown to your DC positive supply (10-30V), blue to DC negative/ground, and the black output wire to your PLC or controller's input terminal. Always refer to the specific datasheet for the exact wire color coding.
