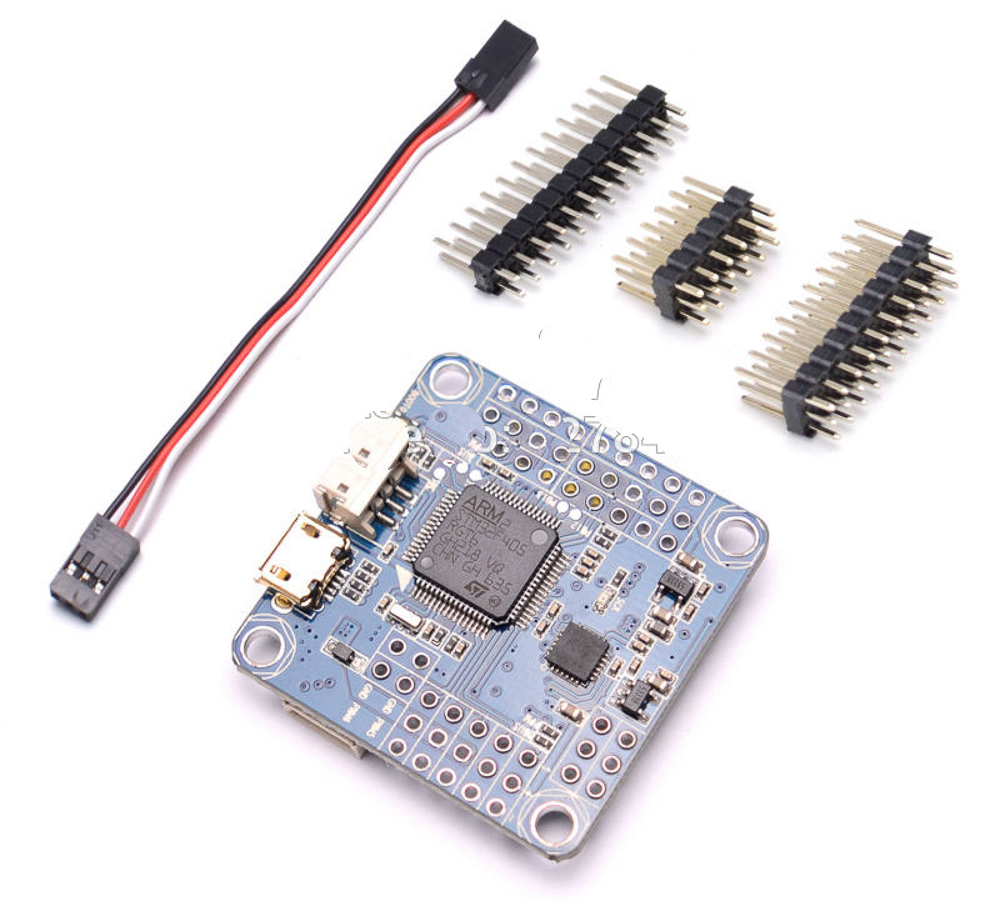

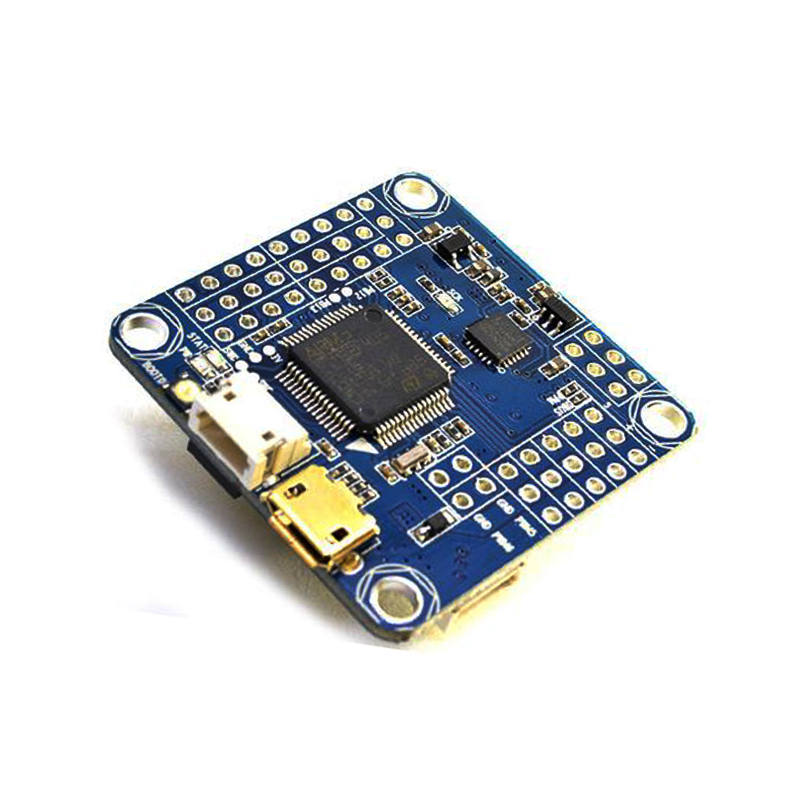

Omnibus F4 V2 PRO Flight Controller with Built-in OSD

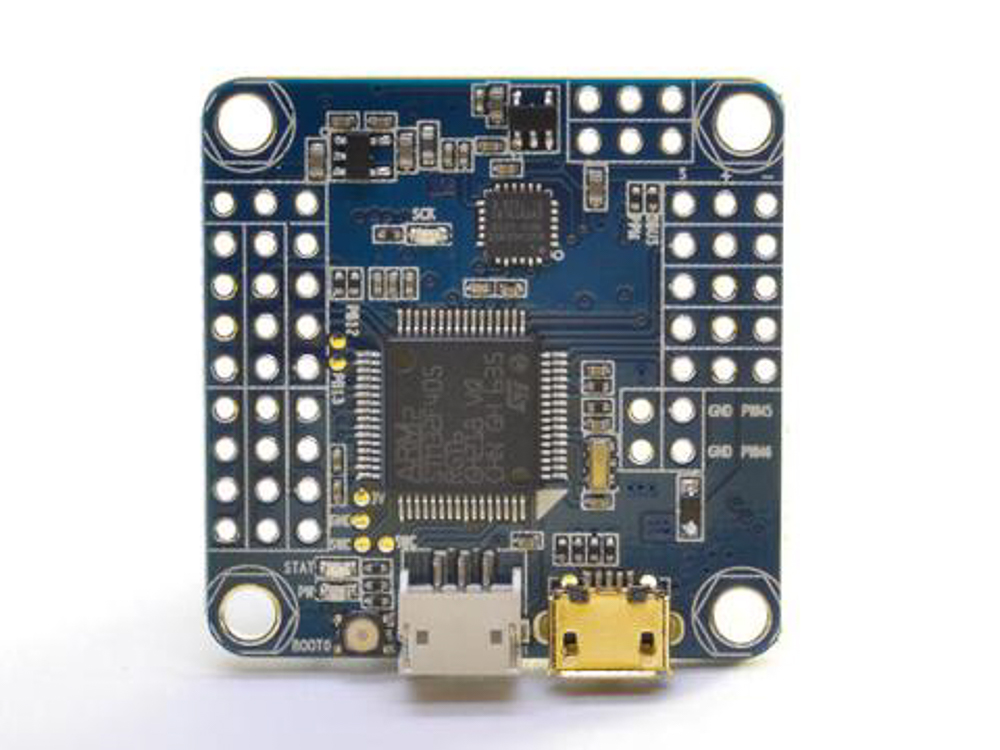

The Omnibus F4 V2 PRO is a 36x36mm flight controller built around the STM32 F405 MCU, featuring a built-in AB7456 OSD chip, integrated 5V/1.5A BEC, and SPI-based MPU6000 IMU for high-performance Betaflight, Raceflight, and dRonin firmware compatibility.
Features
- STM32 F405 MCU with 128Mbit flash memory for extensive blackbox logging and advanced firmware.
- Integrated AB7456 OSD chip configurable directly via Betaflight Configurator (3.0.1+).
- SPI-connected MPU6000 IMU (gyro/accelerometer) for superior flight performance and low-latency response.
- Onboard 5V/1.5A LDO regulator allows direct LiPo battery input, eliminating the need for a separate PDB.
- Compact 36x36mm footprint with 30.5×30.5mm mounting pattern for standard FPV drone builds.
Out of stock

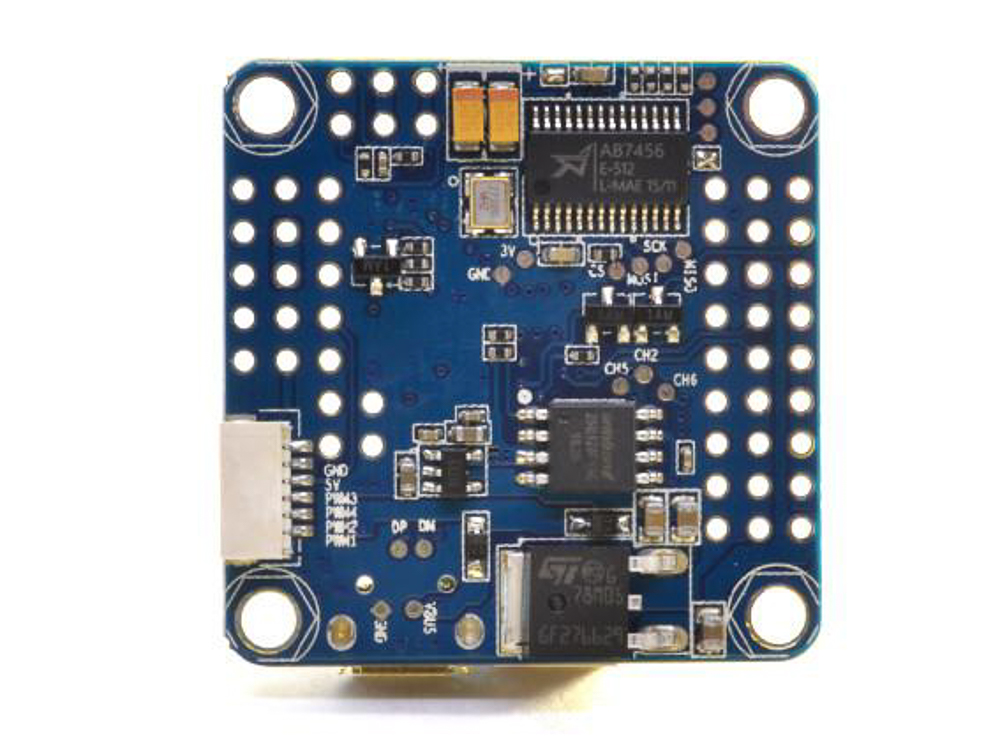

The Omnibus F4 V2 PRO Flight Controller delivers a robust F4-based processing platform tailored for high-performance FPV racing and freestyle drones. Its core STM32 F405 microcontroller provides ample processing power for Betaflight, Raceflight, and dRonin firmware, supported by 128Mbit of onboard flash for detailed blackbox data analysis. The integrated AB7456 OSD chip, a direct upgrade from the MAX7456, enables full OSD configuration within the Betaflight Configurator without requiring external modules.
Electrical design incorporates a high-efficiency 5V/1.5A linear voltage regulator, allowing the board to be powered directly from a 2S-6S LiPo flight battery, simplifying power distribution. The SPI-bus MPU6000 sensor ensures minimal latency and high gyro/accelerometer data rates, which is critical for precise acrobatic control and tight tuning. The board’s compact 36x36mm size and standard 30.5×30.5mm mounting hole pattern ensure compatibility with a wide range of FPV drone frames.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.6 × 3.6 × 0.7 cm |
