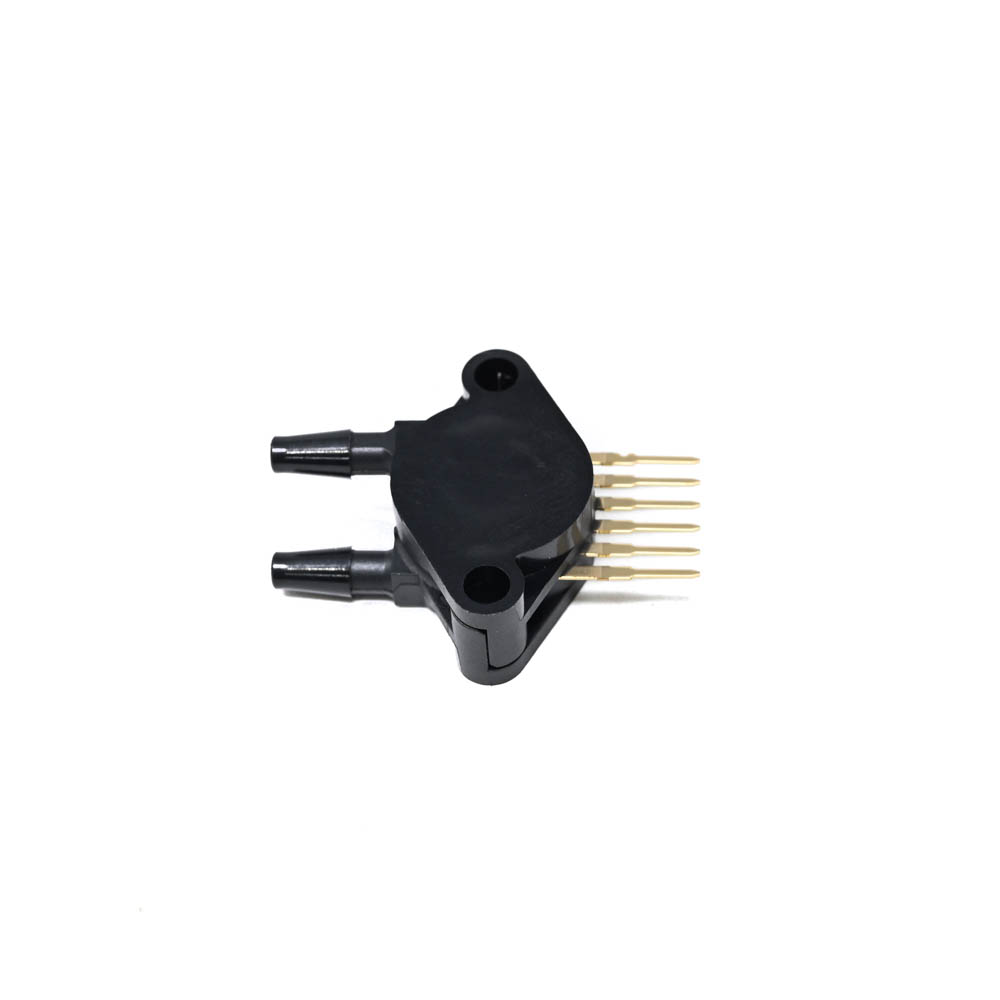

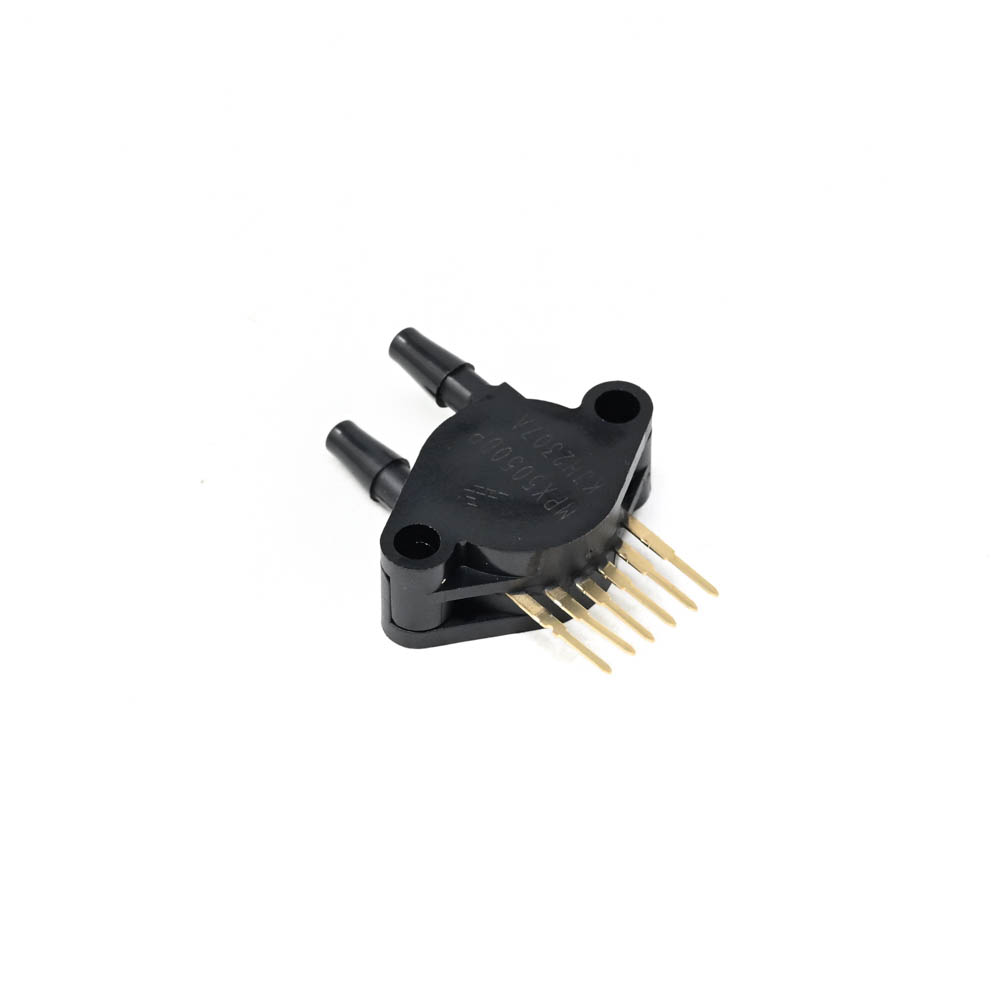

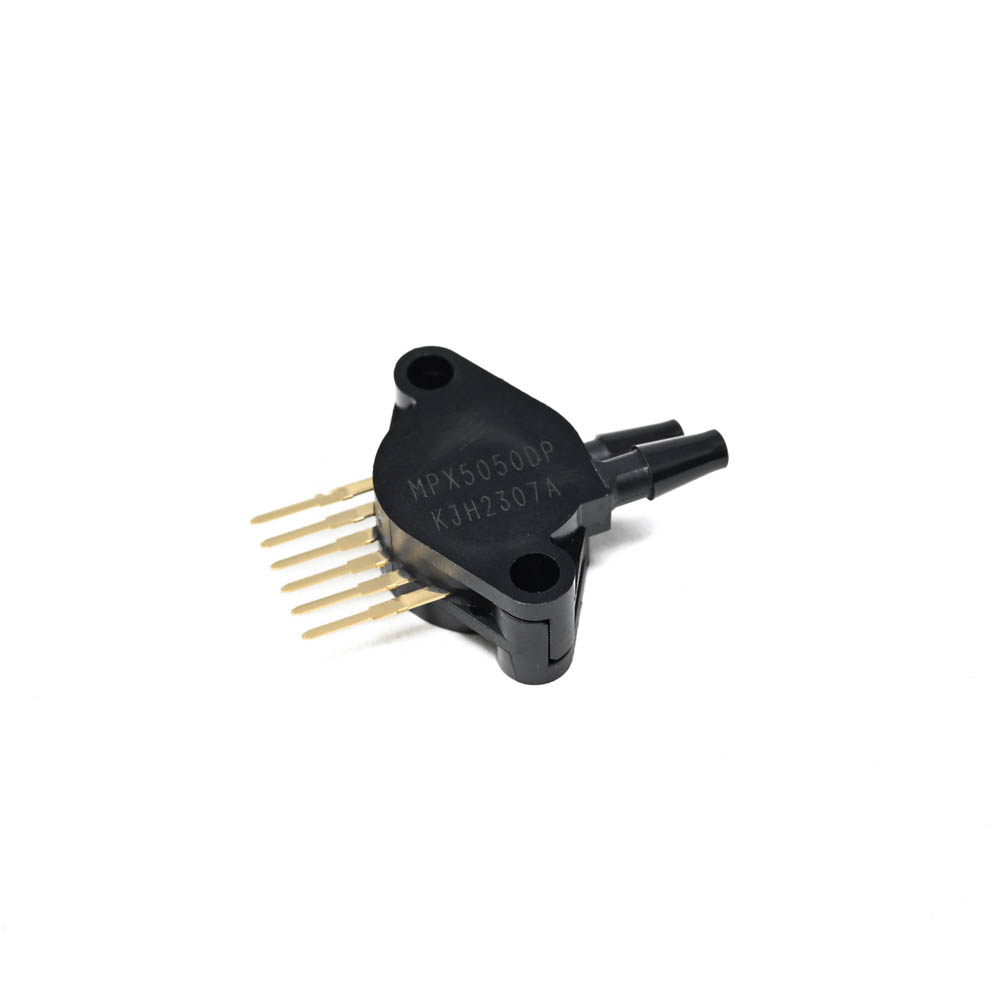

NXP Semiconductors MPX5050DP Differential Pressure Sensor, 0-50 kPa, 90 mV/kPa, SIP 6-Pin
The NXP Semiconductors MPX5050DP is a differential silicon piezoresistive pressure sensor delivering a calibrated analog voltage output of 90 mV/kPa over a 0 to 50 kPa range. Operating from a 4.75-5.25V supply, this 6-pin SIP device is ideal for integration into microcontroller-based systems like Arduino, Raspberry Pi, and industrial PLCs for precise pressure monitoring.
Features
- Differential pressure sensing from 0 to 50 kPa.
- High sensitivity analog output of 90 mV/kPa.
- On-chip signal conditioning with temperature compensation from -40°C to 125°C.
- Patented monolithic silicon shear stress strain gauge for accuracy.
- 6-pin SIP package for easy PCB mounting.
Out of stock
The MPX5050DP is a dual-port, differential pressure sensor utilizing a monolithic silicon piezoresistive MEMS transducer. Its patented shear stress strain gauge design, combined with advanced thin-film metallization and on-chip bipolar signal conditioning, provides a highly stable and accurate analog voltage output proportional to the applied differential pressure.
Fully calibrated and temperature compensated from -40°C to 125°C, the sensor maintains a maximum error of ±2.5% Full Scale over the 0°C to 85°C range. The durable epoxy unibody construction and fast 1 ms response time make it suitable for demanding applications in dynamic systems requiring reliable pressure feedback.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 7 × 10 × 3 cm |
