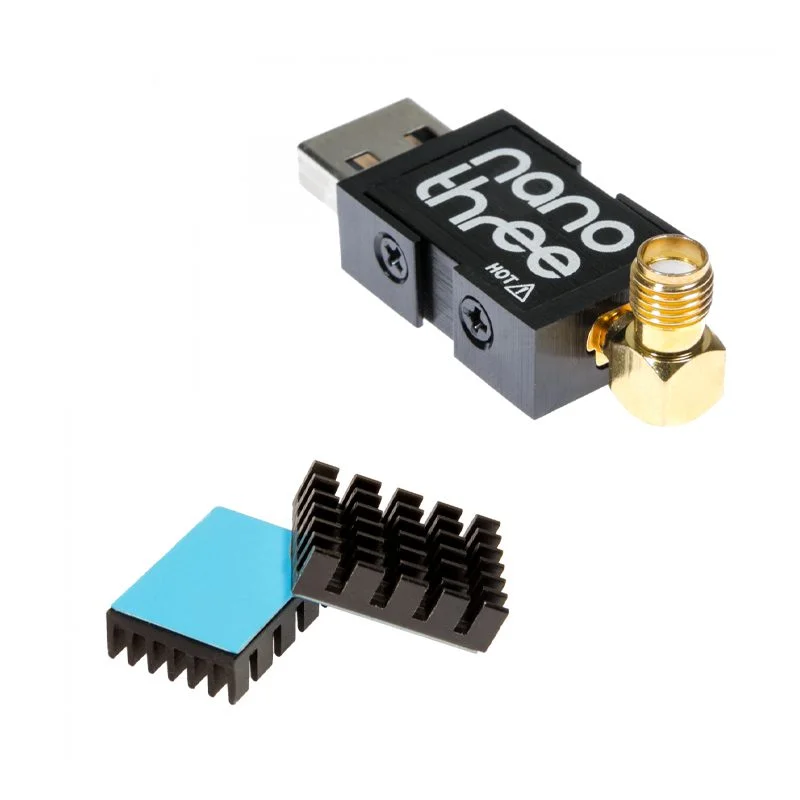

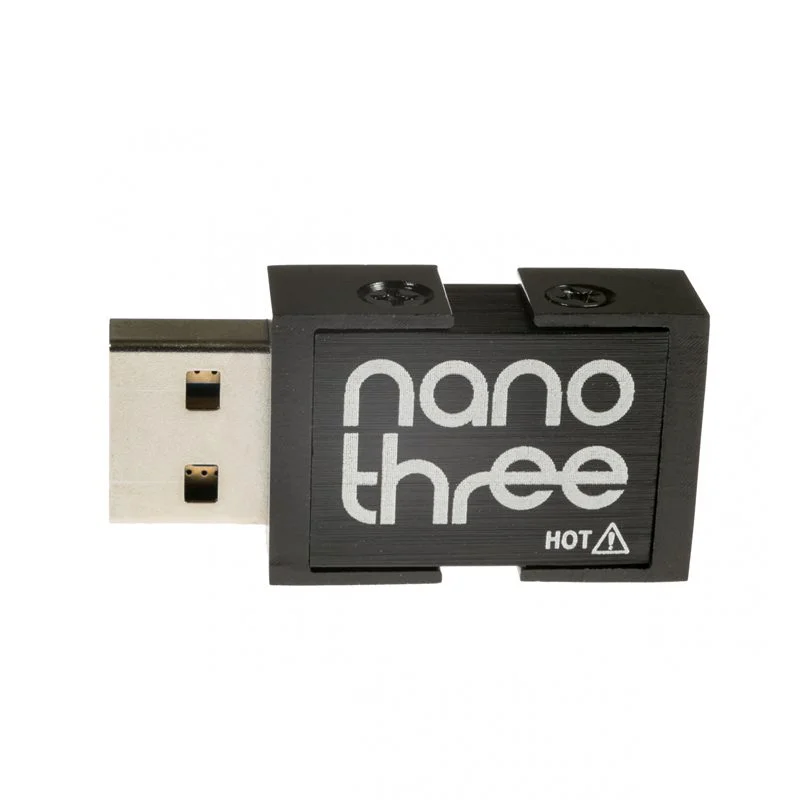

Nooelec NESDR Nano 3 RTL-SDR Blog USB Receiver w/ 0.5PPM TCXO & SMA

The NESDR Nano 3 is compatible with most popular SDR software packages across multiple platforms. On Windows, you can use SDR#, HDSDR, or SDR Console. For Linux and macOS, Gqrx and CubicSDR are excellent choices. On Raspberry Pi, it works with Gqrx, RTL-SDR Blog command-line tools, and OpenWebRX. Installation typically involves installing the Generic RTL-SDR Blog drivers and then launching your preferred application to begin receiving.

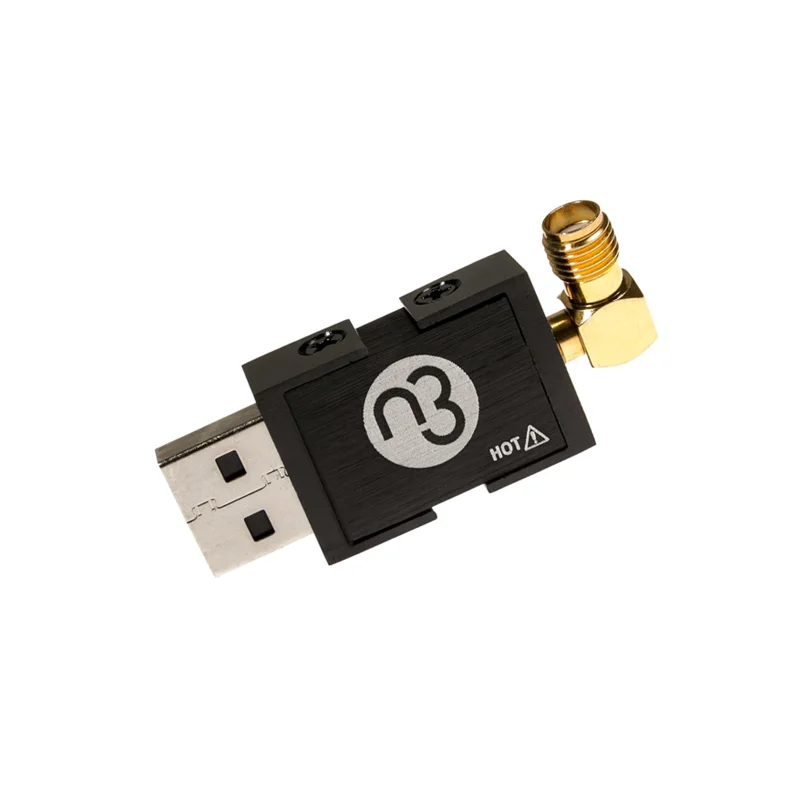

The device features a right-angle female SMA connector. To connect an antenna, you need an antenna with a male SMA plug or use an appropriate adapter (e.g., SMA male to N-type female). Ensure the antenna's frequency range covers your target band (e.g., a VHF/UHF antenna for ADS-B). For optimal performance, keep antenna cables as short as possible and position the antenna away from sources of electrical noise like computers and switching power supplies.

The 0.5 Parts-Per-Million Temperature Compensated Crystal Oscillator provides exceptional frequency stability. Standard crystal oscillators can drift with temperature changes, causing tuning inaccuracies. The TCXO actively compensates for thermal drift, ensuring the receiver's tuned frequency remains precise. This is critical for applications like decoding narrowband digital signals, satellite telemetry, or any scenario where accurate, stable frequency control is required for reliable data reception.

Yes, the NESDR Nano 3 is designed for bus-powered USB operation at 5V and draws minimal current, making it fully compatible with a Raspberry Pi's USB ports. For setups involving multiple SDRs or other USB peripherals, consider using a powered USB hub to ensure stable power delivery and prevent potential voltage drops that could affect the Pi's performance or the SDR's operation.
