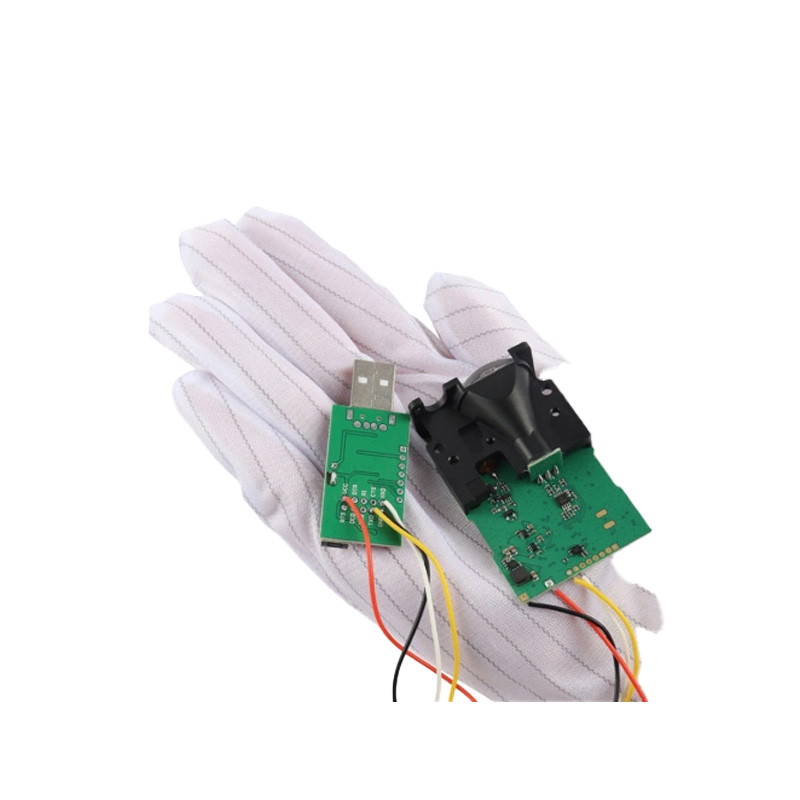

Meskernel LDJ-150 High Accuracy Phase Distance Sensor (LDJ Series Red Visible Laser) USB to RS485
The Meskernel LDJ-150 is a high-precision phase-shift laser distance sensor with a 150-meter range and ±3 mm accuracy, featuring a red visible laser for easy targeting. It offers USART, RS232, and RS485 interfaces for direct integration with industrial PLCs, SCADA systems, and embedded platforms like Arduino or Raspberry Pi via USB-to-serial converters.
Features
- High-precision phase-shift laser ranging up to 150 meters with ±3 mm accuracy.
- Dual measurement modes: single-shot and continuous measurement at a 3Hz frequency.
- Multi-protocol serial interface (USART/RS232/RS485) for flexible industrial integration.
- Class II red visible laser (610-690 nm, <1 mW) for safe, easy target alignment.
- Robust operating temperature range from -40°C to +60°C for harsh environments.
Out of stock
The LDJ-150 utilizes a phase-shift laser measurement principle to deliver highly accurate distance data over an extended 150-meter range. Its visible red laser spot simplifies target acquisition and alignment in field applications. The sensor outputs digital distance values via configurable serial protocols, making it compatible with a wide array of data acquisition systems and controllers.
Engineered for reliability in demanding conditions, the sensor operates across a -40°C to +60°C temperature range. Its compact, lightweight housing facilitates integration into mobile robotic platforms like AGVs and AMRs, as well as fixed installations for surveying, inventory management, and industrial automation.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 11 × 17 × 2 cm |
