Arduino Mega Proto Shield Rev3

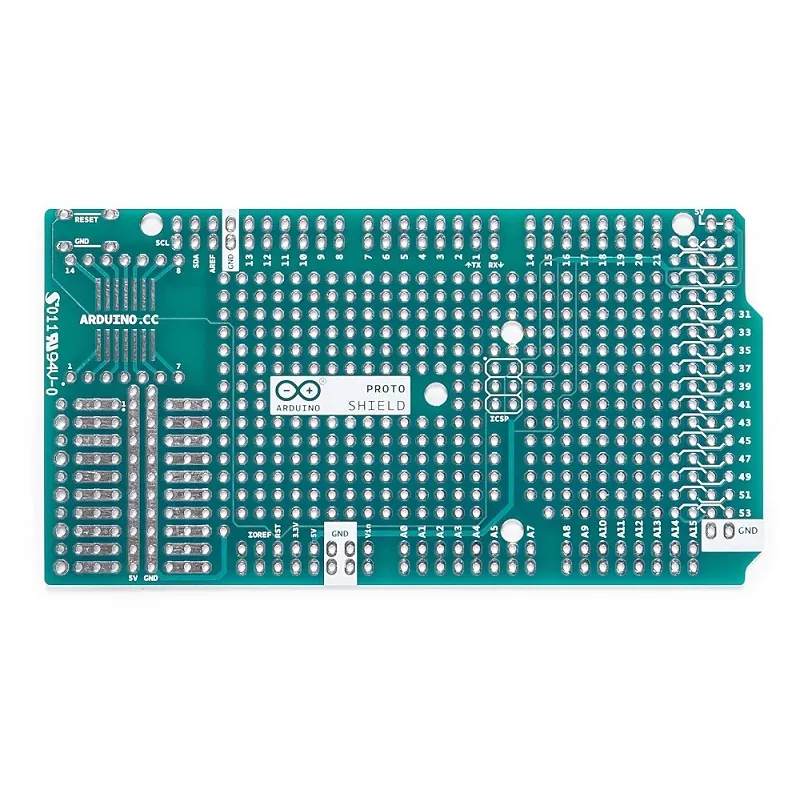

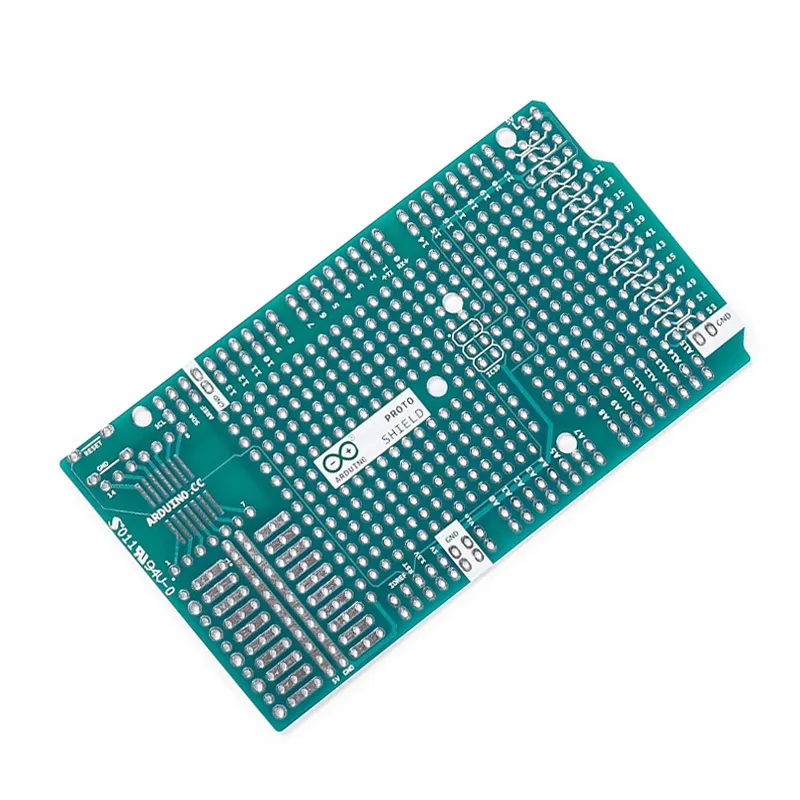

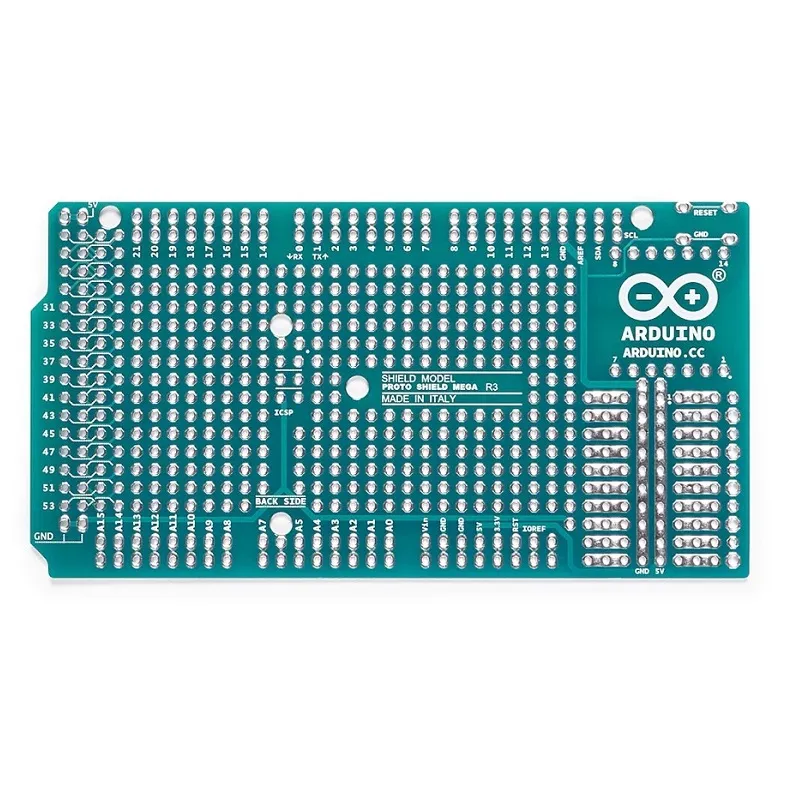

The Arduino Mega Proto Shield Rev3 provides a versatile prototyping platform specifically designed for Arduino Mega boards. It facilitates custom circuit creation with extensive solderable pads and direct access to the Mega’s I/O pins, making it ideal for integrating sensors, LEDs, and various components.
Features
- Designed for direct compatibility with Arduino Mega development boards.
- Features extensive prototyping area with through-hole and SMD solderable pads.
- Includes a dedicated Reset button and an ICSP connector for expanded functionality.
- Adheres to the standard Arduino 1.0 pinout for seamless integration.
- Supports direct powering of external components via an onboard power supply circuit.
Out of stock
The Arduino Mega Proto Shield Rev3 is an essential prototyping accessory engineered to extend the capabilities of your Arduino Mega board. This shield offers a generous grid of solderable pads, providing a flexible canvas for building and testing custom electronic circuits. It ensures direct connectivity to the Mega’s abundant I/O pins, simplifying the integration of diverse components such as sensors, actuators, and display modules.
Equipped with a robust design, the Proto Shield Rev3 includes crucial features like a reset button and an ICSP (In-Circuit Serial Programming) connector, enhancing its utility for advanced development. Its integrated power supply circuit allows for convenient powering of external components directly from the Arduino, streamlining project setups. The shield’s stackable design further enables developers to combine it with other shields, expanding the overall functionality of their Arduino Mega projects efficiently.
Additional Information
| Weight | 0.023 kg |
|---|---|
| Dimensions | 11 × 11 × 2 cm |
