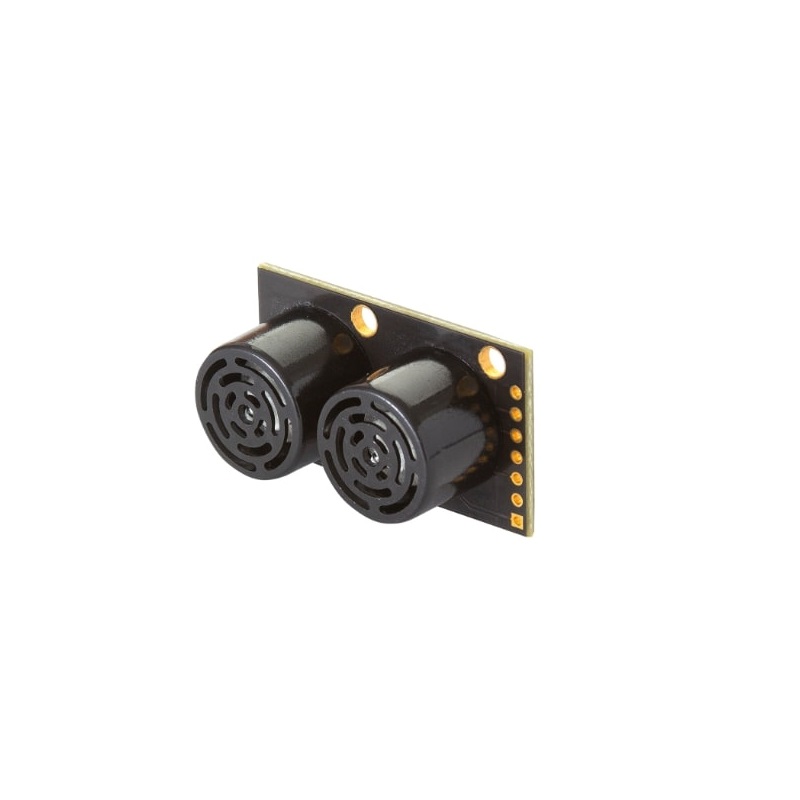

MaxBotix MB1634 HRLV-ShortRange-EZ3T Ultrasonic Distance Sensor - Pulse/Analog/TTL Output
The MaxBotix MB1634 HRLV-ShortRange-EZ3T is a high-resolution ultrasonic distance sensor offering 1-mm resolution and a 2 cm to 5 m range. It provides flexible pulse-width, analog voltage, and TTL serial outputs for easy integration with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs.
Features
- High-resolution 1-mm measurement accuracy for precise short-range detection.
- Multiple output options: Pulse-width, analog voltage (0-Vcc), and TTL serial (RS232).
- Narrow beam pattern with good side object rejection for focused readings.
- Internal temperature compensation and real-time automatic calibration for stable performance.
- Low power consumption (2.5-5.5V) suitable for multi-sensor arrays and battery-powered systems.
Out of stock
The MB1634 HRLV-ShortRange-EZ3T ultrasonic sensor utilizes advanced sonar ranging technology to deliver precise distance measurements from 2 cm up to 5 meters. Its narrow acoustic beam pattern enhances sensitivity while minimizing interference from off-axis objects, making it ideal for applications requiring accurate detection in confined spaces.
Engineered for reliability, the module features on-board firmware filtering for improved noise tolerance and clutter rejection. Its wide operating voltage range of 2.5 to 5.5V DC, coupled with low current draw, allows for seamless deployment in portable devices and distributed sensing networks. The sensor’s robust design ensures consistent operation across an industrial temperature range of -15°C to +65°C.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 4 × 6 × 2 cm |
