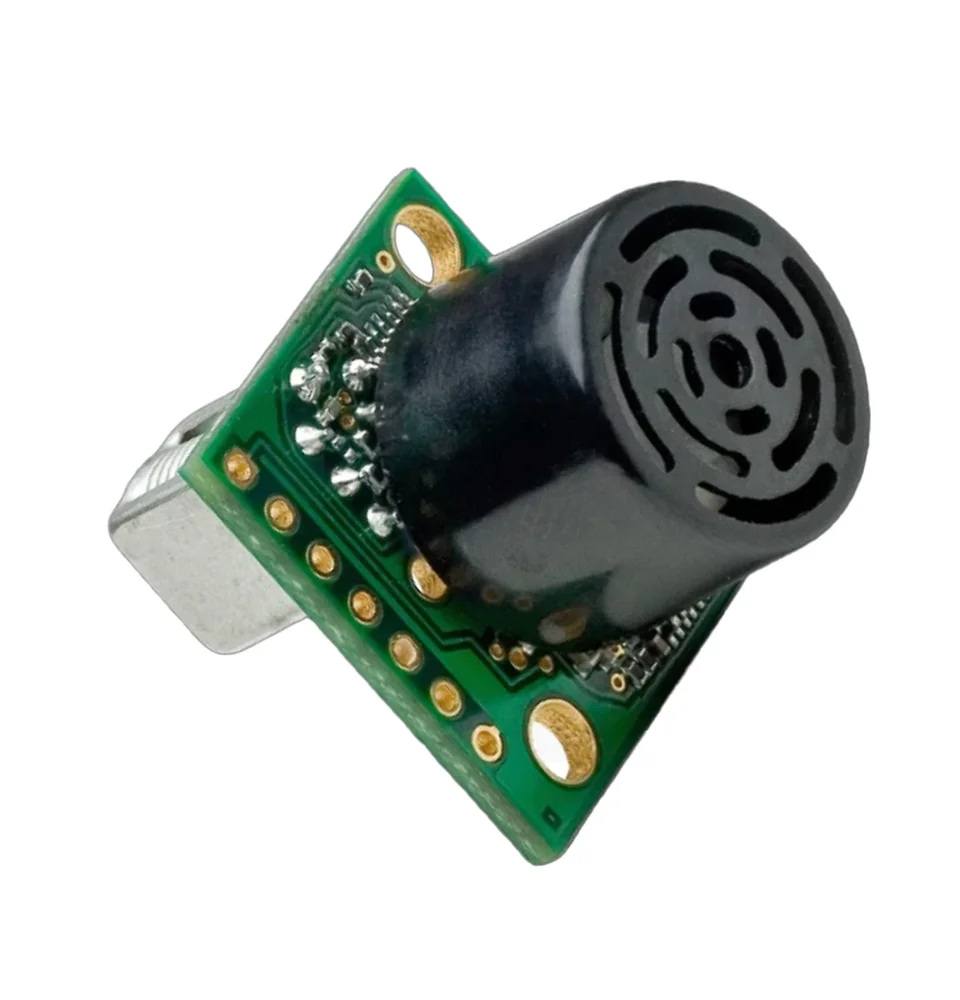

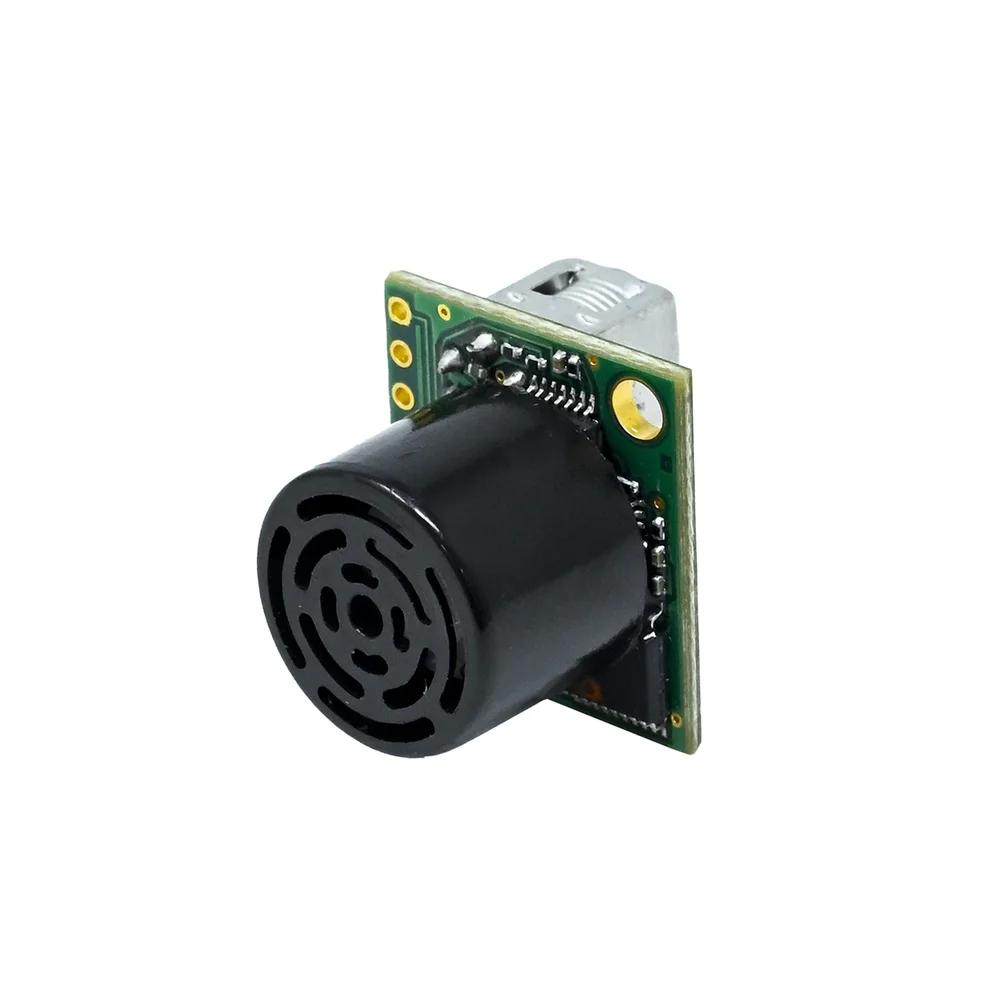

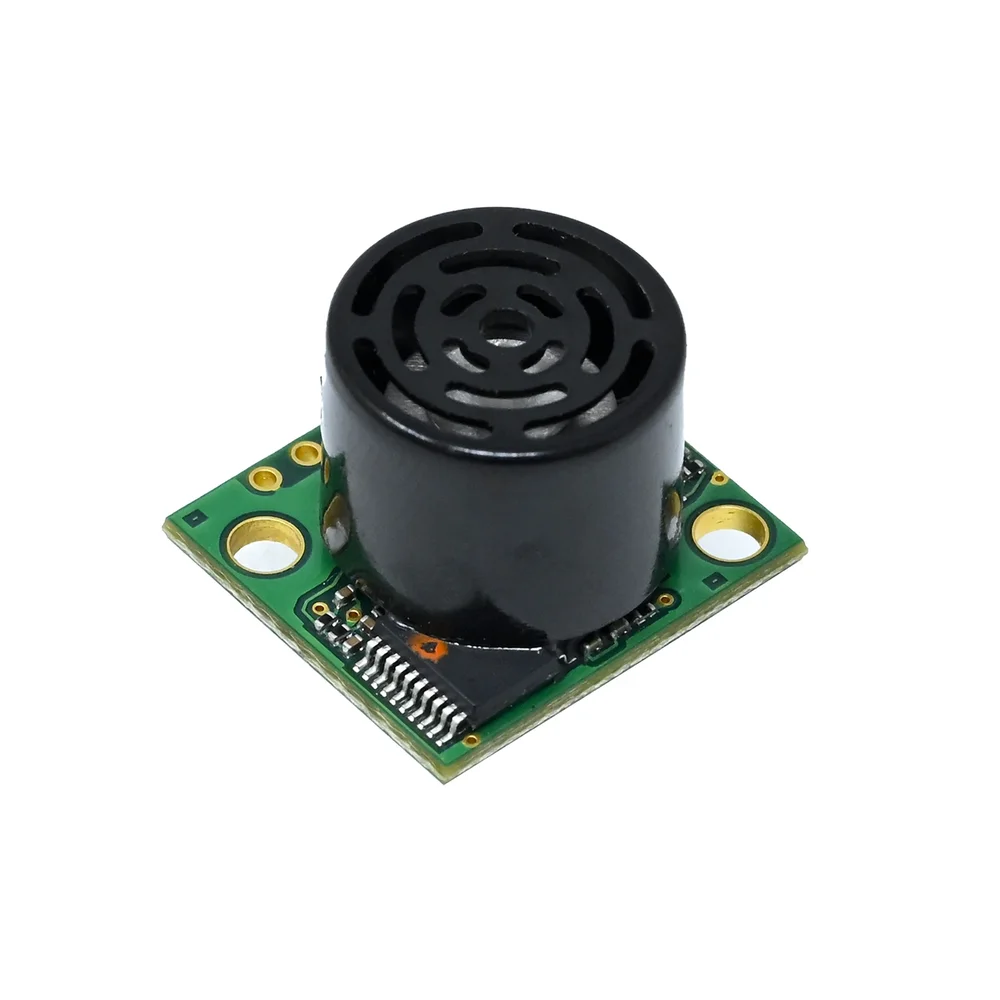

MaxBotix MB1230 XL-MaxSonar-EZ3 Ultrasonic Rangefinder - 20cm to 765cm Range, Analog/Serial/PWM Output
The MaxBotix MB1230 XL-MaxSonar-EZ3 is a high-performance ultrasonic rangefinder offering a 20cm to 765cm measurement range with 1cm resolution. Operating from a 3.3V to 5.5V DC supply, it provides Analog Voltage, TTL Serial, and Pulse Width outputs for seamless integration with Arduino, Raspberry Pi, robotics, and industrial control systems.
Features
- Wide ultrasonic ranging from 20cm to 765cm with 1cm resolution.
- Triple output interface: Analog Voltage, TTL Serial (UART), and Pulse Width (PWM).
- Operates on 3.3V to 5.5V DC with low 3.4mA average current consumption.
- 42kHz narrow beam pattern with real-time automatic sensitivity adjustment.
- Advanced firmware filtering for superior noise rejection in electrically and acoustically noisy environments.
Out of stock
The MB1230 XL-MaxSonar-EZ3 utilizes a 42kHz ultrasonic transducer and sophisticated signal processing to deliver stable, accurate distance measurements. Its solid-state design and automatic sensitivity control ensure reliable performance across varying target sizes and environmental conditions, including areas with high acoustic or electrical interference.

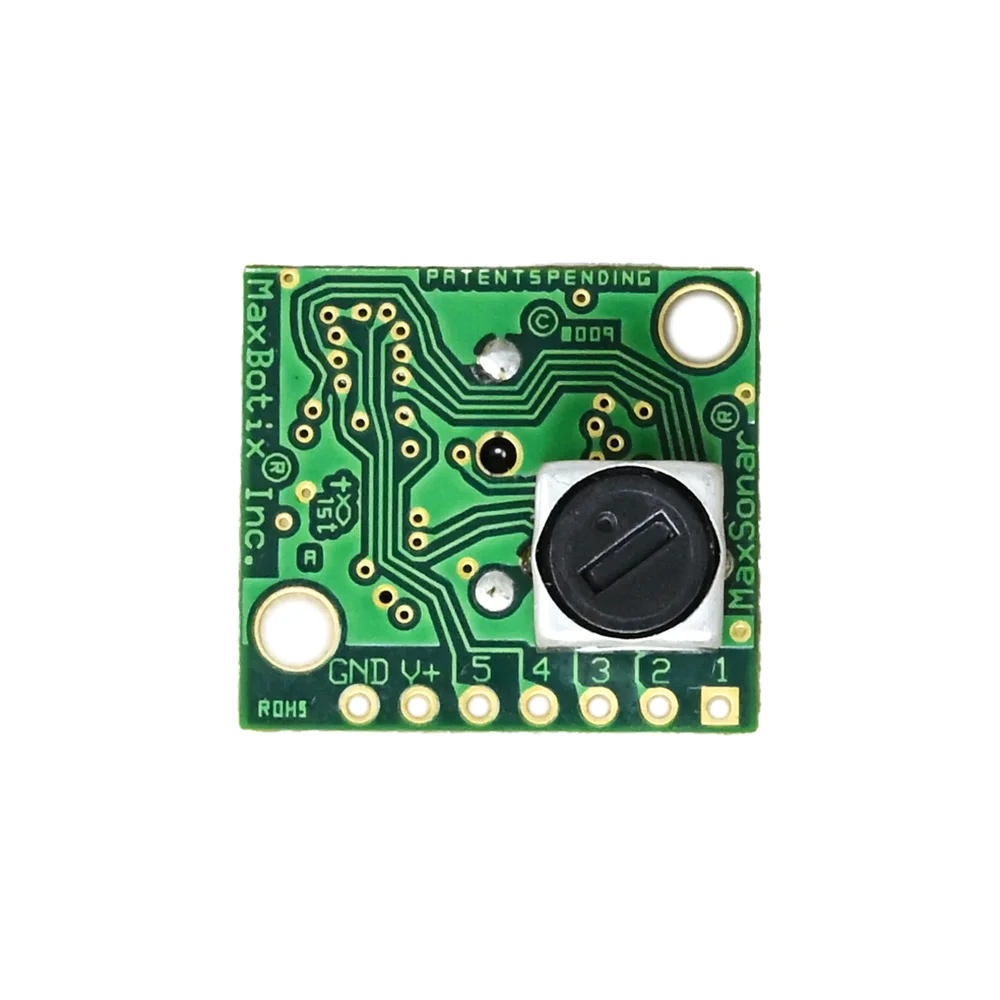

This sensor is engineered for continuous operation in demanding applications, featuring a compact PCB-mount form factor and a wide operating temperature range. The combination of multiple output formats provides maximum flexibility for system integration, from simple analog readouts to serial data logging on microcontrollers and single-board computers.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 5 × 2 × 5 cm |
