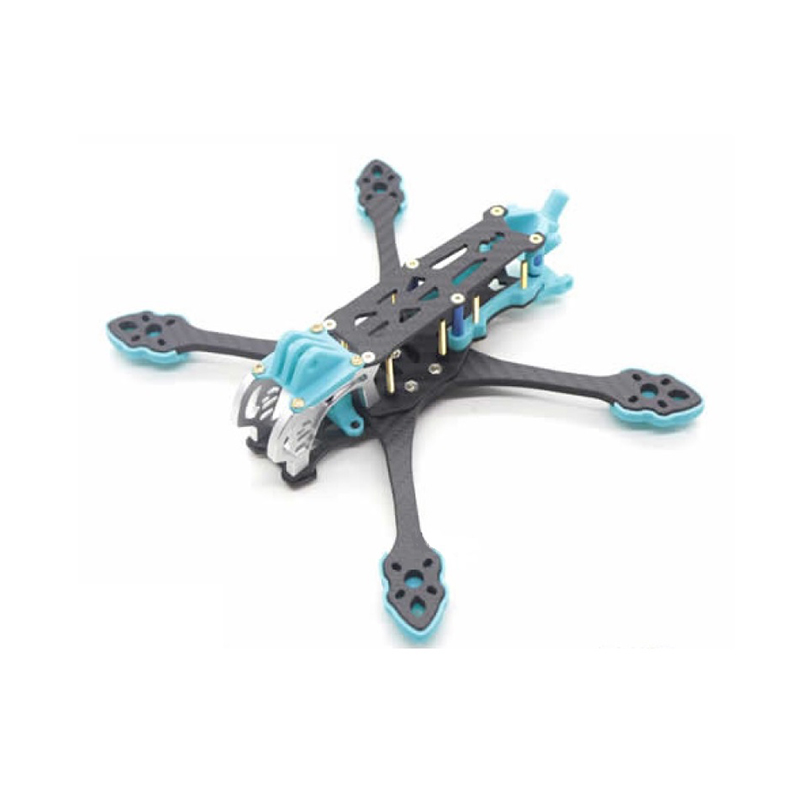

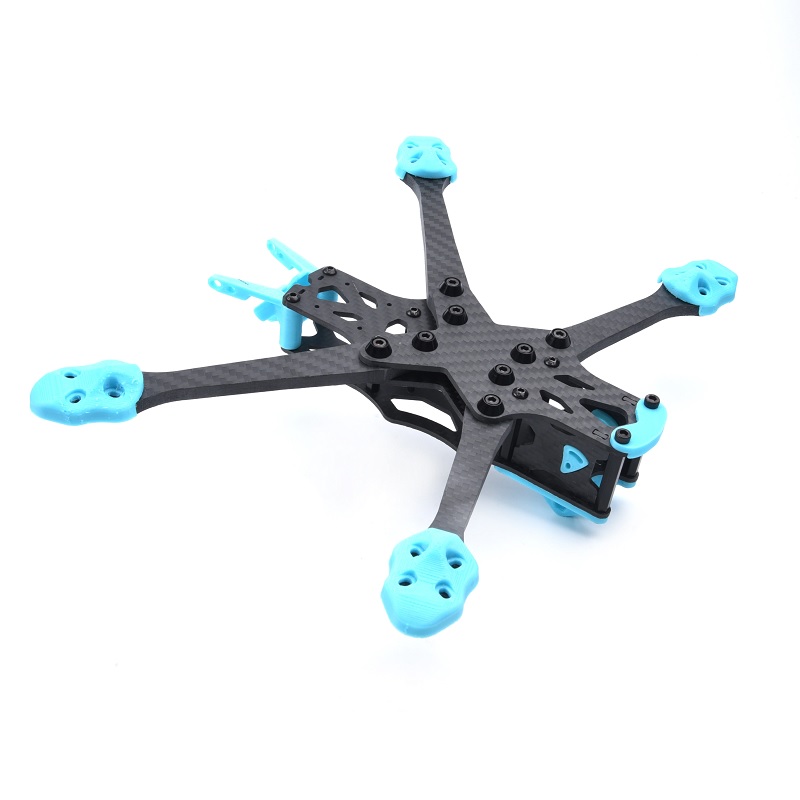

MARK5 5-Inch 225mm FPV Carbon Fiber Freestyle Frame
The MARK5 5-inch 225mm FPV Carbon Fiber Frame is a durable and lightweight DIY kit designed for freestyle and racing drones, offering robust protection for electronic components and versatile compatibility with various FPV systems and camera mounts.
Features
- Durable carbon fiber construction with 5.0mm thick arms for high-impact resistance.
- 225mm wheelbase optimized for agile 5-inch propeller freestyle and racing setups.
- Compatible with 30.5×30.5mm and 20x20mm flight control stacks and 19-20mm FPV cameras.
- Integrated 7075 aluminum alloy side plates effectively protect the FPV lens.
- Dedicated TPU base support for GoPro and similar action cameras, enhancing versatility.
Out of stock
The MARK5 5-inch 225mm FPV Carbon Fiber Frame provides a robust and well-protected chassis for high-performance FPV builds. Its fundamental design incorporates a durable carbon fiber body to safeguard critical electronic components like the flight controller, 4-in-1 ESC, FPV camera, and VTX, complemented by sturdy arms for motor installation. This wide X-arm configuration ensures a stable yet agile flight platform suitable for both aggressive freestyle maneuvers and precision racing.
Engineered for versatility, the frame features 7075 aluminum alloy side plates that not only enhance structural integrity but also offer superior protection for FPV camera lenses, accommodating 19-20mm width units, including direct compatibility with DJI’s original lens. Mounting provisions are included for both 30.5×30.5mm and 20x20mm flight stacks, along with motor mounting holes for 16x16mm and 19x19mm patterns. The design also integrates shock-absorbing elements to minimize vibration, ensuring a stable operational environment for all onboard electronics and enhancing overall flight smoothness. A dedicated TPU base facilitates secure mounting of action cameras like GoPro 8, making it ideal for capturing high-quality aerial footage.
Additional Information
| Dimensions | 21 × 11 × 4 cm |
|---|
