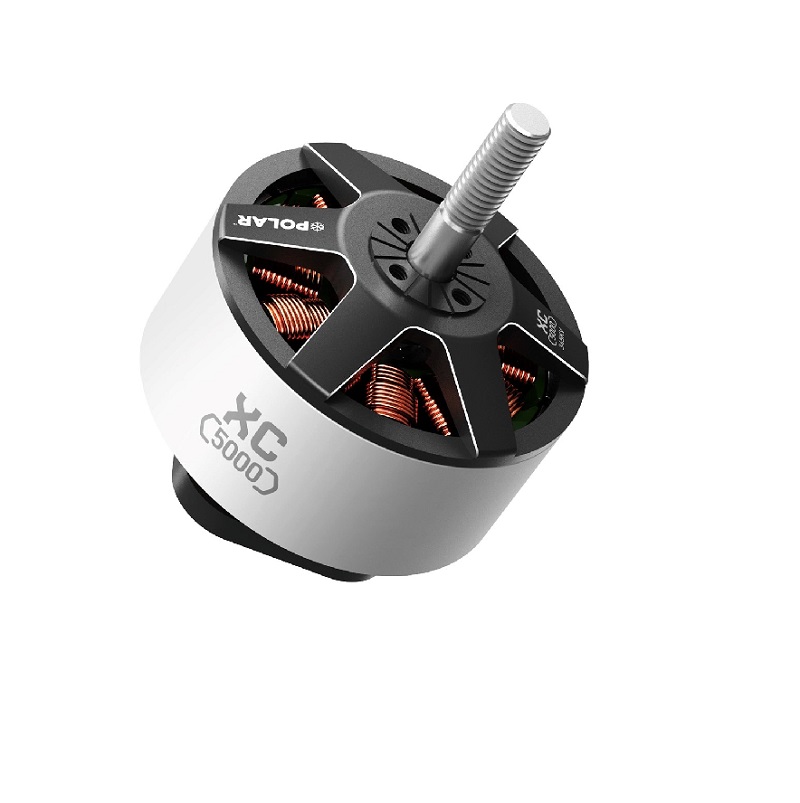

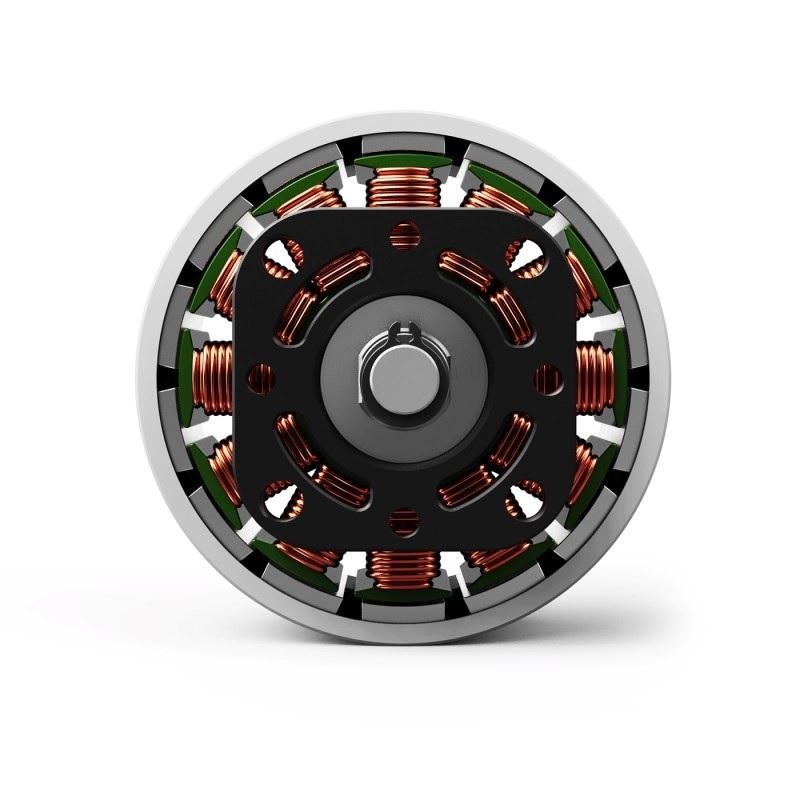

MAD Components Components XC5000 POLAR Brushless Motor 380KV
The MAD Components Components XC5000 POLAR is a high-performance 380KV brushless motor engineered for demanding industrial and enterprise UAV applications, supporting 8-12S LiPo battery systems for heavy-lift and high-power VTOL platforms.
Features
- High-torque 380KV motor optimized for 8-12S LiPo power systems.
- Delivers up to 2886W peak power and 74.8A maximum current.
- Generates a maximum thrust of 6.1kg per motor for heavy payloads.
- Features a robust internal construction with three durable bearings for longevity.
- Low internal resistance of 51mΩ ensures efficient power delivery and thermal management.
Out of stock
The XC5000 POLAR motor series from MAD Components Components is engineered for the most demanding aerial platforms, including large-scale multirotors, VTOL aircraft, and agricultural drones requiring 2-3kg of lift per rotor. Its electrical design prioritizes high torque and thermal efficiency, enabling sustained operation under heavy loads.
Built with a focus on structural durability, the motor incorporates three high-quality bearings to handle axial and radial stresses, ensuring reliable performance in industrial environments. The optimized magnetic circuit and low-resistance windings work in concert to deliver 2886W of peak power while managing heat generation effectively.
Additional Information
| Weight | 0.555 kg |
|---|---|
| Dimensions | 12 × 12 × 10 cm |
