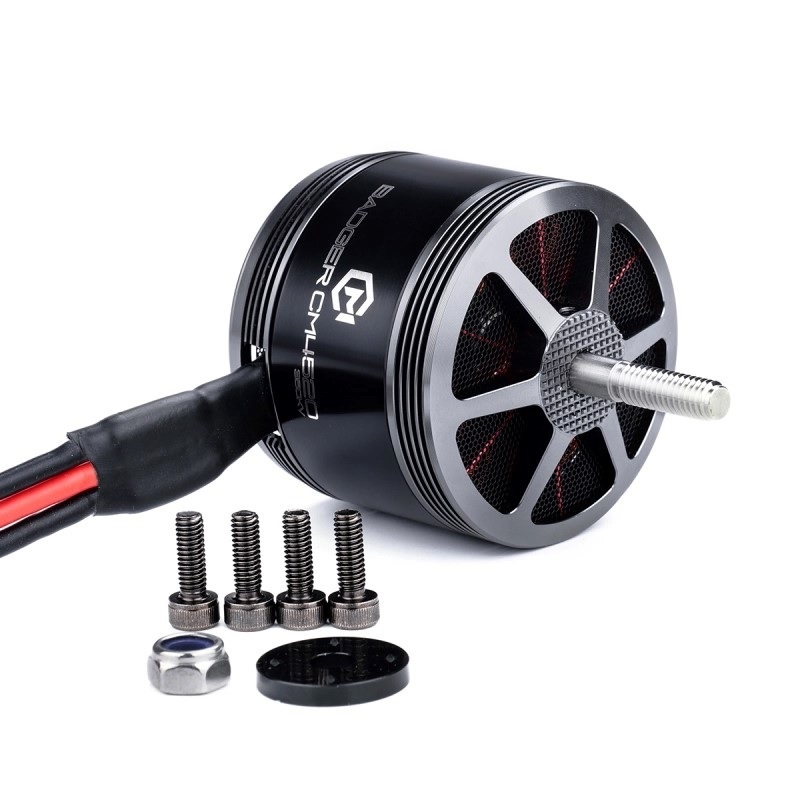

MAD Components Components CM 4530 LIFTER FPV Drone Motor 380KV

This motor is specifically wound for 12S LiPo battery configurations (nominal 44.4V). Using lower voltage packs (e.g., 6S) will significantly reduce its torque and thrust output, while exceeding 12S may damage the windings due to excessive RPM and current. Always pair it with high-C-rate 12S batteries and ESCs rated for continuous current above 120A.

The motor incorporates two ultra-thin stainless steel mesh filters positioned inside the stator cavity. They act as a physical barrier to prevent dust and debris from contacting the copper windings and bearings. While highly durable, these filters are not typically user-serviceable without disassembling the motor. For maintenance in extremely abrasive environments, periodic inspection and careful cleaning with compressed air are recommended.

For optimal heavy-lift performance on 12S, pair this motor with large-diameter, low-pitch propellers, typically in the range of 18x6 to 22x10 inches, depending on your desired thrust efficiency and flight characteristics. You must use a high-quality Electronic Speed Controller (ESC) that supports 12S voltage and can deliver a continuous current of at least 130A to safely handle the motor's 122.3A peak draw, preferably with active cooling.

While its 380KV rating and high-torque design are primarily optimized for heavy-lift and efficient cruise flight, it can be used in large-scale, high-power racing drones built for 12S systems. However, its weight (~755g) and design focus on sustained power over peak burst RPM make it less ideal for lightweight, agile 5-inch racers compared to dedicated high-KV racing motors. It excels in applications where raw lifting capacity and thermal endurance are the priority.
