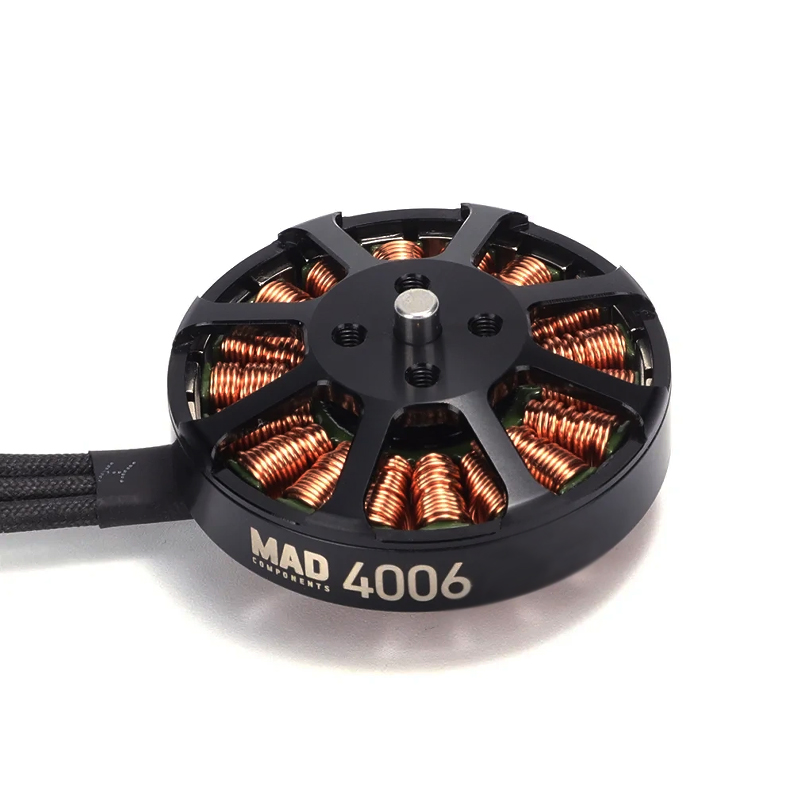

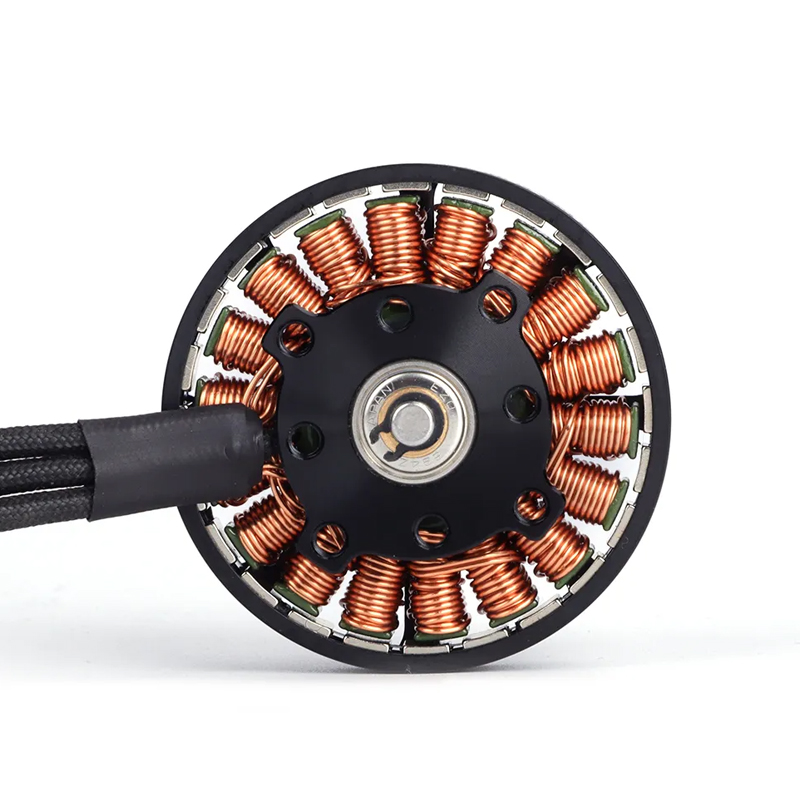

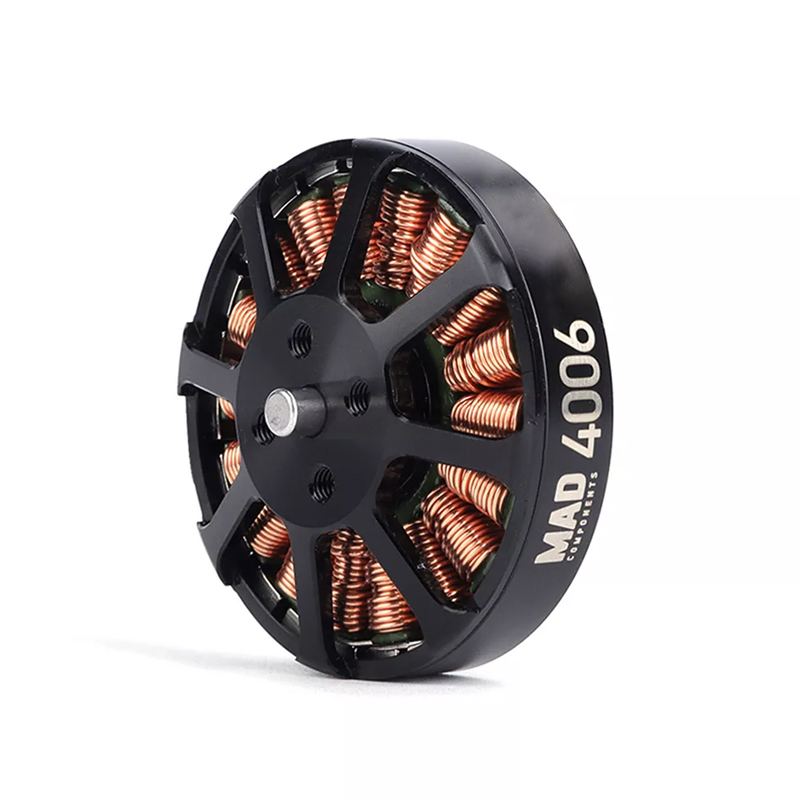

MAD Components 4006 EEE Brushless Motor 320KV (Pack Of 2)
The MAD Components 4006 EEE is a 320KV brushless motor engineered for high-torque, low-RPM applications on 6S to 8S LiPo systems, delivering up to 2.2kg of thrust per motor for professional cinematography and industrial inspection drones.
Features
- Delivers up to 2.2kg of thrust per motor for heavy-lift and high-performance applications.
- Optimized for 6S to 8S LiPo battery systems, enabling extended flight endurance.
- Precision-balanced rotor design maintains vibration levels below 5mg for smooth, stable footage.
- Ultra-lightweight construction at 90g per motor maximizes power-to-weight efficiency.
- Features dual 694ZZ bearings and a 4mm shaft for reliable, high-torque operation.
Out of stock
The MAD Components 4006 EEE brushless motor is designed for professional UAV platforms requiring a blend of high thrust, low vibration, and efficient power consumption. Its 320KV rating and optimized electromagnetic design provide substantial torque at lower RPMs, making it ideal for spinning large 13″ to 16″ carbon fiber propellers on multirotor cinematography and inspection rigs.
Constructed with a focus on durability and thermal management, the motor supports continuous high-power operation. The dual mounting hole patterns (D25 M3x4 and D19 M3x4) offer flexible integration into a wide range of heavy-lift and industrial drone frames, ensuring compatibility with various payload configurations.
Additional Information
| Weight | 0.306 kg |
|---|---|
| Dimensions | 11 × 11 × 6 cm |
