Livox Avia LiDAR v1.0 - 905nm, 70.4°×77.2° FOV, Triple Echo, IP67

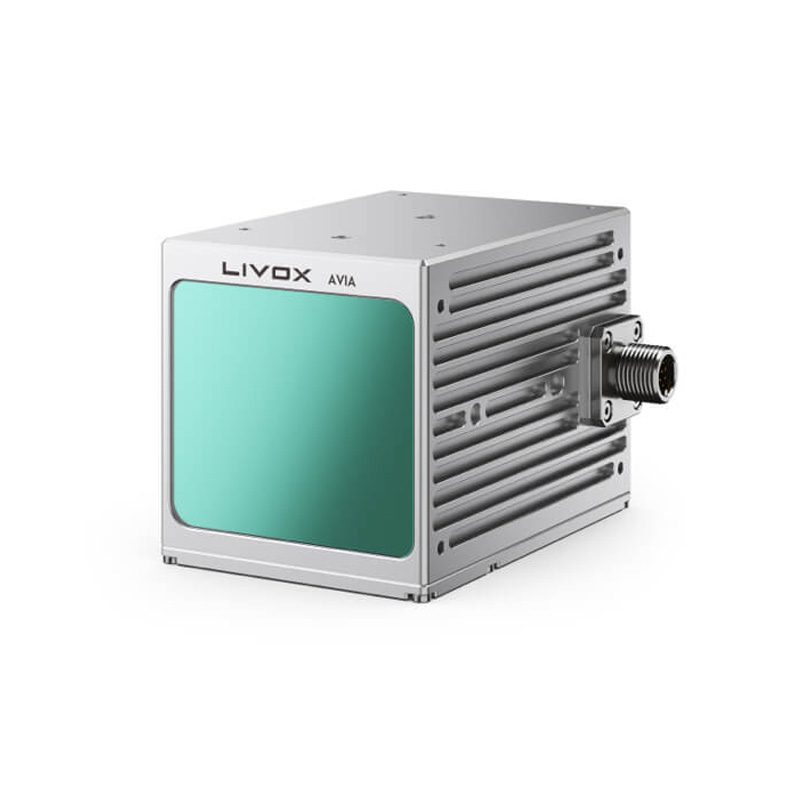

Livox Avia LiDAR v1.0 - 905nm, 70.4°×77.2° FOV, Triple Echo, IP67 - Image 2
SKU: SENS-1456
📋 GST Invoice Available

Livox Avia LiDAR v1.0 - 905nm, 70.4°×77.2° FOV, Triple Echo, IP67

₹242,929.00 (Inclusive of all taxes)
Out of Stock

The Livox Avia LiDAR v1.0 is a high-performance, automotive-grade 905nm LiDAR sensor designed for advanced robotics, autonomous vehicles, and precision mapping applications. It features a wide 70.4°×77.2° non-repetitive scanning field of view, triple-echo detection, and an IP67-rated rugged housing for reliable operation in demanding environments.

Features

  • Extended Detection Range: Up to 450 m at 80% reflectivity, with 190 m at 10% reflectivity for reliable low-reflectivity target acquisition.
  • High-Density Point Cloud: Delivers up to 720,000 points per second in triple-echo mode for detailed environmental mapping.
  • Dual Scanning Modes: Supports both wide 70.4°×77.2° non-repetitive scanning and 70.4°×4.5° repetitive line scanning for application flexibility.
  • Robust Environmental Rating: IP67 sealed construction ensures dustproof and waterproof operation for outdoor and industrial use.
  • Integrated Inertial Measurement: Built-in BMI088 IMU sensor provides real-time pose data to enhance point cloud accuracy.

Out of stock

Description

The Livox Avia LiDAR v1.0 utilizes a 905nm laser source and advanced time-of-flight (ToF) principles to generate precise, high-density 3D point clouds. Its non-repetitive scanning pattern maximizes frame coverage and reduces blind spots, which is critical for dynamic scene perception in autonomous navigation and robotic sensing.

Engineered for system integration, the sensor operates from a 10-15V DC supply (extended to 9-30V DC with the included converter) with an average power consumption of 8-9W. The compact, IP67-rated aluminum housing protects the internal optics and electronics from dust and water ingress, ensuring stable performance across a wide operating temperature range. The integrated BMI088 IMU provides accelerometer and gyroscope data, enabling motion compensation for the point cloud output.

Key Features

  • High-Precision Ranging: Achieves a range precision of ±2 cm, enabling accurate object detection and localization.
  • Triple-Echo Technology: Capable of receiving up to three return signals per laser pulse, allowing for penetration through semi-transparent obstacles like foliage or glass.
  • Low Power Operation: Optimized for efficient performance with an average operational power draw of 8-9W, suitable for mobile and vehicle platforms.
  • Durable Aluminum Construction: The robust housing provides mechanical strength and effective heat dissipation for long-term reliability.
  • Flexible Power Input: Includes a power converter (Adapter 2.0) to accept a wide 9-30V DC input range, compatible with common automotive and robotic power systems.
  • Comprehensive Data Output: Provides rich point cloud data via Ethernet interface, suitable for integration with ROS, Autoware, and other autonomous driving stacks.

Applications

  • Autonomous Vehicle Perception: Providing high-resolution, real-time 3D environmental mapping for ADAS and self-driving car navigation systems.
  • Robotic Navigation and SLAM: Enabling mobile robots and UAVs to perform simultaneous localization and mapping in complex, unstructured environments.
  • Infrastructure Inspection: Precise volumetric measurement and structural monitoring for construction sites, mining operations, and power line inspections.
  • High-Definition Mapping: Generating detailed topographic maps and digital twins for urban planning, forestry, and agricultural management.
  • Security and Surveillance: Perimeter monitoring and intrusion detection with accurate long-range object tracking capabilities.

Technical Specifications

ModelLivox Avia LiDAR v1.0
Detection RangeUp to 450 m @ 80% reflectivity; 260 m @ 20%; 190 m @ 10%
Field of View (FOV)70.4° (H) × 77.2° (V) non-repetitive; 70.4° × 4.5° repetitive
Point RateUp to 720,000 points/s (triple return)
Laser Wavelength905 nm
Range Precision±2 cm
Power Supply10–15 V DC (9–30 V DC with Converter 2.0)
Avg. Power Consumption8–9 W
Peak Power (Startup)16 W
IP RatingIP67 (Dustproof & Waterproof)
Integrated IMUBMI088
Dimensions (L×W×H)91 × 61.284 × 88 mm
Weight0.088 kg

Frequently Asked Questions

What is the operating voltage range for the Livox Avia LiDAR v1.0?

The sensor's native operating voltage is 10-15V DC. However, the included Power Adapter 2.0 expands the compatible input range to 9-30V DC, making it suitable for direct integration with 12V automotive systems or 24V industrial robotic platforms without an additional voltage regulator.

What do the dual scanning modes (non-repetitive and repetitive) enable?

The non-repetitive scanning mode (70.4°×77.2° FOV) provides a wide, pyramid-shaped scan pattern ideal for general environmental perception and SLAM. The repetitive line scanning mode (70.4°×4.5° FOV) concentrates points into a denser horizontal line, which is optimal for applications like ground profiling, lane marking detection, or object classification at longer ranges.

How does the triple-echo feature benefit perception systems?

Triple-echo capability allows the LiDAR to receive up to three distinct return signals from a single laser pulse. This enables the sensor to 'see through' semi-transparent objects like leaves, rain, or fog, and to accurately detect the true background behind them. It significantly improves reliability in complex environments by providing multiple data points per line of sight.

What is the role of the built-in IMU (BMI088) in this LiDAR?

The integrated BMI088 IMU provides real-time accelerometer and gyroscope data. This inertial data is timestamp-synchronized with the point cloud, allowing the host system to perform motion compensation. This correction is crucial for applications on moving platforms (like cars or drones) to de-skew point clouds and maintain accurate spatial registration, especially during rapid turns or vibrations.

Is the Livox Avia suitable for outdoor use in harsh weather?

Yes, the sensor is built for harsh environments. Its IP67 rating guarantees protection against dust ingress and temporary immersion in water up to 1 meter deep. Combined with its robust aluminum housing, this makes the Avia LiDAR v1.0 suitable for continuous outdoor operation in rain, snow, and dusty conditions commonly encountered in automotive and industrial field applications.

Package Includes

  • 1 x Livox Avia LiDAR v1.0 Sensor
  • 1 x Power Adapter 2.0
  • 1 x Lens Cleansing Cloth
  • 1 x Hexagon L Wrench
  • 1 x Wire Package

Additional Information

Weight 0.088 kg
Dimensions 9.1 × 6.1284 × 8.8 cm
