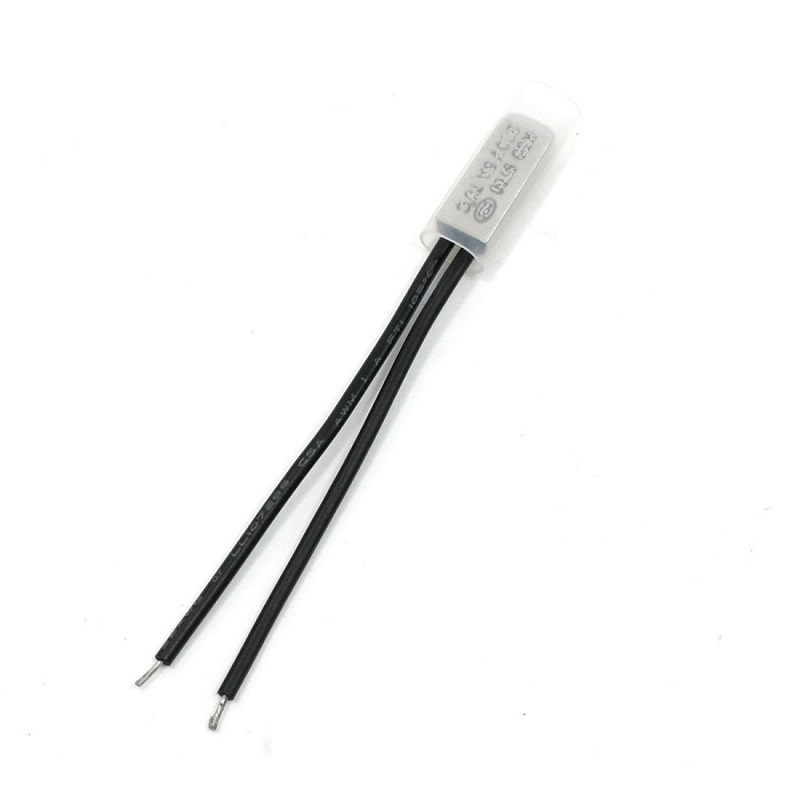

KSD9700/BK05-BB1D Metallic Shell Temperature Control Switch 95C Normally Open - 5A 250V
The KSD9700/BK05-BB1D is a metallic shell, snap-action thermal switch designed for over-temperature protection in electrical appliances, power supplies, and industrial equipment. It operates as a normally open (NO) switch that closes at its 95°C set point, rated for 5A at 250V AC/DC.
Features
- Metallic shell construction for robust thermal conduction and durability.
- Normally open (NO) contact configuration closes at the 95°C set point.
- Rated for 5A load current at 250V AC or DC.
- Snap-action bimetal disc ensures reliable, fast switching.
- Compact design with integrated 7cm lead wires for easy installation.
Out of stock
The KSD9700/BK05-BB1D is a bimetallic disc thermal switch housed in a metallic shell for efficient heat transfer and mechanical strength. The switch remains open under normal operating conditions and snaps closed when the surrounding temperature reaches its calibrated set point of 95°C, completing the circuit to activate an alarm, cut-off, or safety shutdown sequence.
This device provides a simple, non-resettable over-temperature protection solution without requiring external power. Its sealed metallic housing offers good environmental resistance, making it suitable for integration into motor windings, transformers, battery packs, and heating elements where reliable thermal cutoff is critical.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
