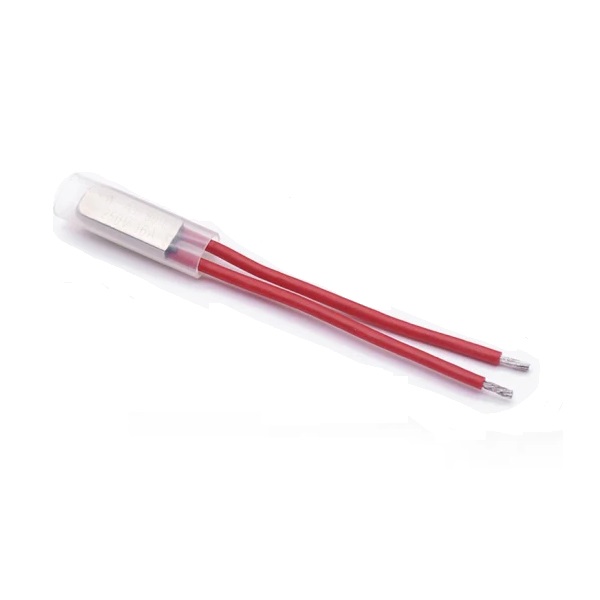

KSD9700/BK05-BB1D Metallic Shell Temperature Control Switch - 95°C NC, 10A 250V
The KSD9700/BK05-BB1D is a metallic shell temperature control switch (thermostat) with a 95°C normally closed (NC) action, rated for 10A at 250V AC. It provides reliable over-temperature protection for a wide range of electrical appliances, power tools, and heating systems by automatically opening the circuit upon reaching its calibrated setpoint.
Features
- Metallic shell construction for durability and effective thermal conduction.
- Normally Closed (NC) contact opens at 95°C (±5°C typical) to cut power.
- High current rating: 10A at 250V AC for robust circuit protection.
- Compact design with integrated 7cm lead wires for easy installation.
- Bimetallic snap-action disc ensures reliable, repeatable switching.
Out of stock
The KSD9700/BK05-BB1D is a bimetallic disc-type thermostat housed in a metallic shell, designed to function as an automatic thermal cut-off switch. When the ambient temperature around its shell reaches the calibrated setpoint of 95°C, the bimetallic element snaps, mechanically opening the normally closed (NC) contacts to interrupt the current flow. This action protects motors, transformers, heaters, and other components from damage due to overheating.
Its metallic housing ensures fast thermal response and robust physical protection. The switch is pre-wired with 7cm insulated leads, simplifying integration into existing wiring. After the temperature drops below the reset point (typically 15-25°C below the trip point), the contacts automatically re-close, restoring circuit operation without manual intervention.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
