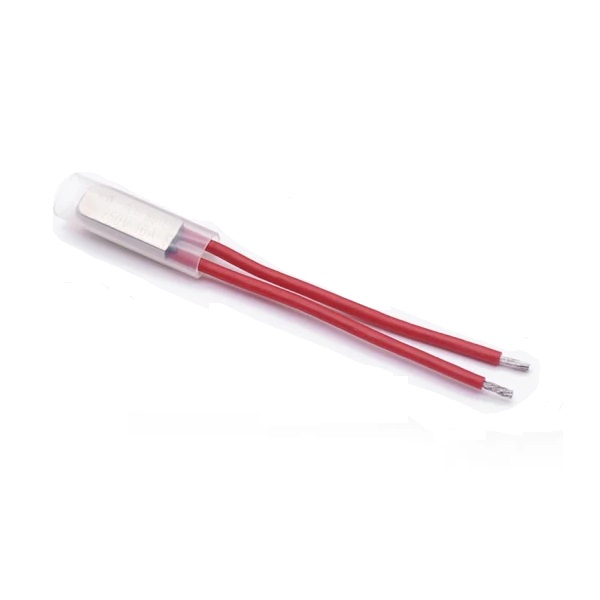

KSD9700/BK05-BB1D Metallic Shell Temperature Control Switch 145C NC - 10A 250V
The KSD9700/BK05-BB1D is a metallic-shell, snap-action thermal switch rated for 10A at 250V AC/DC, with a fixed 145°C normally closed (NC) set point. It provides reliable over-temperature protection for motors, transformers, and power supplies by opening the circuit upon reaching its calibrated temperature.
Features
- Fixed 145°C normally closed (NC) snap-action thermal switch.
- High current rating of 10A at 250V AC/DC for robust circuit protection.
- Durable metallic shell construction for mechanical strength and thermal conductivity.
- Pre-calibrated, non-adjustable set point for consistent, maintenance-free operation.
- Compact design with integrated 7cm lead wires for easy installation.
Out of stock
The KSD9700/BK05-BB1D is a bimetallic disc-type thermal switch designed for automatic over-temperature protection. When the ambient temperature reaches its factory-calibrated 145°C set point, the internal bimetallic disc snaps, mechanically opening the normally closed contacts to interrupt power to the protected circuit. This action prevents damage to sensitive components from excessive heat.
Housed in a robust metallic shell, the switch offers excellent thermal response and durability in demanding environments. The 7cm insulated lead wires facilitate straightforward wiring into control panels, motor windings, or power supply units. Its fixed, non-resettable design ensures a fail-safe thermal cutoff, requiring manual replacement after activation.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 7 × 1 cm |
