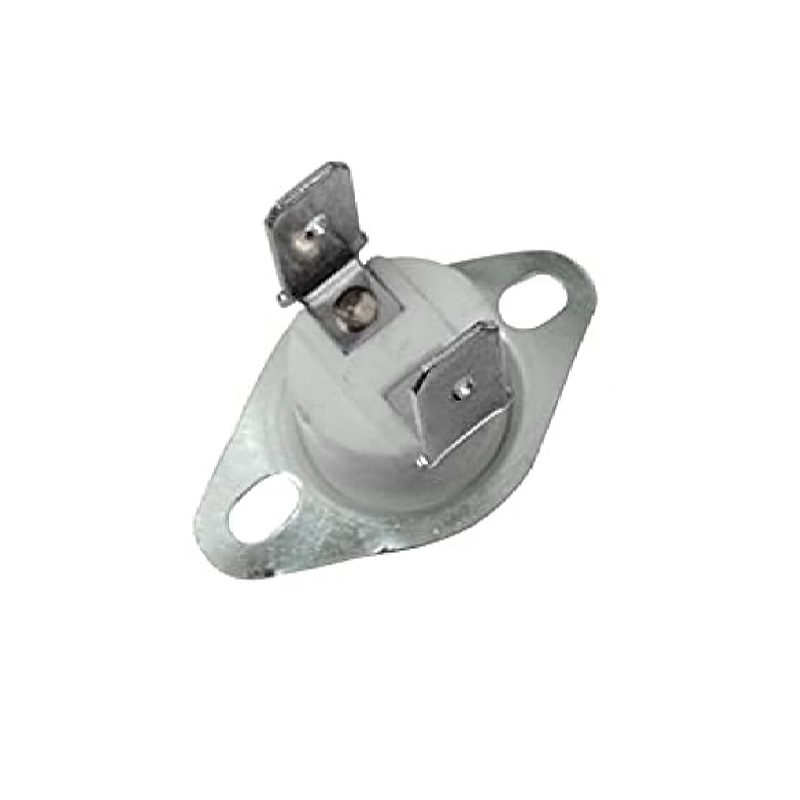

KSD301 Ceramic Temperature Controlled Switch Thermostat - Normally Closed NC, 90°C, 250V 10A
The KSD301 is a normally closed (NC) ceramic thermostat switch rated for 250V AC/DC and 10A, designed to open its contacts at its calibrated 90°C set point. This compact, fixed-temperature switch provides reliable over-temperature protection for appliances, power supplies, and heating elements.
Features
- Fixed 90°C (194°F) normally closed (NC) bimetallic snap-action switch
- High-current 10A rating at 250V AC/DC for direct load control
- Robust ceramic housing for electrical insulation and thermal stability
- Compact and lightweight design for easy integration into appliances
- Simple two-wire installation for over-temperature protection circuits
Out of stock
The KSD301 is a bimetallic disc thermostat housed in a durable ceramic package. It operates on a snap-action principle: when the ambient temperature reaches its factory-calibrated 90°C set point, the bimetallic disc deflects, instantly opening the normally closed (NC) contacts to break the circuit. This provides fail-safe thermal protection.
Its ceramic construction offers excellent electrical insulation and withstands high temperatures, making it suitable for direct mounting on hot surfaces like heater blocks, motor housings, or within power enclosures. The device is a cost-effective, maintenance-free solution for applications requiring a fixed cut-off point.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 9 × 6 × 3 cm |
