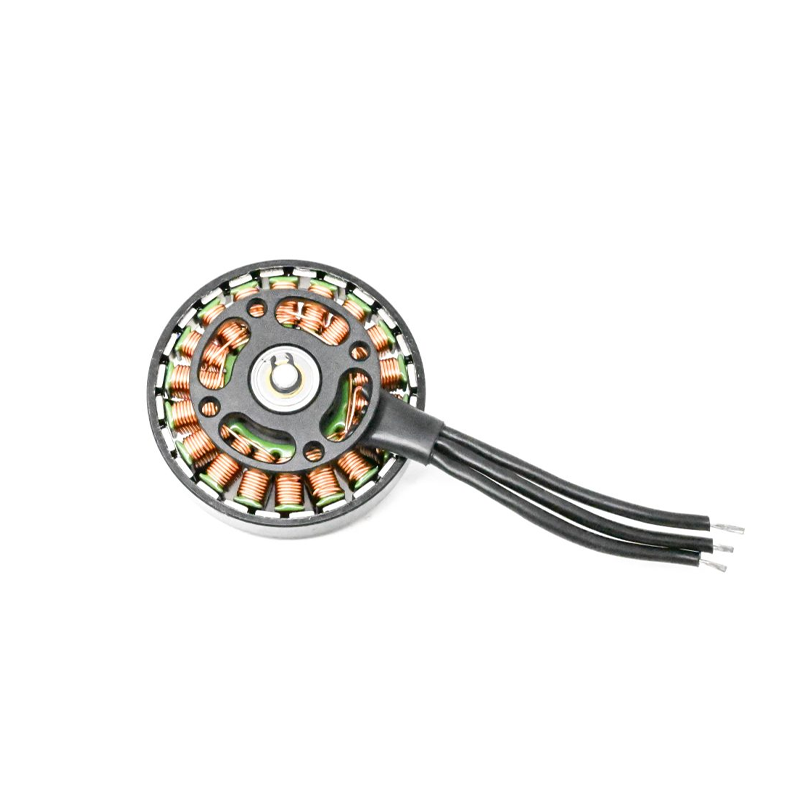

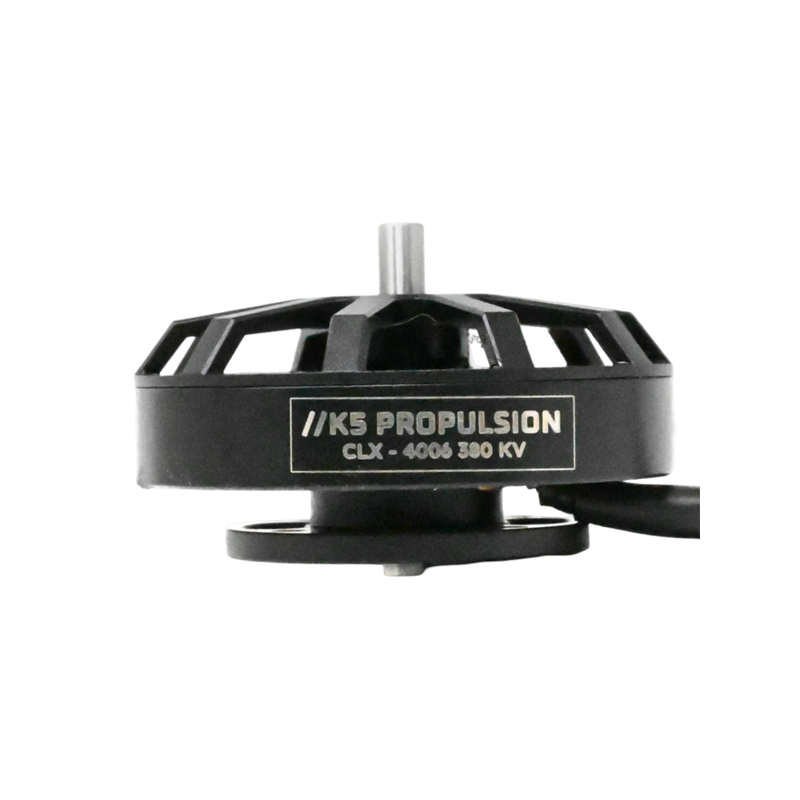

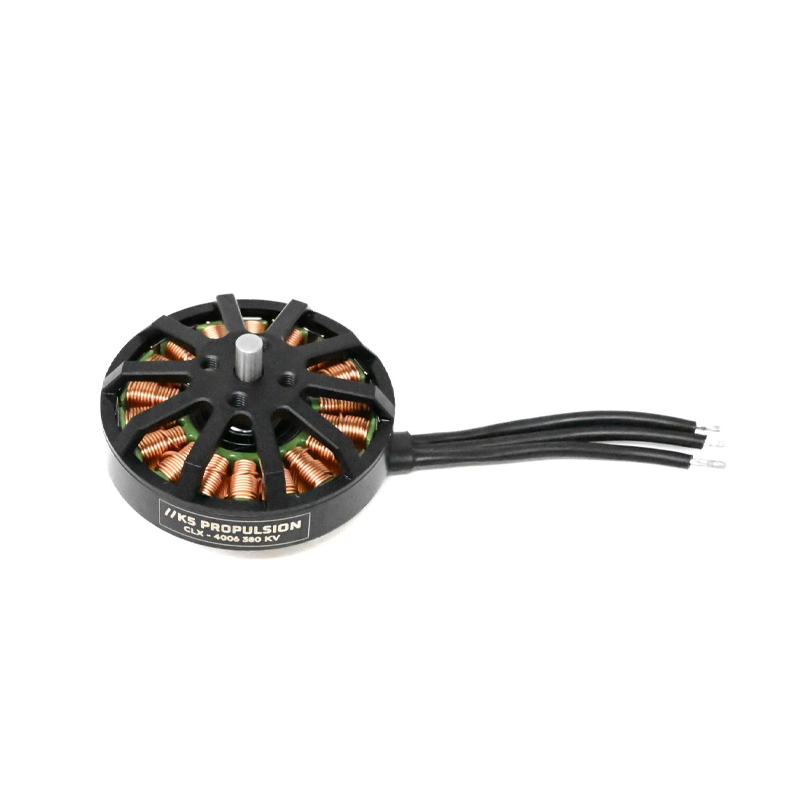

K5 Propulsion CLX 4006 380KV Brushless Motor - 2-Pack
The K5 Propulsion CLX 4006 is a 380KV brushless motor engineered for 4S-6S LiPo-powered drones, delivering up to 2400g of thrust per motor on a 6S setup. Its 18N24P configuration and efficient design provide smooth, reliable power for heavy-lift and high-performance multirotor applications.
Features
- Delivers up to 2400g of maximum thrust per motor on a 6S LiPo battery setup.
- 380KV rating optimized for high efficiency and precise control on 4S-6S voltage ranges.
- Compact 44.5mm diameter x 20mm height design with a lightweight 69g per motor weight.
- Features an 18N24P stator configuration, a 4mm shaft diameter, and universal M3 mounting holes.
- Rated for 380W max power and 16A peak current, with an idle current of 0.35A.
Out of stock
The K5 Propulsion CLX 4006 380KV brushless motor is built for demanding aerial platforms requiring a balance of power, efficiency, and durability. Its 18N24P electromagnetic design minimizes cogging for smooth rotation, while the low internal resistance of 190mΩ enhances electrical efficiency, reducing heat buildup during sustained high-load operation.
With a maximum power rating of 380W and compatibility with 4S to 6S LiPo batteries, this motor is engineered to handle the rigorous demands of heavy-lift photography drones, large FPV platforms, and industrial multirotors. The robust 4mm shaft and universal mounting pattern ensure secure integration into a wide variety of frame designs.
Additional Information
| Weight | 0.185 kg |
|---|---|
| Dimensions | 11 × 8 × 7 cm |
