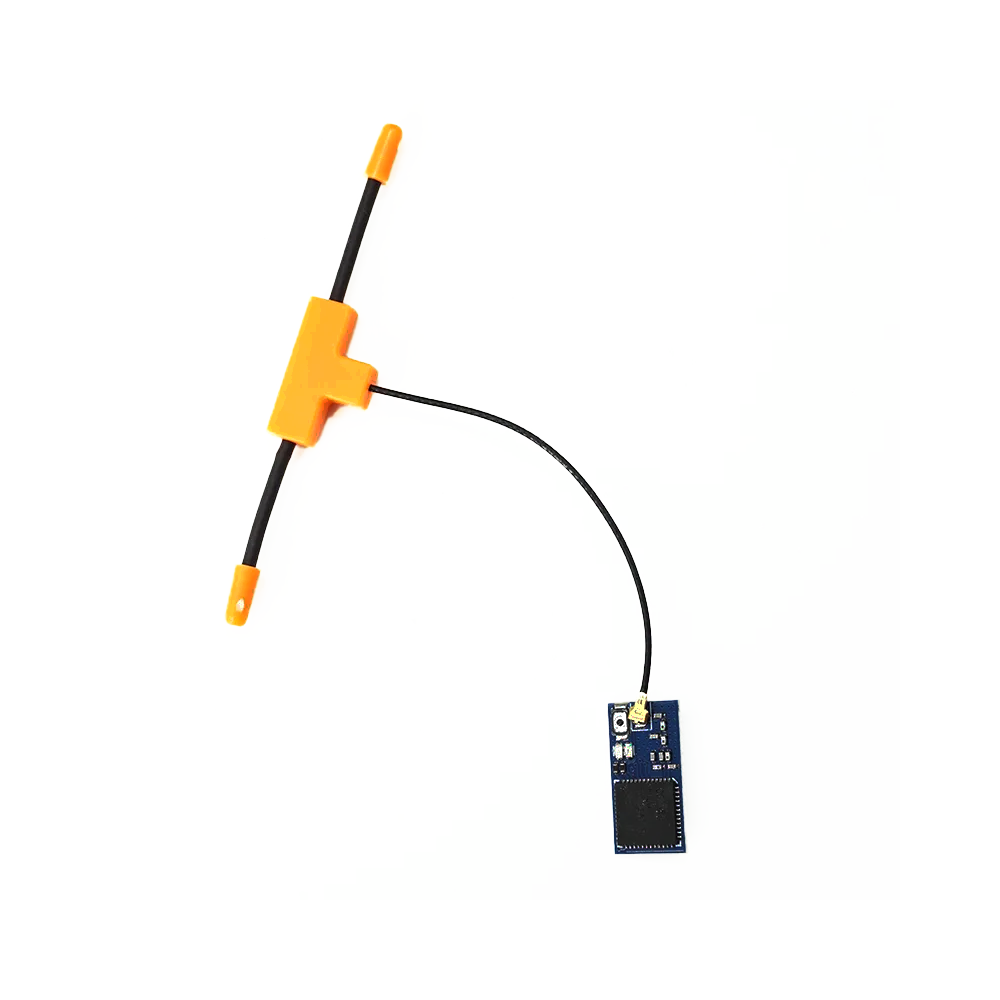

Jumper R1 V2 Mini D16 Receiver
The Jumper R1 V2 Mini D16 receiver is a compact, ultra-lightweight telemetry receiver designed for integration into tight FPV drone builds, offering 16-channel control and a reliable range exceeding 2km when paired with compatible D16 mode transmitters.
Features

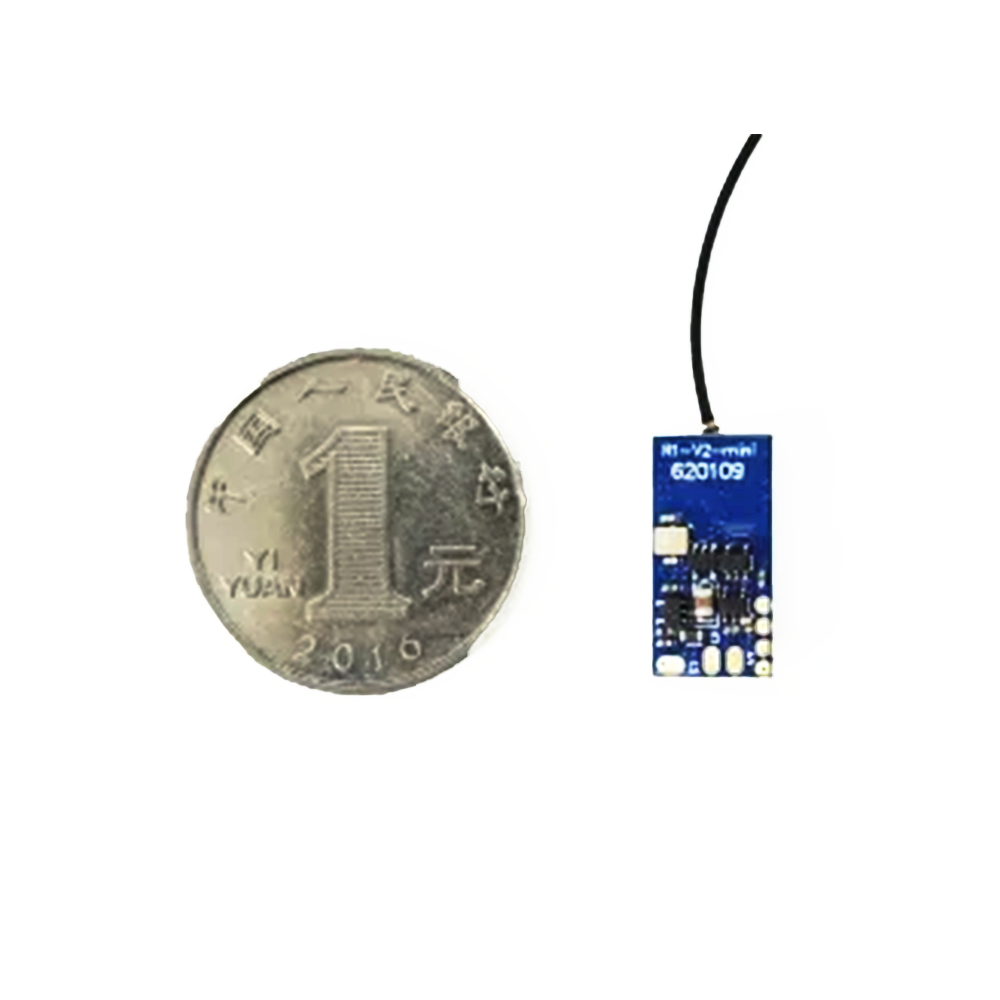

- Ultra-compact footprint measuring 17.2 x 8.8 x 4.5mm (LxWxH) for tight builds.
- Extremely lightweight at 1.5g, minimizing impact on drone flight performance.
- Provides 16-channel telemetry and control for complex multirotor setups.
- Wide operating voltage range from 3.5V to 6V, compatible with most FPV power systems.
- Reliable full-range operation with a tested distance capability of over 2 kilometers.
Out of stock
The Jumper R1 V2 Mini D16 receiver is engineered for pilots seeking a reliable, full-featured telemetry link without adding significant weight or bulk. Its core design prioritizes a minimal footprint and low current draw, making it an ideal choice for micro and mini FPV quads where space and efficiency are critical. The receiver operates on the robust D16 protocol, ensuring stable control and telemetry feedback over long distances.
Built with a focus on integration, the receiver’s low-profile design allows for flexible mounting within a drone’s frame. The wide input voltage tolerance supports direct connection to regulated 5V BECs or raw LiPo battery inputs via a voltage regulator, providing versatility across different drone power architectures. This combination of size, weight, and performance makes it a dependable component for racing, freestyle, and long-range FPV applications.
Additional Information
| Weight | 0.0015 kg |
|---|---|
| Dimensions | 1.72 × 0.88 × 0.45 cm |
