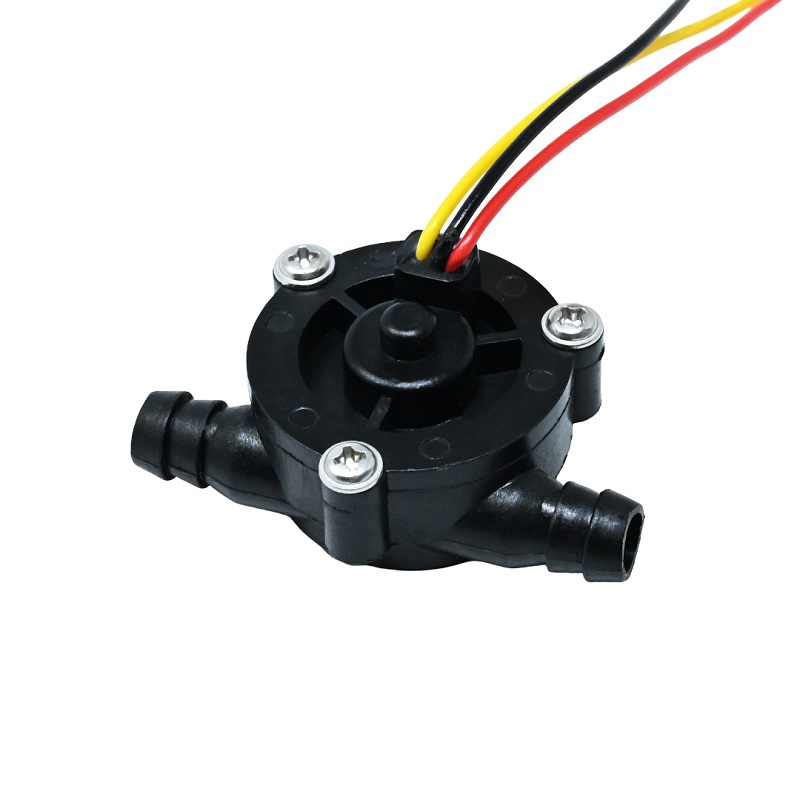

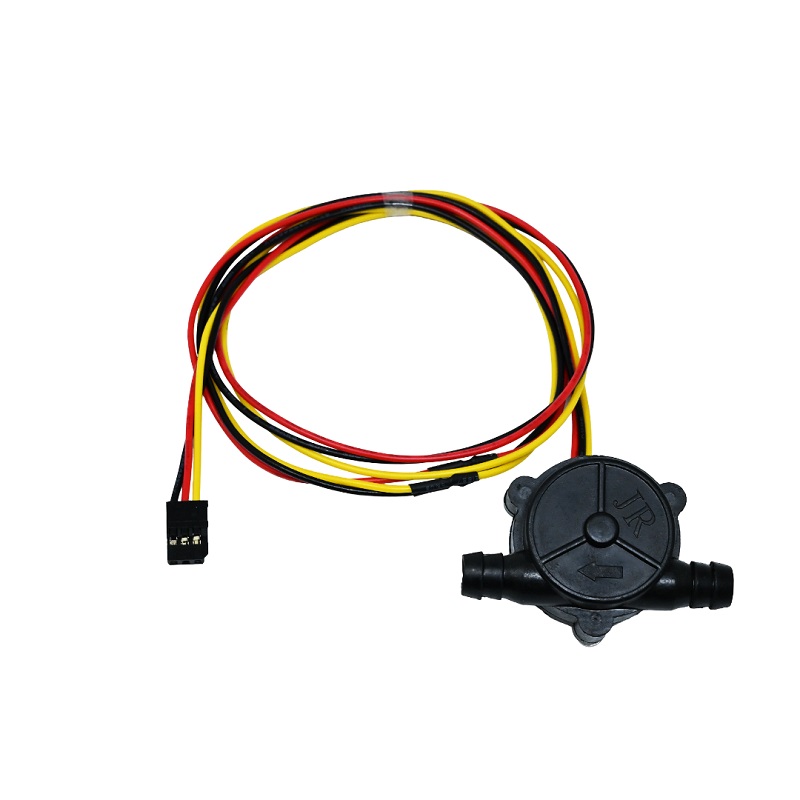

Jiyi Flowmeter - NPN Pulse Output, 0.2-6 L/min, 5-24V DC
The Jiyi Flowmeter is a compact, non-intrusive flow sensor delivering NPN pulse output for precise flow rate monitoring of water and compatible fluids. It operates from a 5-24V DC supply, making it suitable for integration with PLCs, Arduino, and industrial control systems.
Features
- NPN Pulse Signal Output for direct microcontroller/PLC interfacing.
- Wide operating voltage range from 5V to 24V DC.
- Non-intrusive measurement preserves system pressure and fluid integrity.
- ±10% accuracy across a 0.2 to 6 liters per minute flow range.
- Fast 0.2-second response time for real-time flow monitoring.
Out of stock
The Jiyi Flowmeter employs a non-intrusive sensing principle, typically using a turbine or Hall-effect mechanism, to generate a pulse signal proportional to fluid flow without obstructing the pipe. This design minimizes pressure drop and is suitable for clean water and low-viscosity fluid applications.
It outputs a clean NPN open-collector pulse signal, easily interfaced with digital inputs on microcontrollers, PLCs, or frequency counters. The sensor is rated for a working water pressure of 0.1 to 0.35 MPa and connects via an 8-10mm outer diameter interface for standard tubing.
Additional Information
| Weight | 0.034 kg |
|---|---|
| Dimensions | 12 × 9 × 4 cm |
