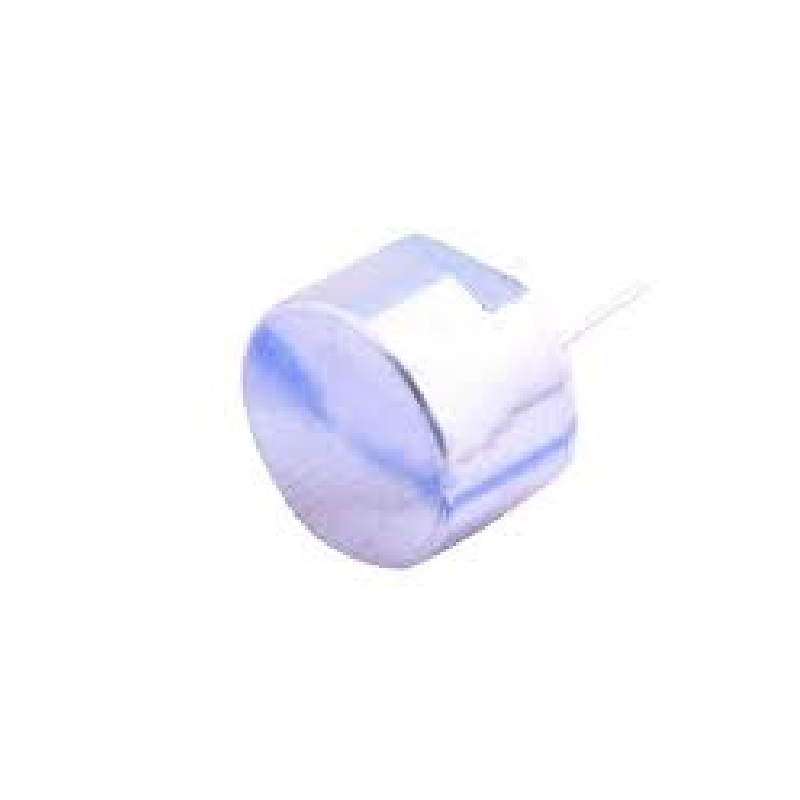

INGHAI GU1410A-40TR Sealed Type 40kHz Ultrasonic Receiver & Transmitter
The INGHAI GU1410A-40TR is a sealed, plugin-type ultrasonic transducer pair operating at a nominal 40kHz frequency. Designed for robust environmental resistance, it is suitable for integration into industrial distance measurement, object detection, and liquid level sensing systems requiring reliable acoustic wave generation and reception.
Features
- Sealed, plugin-type construction for environmental protection.
- Nominal operating frequency of 40kHz for ultrasonic ranging applications.
- Wide operating temperature range from -40°C to +80°C.
- Maximum voltage rating of 140V for driving the transmitter element.
- ROHS compliant, lead-free construction.
Out of stock
The GU1410A-40TR comprises a matched ultrasonic transmitter and receiver pair, engineered for precise acoustic wave generation and echo detection. Its sealed housing protects the piezoelectric ceramic elements from dust, moisture, and environmental contaminants, ensuring stable performance in demanding industrial settings.
Operating on the principle of piezoelectric transduction, the device converts electrical pulses into high-frequency sound waves and vice-versa. This makes it a core component in time-of-flight (ToF) distance measurement systems, where the delay between transmitted pulse and received echo is calculated to determine range. The specified 40kHz frequency is optimal for balancing resolution, range, and immunity to ambient audible noise.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 8 × 3 cm |
