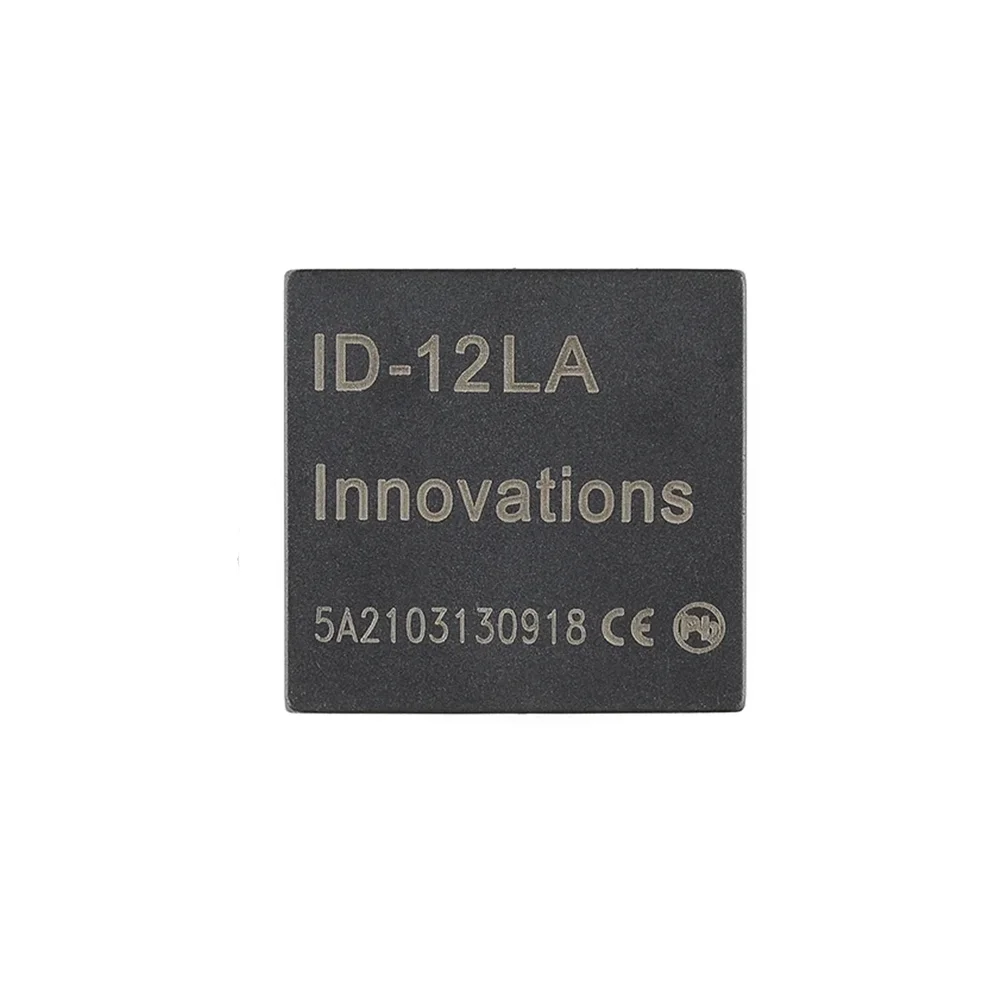

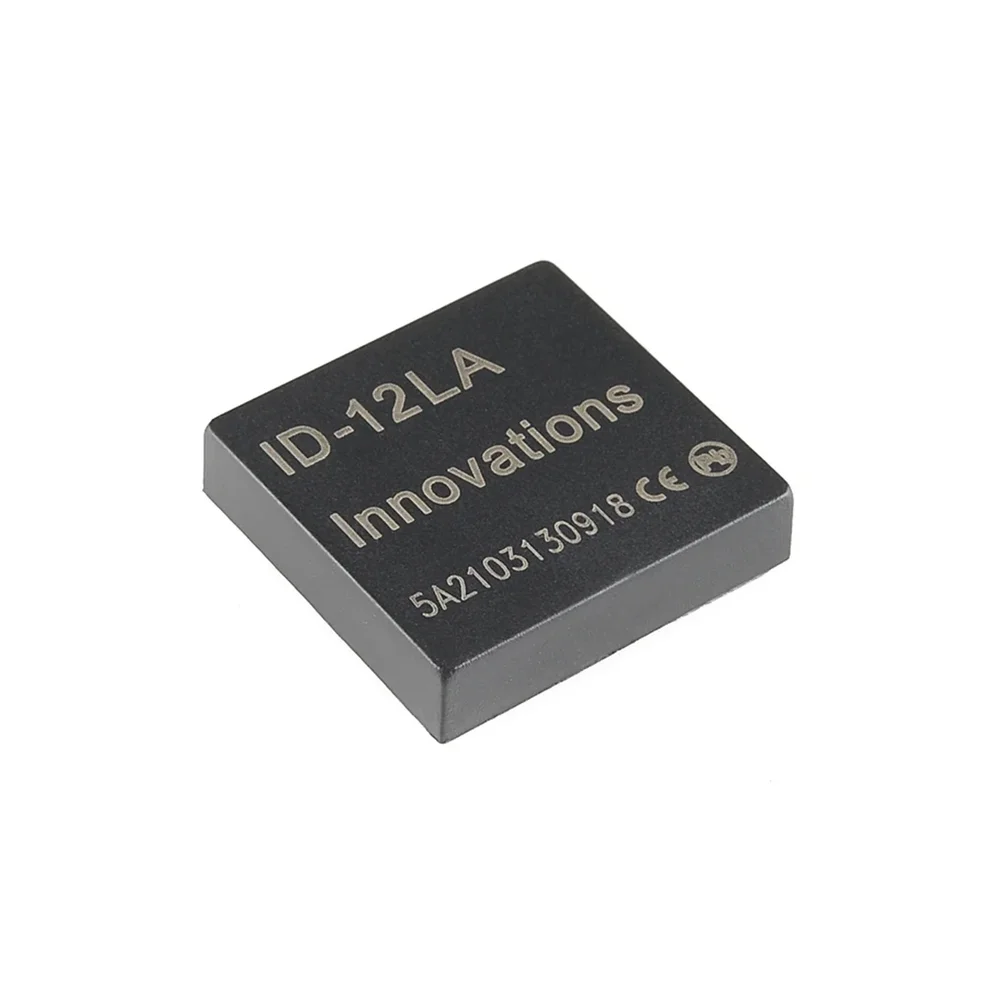

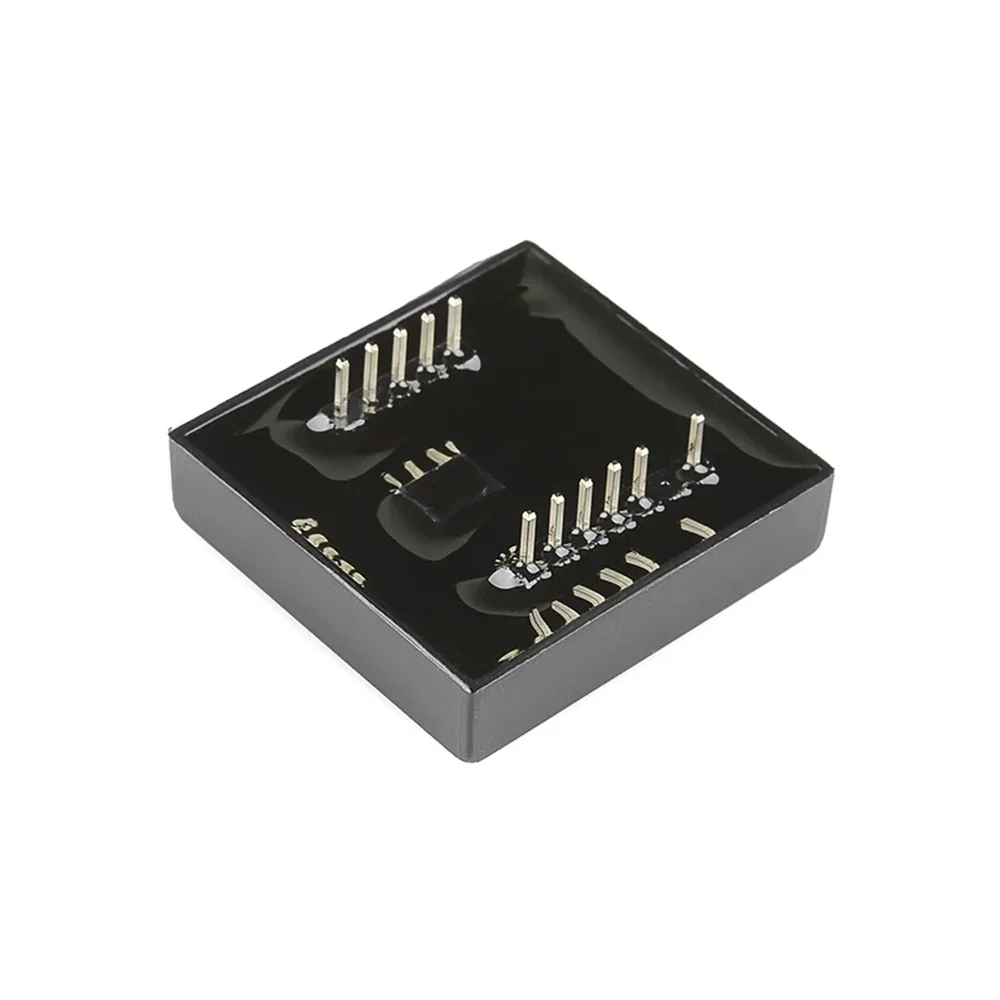

ID-Innovations ID-12LA RFID Reader Module - 125kHz, EM4001 Compatible
The ID-12LA is a compact 125kHz RFID reader module compatible with EM4001 tags, offering a read range up to 120mm. It operates from 2.8V to 5V DC, making it suitable for integration with Arduino, Raspberry Pi, ESP32, and other 3.3V/5V microcontroller systems for access control and asset tracking.
Features
- 125kHz RFID reader module for EM4001-compatible tags with up to 120mm range.
- Wide 2.8V to 5V DC operating voltage supports 3.3V and 5V logic systems.
- Outputs serial data in multiple formats: ASCII, Wiegand26, and ABA Track2.
- Low power consumption (35mA typical) ideal for portable and battery-powered applications.
- Compact 25 x 25 x 10 mm design with built-in RF decoding for simplified integration.
Out of stock
The ID-12LA RFID Reader Module utilizes a 125kHz inductive coupling principle to read passive EM4001-compatible transponder tags. Its integrated RF front-end and Manchester 64-bit decoder output a clean, formatted serial data stream, reducing the processing burden on the host microcontroller. The module’s robust design ensures stable tag reading within its specified range.
Engineered for reliable performance in embedded systems, the ID-12LA operates across a wide temperature range and features a low-voltage supply, making it adaptable for IoT nodes, portable devices, and industrial automation controllers. Its support for industry-standard output protocols facilitates seamless integration into access control, time attendance, and asset management systems.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 4 × 4 × 2 cm |
